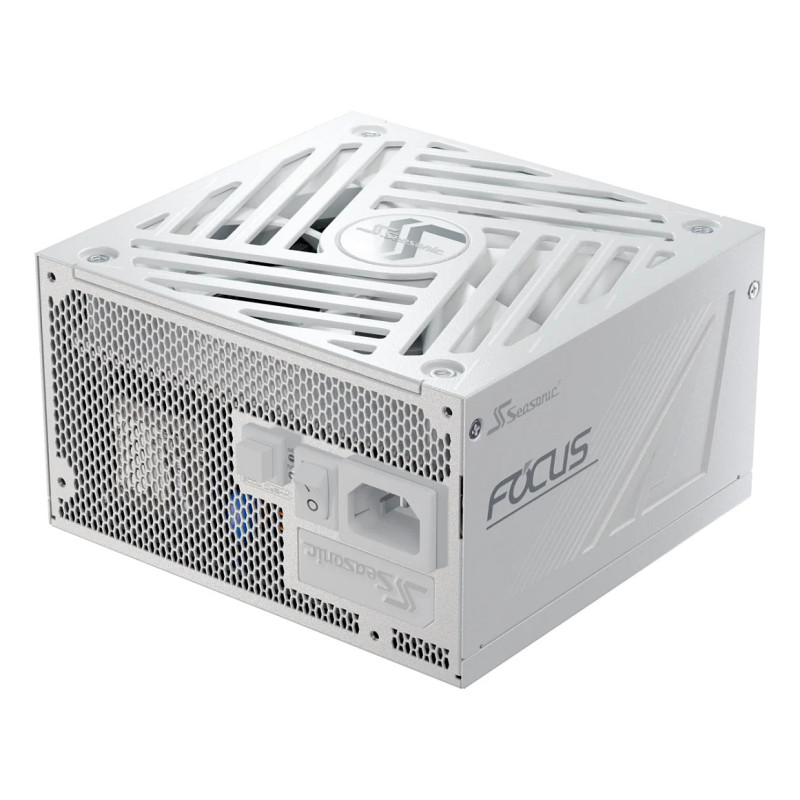

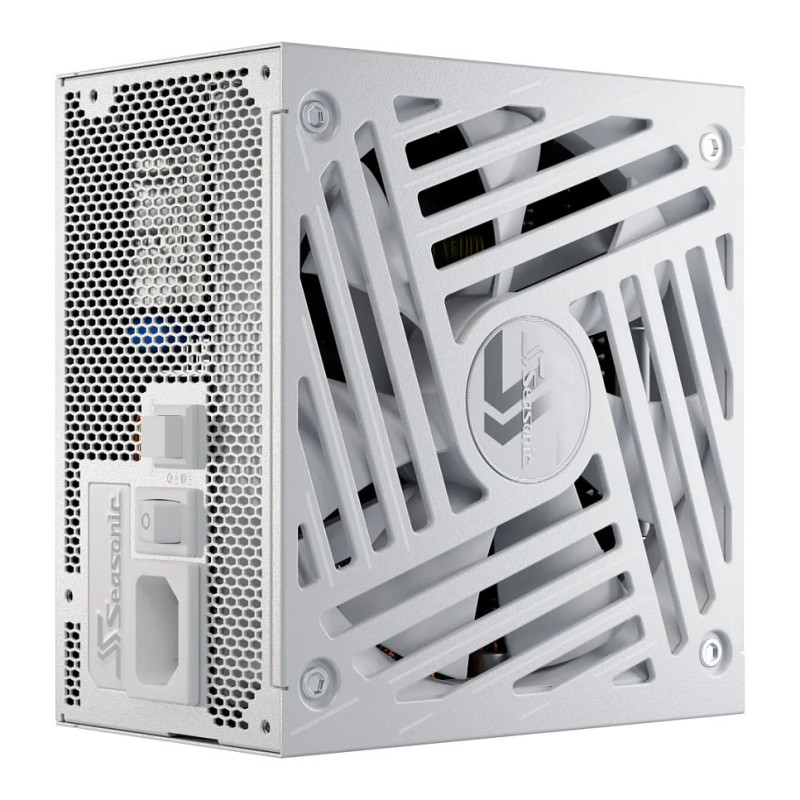

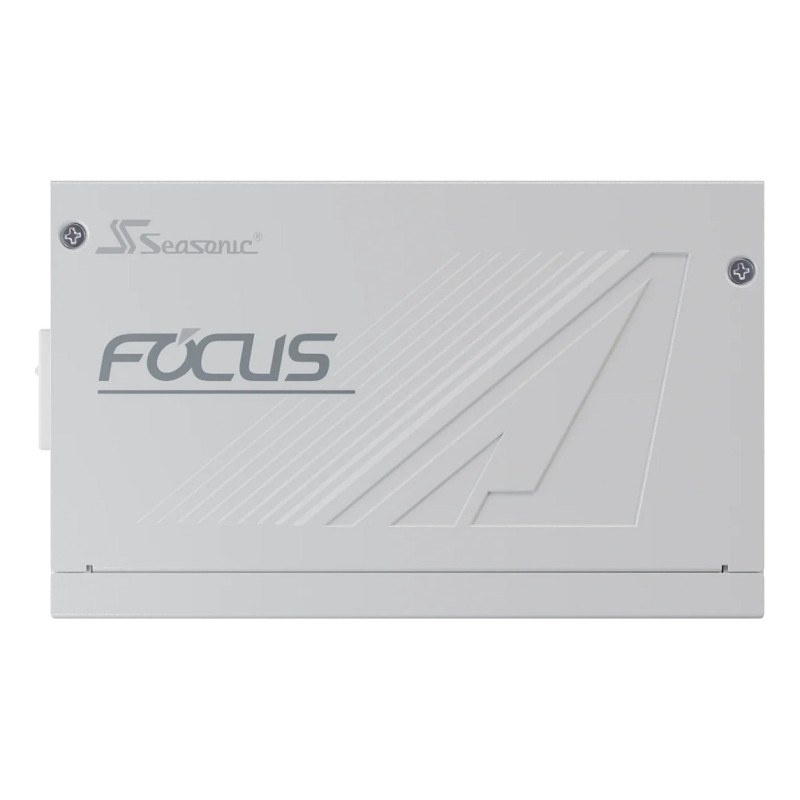

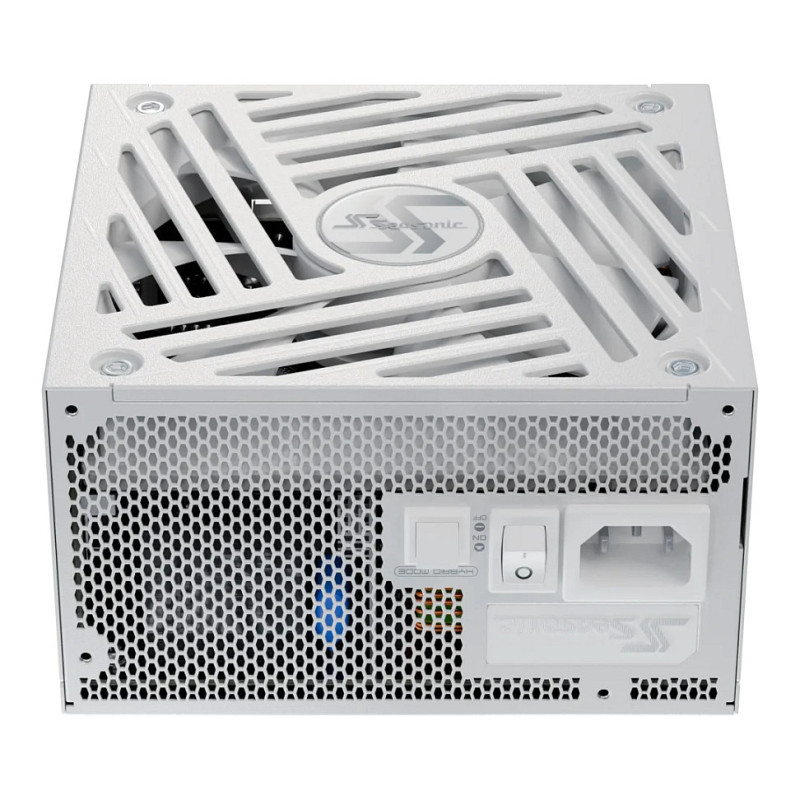

Seasonic Focus GX power supply unit

Seasonic Focus GX. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 950 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: White, Cooling type: Active, Fan diameter: 13.5 cm. Compliance certificates: BSMI, CB, CCC, CE, EAC, Federal Communications Commission (FCC), REACH, RoHS, TÜV mark, cTUVus, Certification: BSMI, CB, CCC, CE, cTUVus, EAC, FCC, TUV, Energy Star, ErP Lot 6, REACH, RoHS, WEEE

Power

Total power: 750 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 10 - 5 A
Combined power (+3.3V): 100 W
Combined power (+12V): 744 W
Combined power (+5V): 100 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V): 62 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

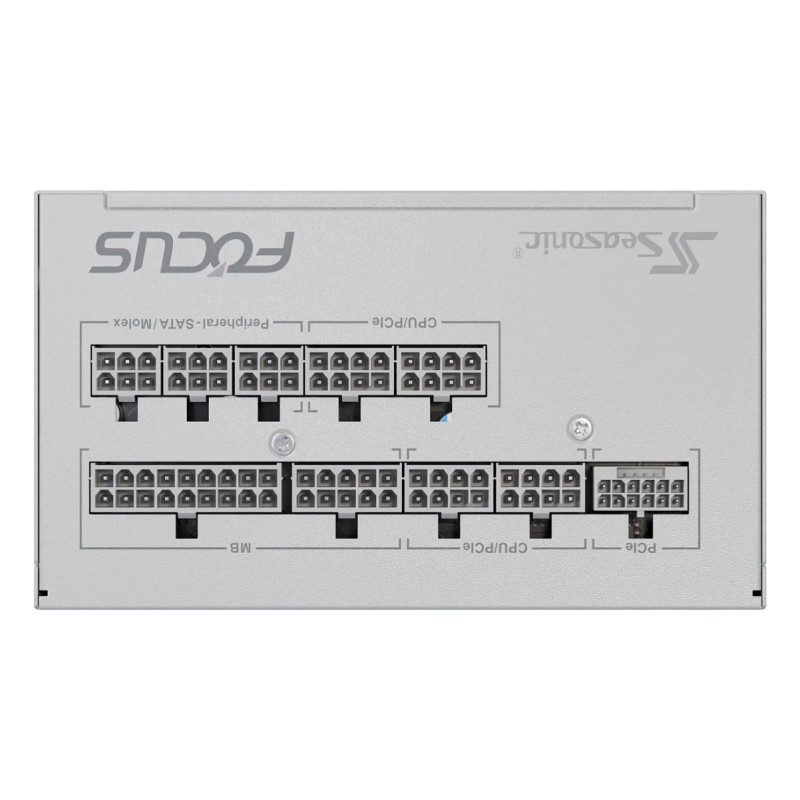

Ports & interfaces

Motherboard power connector: 24-pin ATX
Motherboard power cable length: 61 cm
SATA power cable length: 950 mm
Peripheral (Molex) power cable length: 690 mm
PCI Express power connectors (6+2 pin): 2
PCI Express power connectors (12+4 pin) cable length: 700 mm
PCI Express power cable length: 75 cm
Feature: CPU power connector (4+4 pin)
CPU power cable length: 70 cm
Feature: PCI Express connector

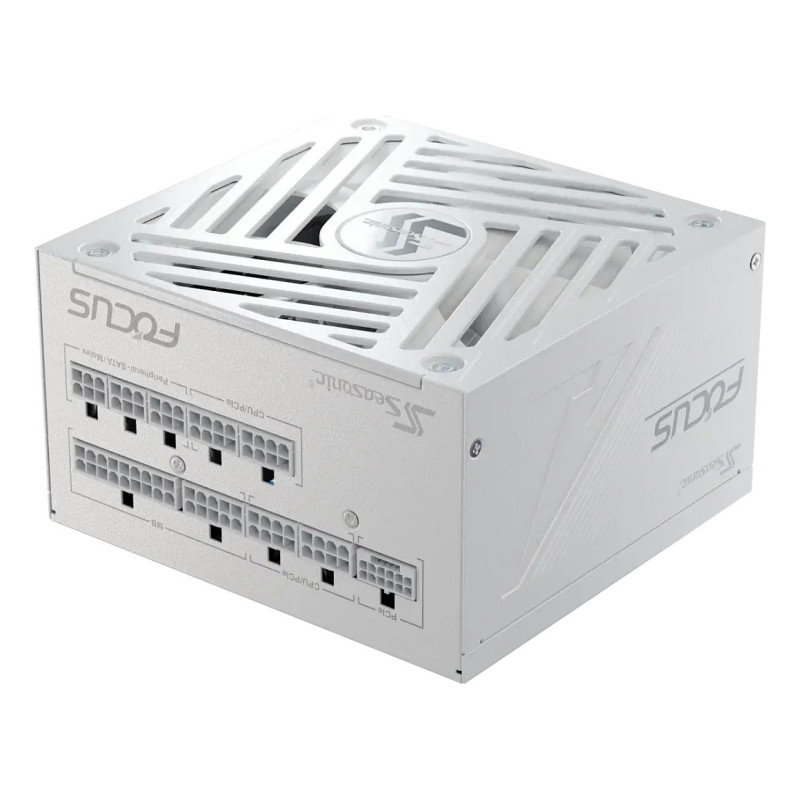

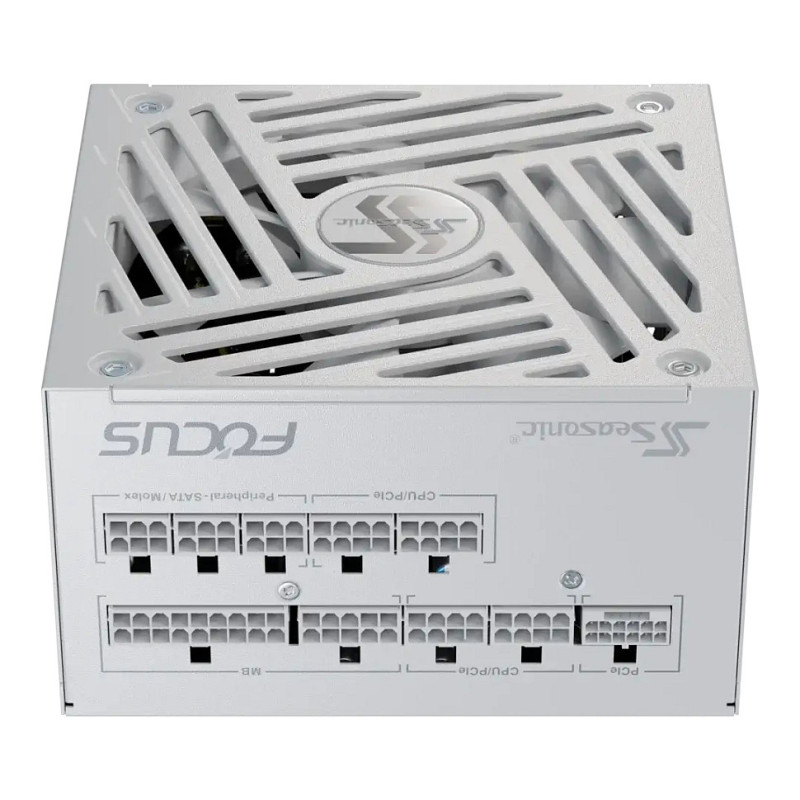

Cabling type: Fully-Modular

Performance

80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Feature: Silent mode
Bearing technology: FDB
Mean time between failures (MTBF): 100000 h

Design

Product colour: White
Cooling type: Active

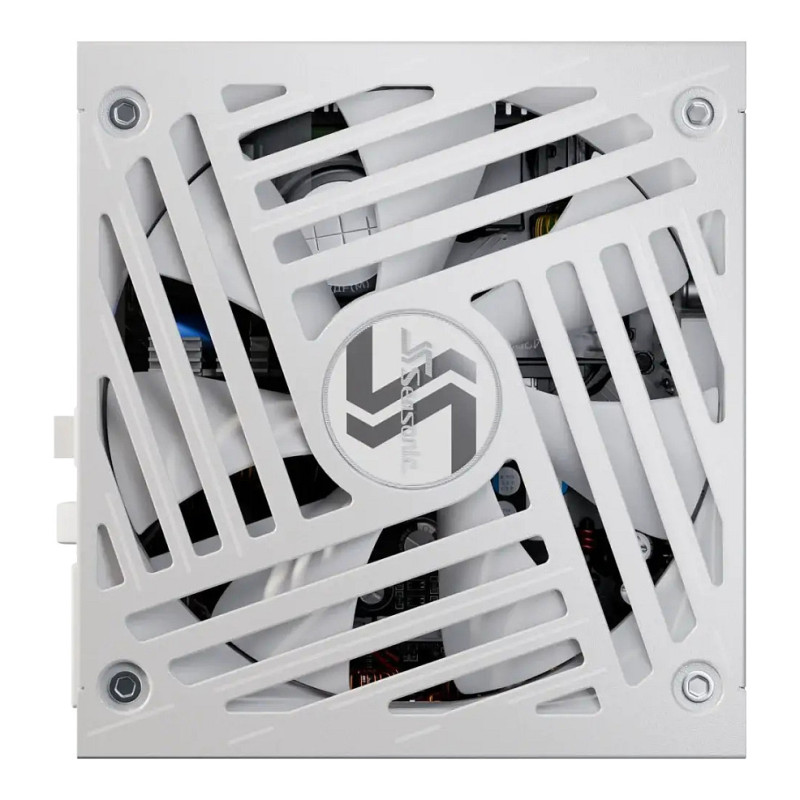

Fan diameter: 13.5 cm
Number of fans: 1 fan(s)
Feature: On/off switch

Operational conditions

Operating temperature (T-T): 0 - 50 °C

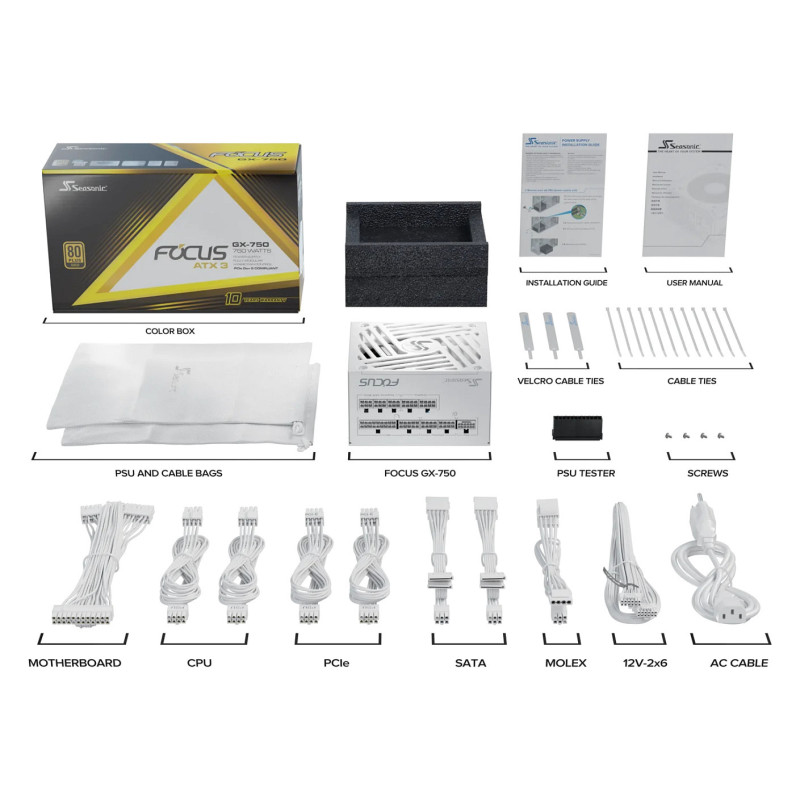

Packaging content

Feature: Cable tie(s) included

Certificates

Feature: Waste Electrical and Electronic Equipment (WEEE) compliance
Compliance certificates: BSMI, CB, CCC, CE, EAC, Federal Communications Commission (FCC), REACH, RoHS, TÜV mark, cTUVus
Certification: BSMI, CB, CCC, CE, cTUVus, EAC, FCC, TUV, Energy Star, ErP Lot 6, REACH, RoHS, WEEE

Weight & dimensions

Width: 150 mm
Depth: 140 mm
Height: 86 mm

Technical details

Feature: Sustainability compliance
Sustainability certificates: ENERGY STAR, ErP
