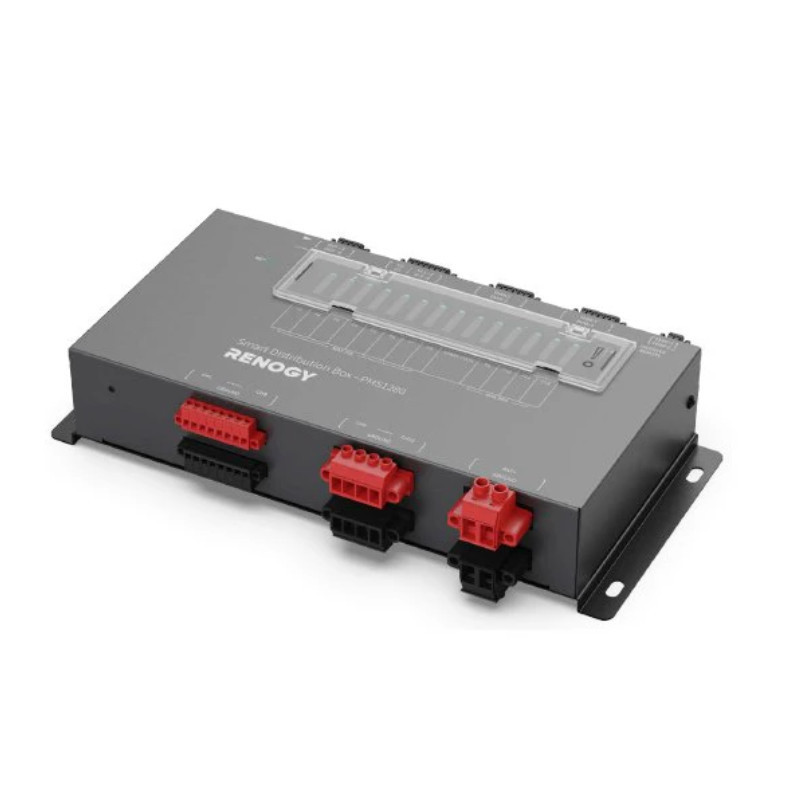

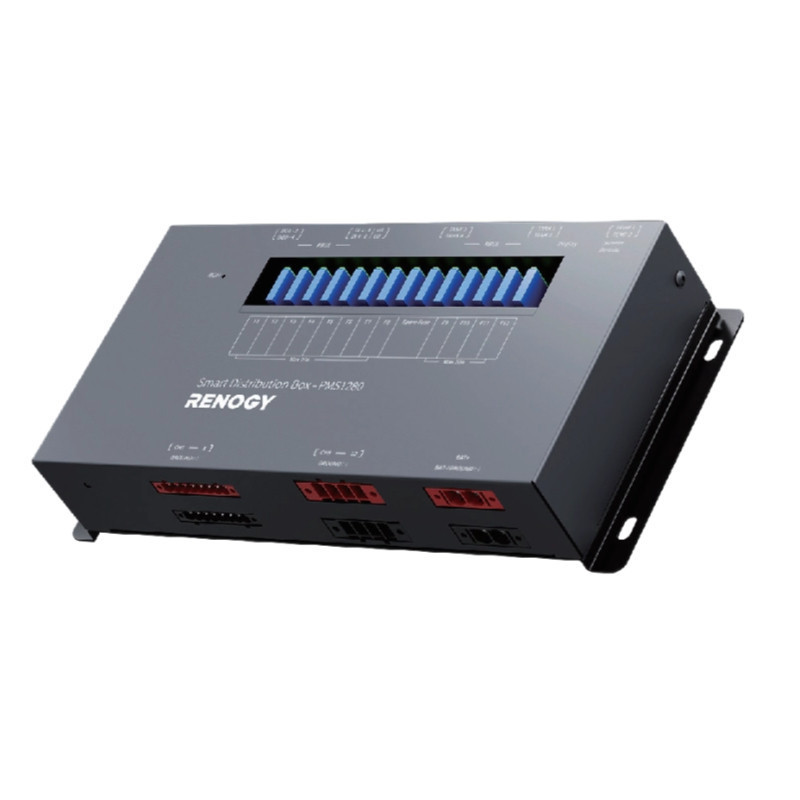

Renogy Smart Distribution Box
Product reference:
39-RSHCB-C02P-G2-DE
The Renogy Smart Distribution Box is a smart DC distribution box for RVs, boats, and off-grid installations that centralizes power and control of 12/24V loads in one place. It works with the Renogy ONE ecosystem (ONE Core / ONE Vision) and the DC Home app, enabling parameter monitoring, alarms, and convenient management of circuits and automations. It supports multiple load channels (including 10A and 20A lines), sensor inputs (e.g., water level, temperature), and diagnostics, simplifying installation, increasing safety, and simplifying daily system maintenance while on the go.
Renogy Smart Distribution Box
Product reference:
39-RSHCB-C02P-G2-DE
The Renogy Smart Distribution Box is a smart DC distribution box for RVs, boats, and off-grid installations that centralizes power and control of 12/24V loads in one place. It works with the Renogy ONE ecosystem (ONE Core / ONE Vision) and the DC Home app, enabling parameter monitoring, alarms, and convenient management of circuits and automations. It supports multiple load channels (including 10A and 20A lines), sensor inputs (e.g., water level, temperature), and diagnostics, simplifying installation, increasing safety, and simplifying daily system maintenance while on the go.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
5 - 8
business days
Renogy Smart Distribution Box (PMS1280) - intelligent DC 12/24V distribution box
Renogy Smart Distribution Box is a smart DC distribution box for RVs, boats and off-grid installations that
centralizes power supply and control of 12/24 V receivers in one place. It works with the Renogy ONE
ecosystem (ONE Core / ONE Vision) and the DC Home app, offering parameter monitoring, alarms, and real-time diagnostics.
Thanks to the support of multiple load channels (10 A and 20 A lines), sensor inputs (e.g., water level, temperature), and the
scene automation function, the switchboard organizes the installation and simplifies daily system operation while on the go.
Key benefits
- Central DC switchboard 12/24 V - organizes the installation and collects control in one point.
- Multi-channel outputs - division into lines 10 A and 20 A for small and larger receivers.
- Voltage and current monitoring - tracking system parameters to reduce the risk of over-discharge and failure.
- Alarms and diagnostics - real-time information about irregularities.
- Sensor support - temperature monitoring (multi-zone) and inputs for sensors/system signals.
- Integration with Renogy ONE - control and viewing from ONE Core/ONE Vision and remotely from the DC Home application.
- System communication - CAN, RV-C compliant for easy integration into modern RV installations.
Main functions
- Centralizes DC power distribution and controls multiple 12/24V circuits
- Monitors consumption and key power parameters
- Provides real-time alarms and diagnostics
- Facilitates automation and off-grid scenes in the Renogy ecosystem
- Allows remote viewing and control via the DC Home app
Technical specifications
- Parameters / Model: Renogy Smart Distribution Box (PMS1280)
- Model: RSHCB-C02P-G1
- Operating voltage: 12V DC / 24V DC
- Power consumption (standby): 1.2W at 12V DC
- Loads to be switched: 8 × 10 A (max) / 4 × 20 A (max)
- Temperature sensor: 2-channel, NTC; -20°C to 80°C
- Communication: CAN
- Voltage measurement: 2-channel, 0-60V DC
- Current measurement: max 25 A; accuracy: ±1%
- Dry Contacts: signal input ×6 / signal output ×4
- Dimensions: 340 × 157 × 66.4 mm
- Libra: 1980 g
Certificates and warranty
- Certificates: FCC, CE, RCM, RoHS
- Guarantee: 5 years
