Renogy REGO 12V 104Ah LiFePO Self-Heating Battery

Renogy REGO 12V 104Ah LiFePO Self-Heating Battery (SuperSlim Solid-State)

Renogy REGO 12.8V 104Ah SuperSlim Solid-State LiFePO (RBT12104LFP-SSBHG1-DE) is an ultra-thin battery (approx. 61 mm)
designed for campervans, vans, and overlanding, and anywhere where every centimeter of space counts
(e.g., mounting behind a seat, under the floor, or under a bed). The "solid-state" design limits the rate of temperature rise, increasing
safety margin, and the self-heating function allows charging even in frosty conditions.

Key benefits

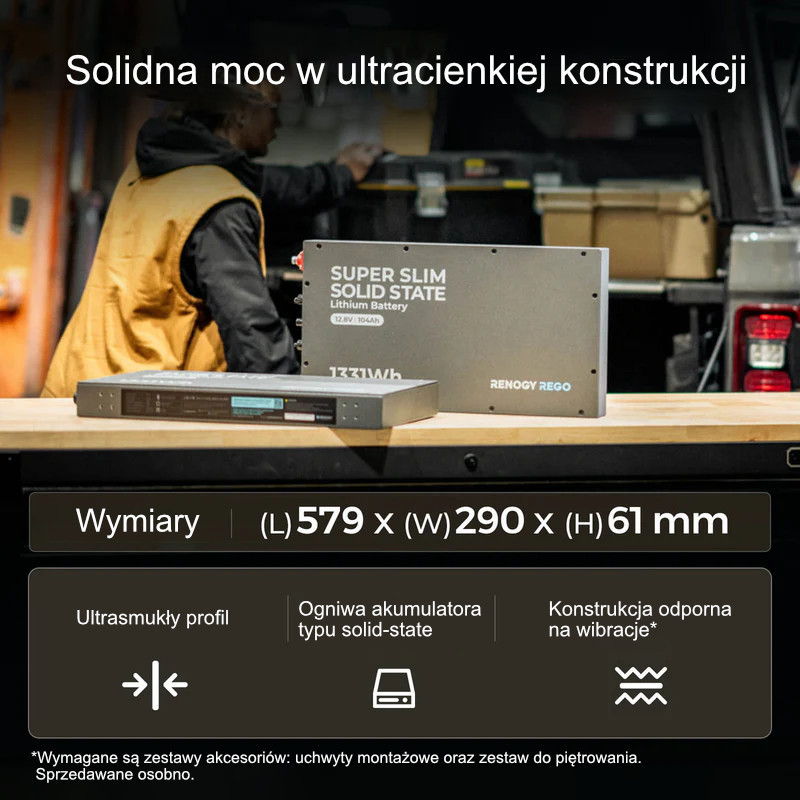

• Ultra-slim 61mm case - easy installation in tight spaces (579 × 290 × 61 mm).


• Solid-state technology - slower temperature rise and greater safety margin.


• Low temperature charging - declared loading to -10°C (with current limitation in the range -10°C to 0°C).


• High power - to 200 A continuous discharge (will power the inverter up to approx. 2000 W ).


• Waterproof and dustproof - degree of protection IP67 for outdoor/off-grid applications.

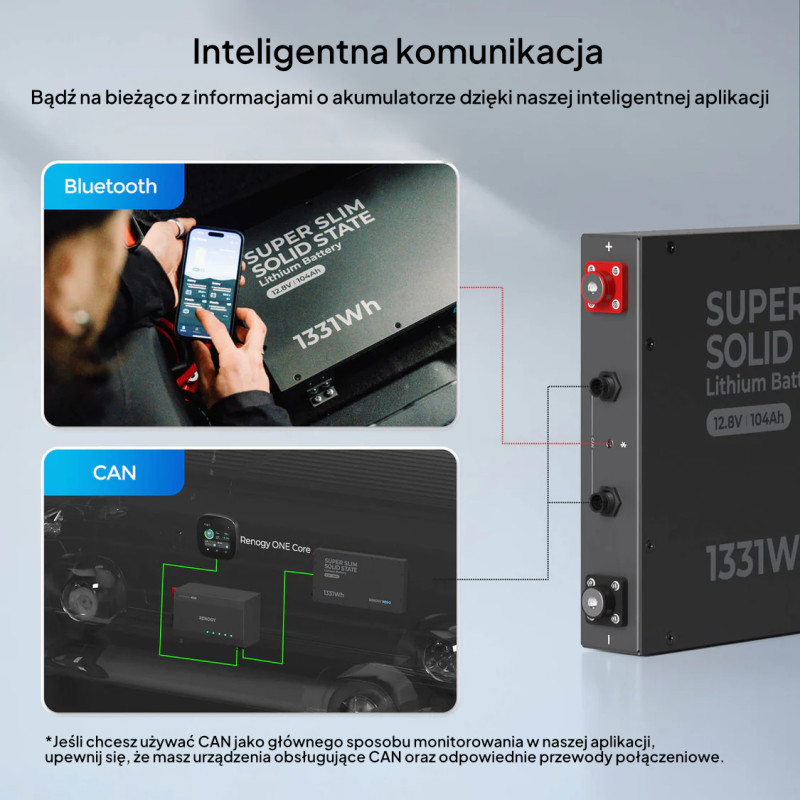

• Monitoring and integration - built-in Bluetooth (Renogy app) + ports CAN for system integration.


• Long service life - declared 6000 cycles by 80% DoD (80% EoL).

Functions and Applications

The battery is suitable for 12V systems in campers, vans, 4x4s, boats and off-grid installations.
Thanks to its high discharge current, it easily powers converters and demanding receivers, while the sealed IP67 construction
protects against splashes, dust and difficult terrain conditions.

Technical specifications

• Model: Renogy REGO 12.8V 104Ah Super Slim LiFePO


• Type: LiFePO (lithium iron phosphate)


• Nominal voltage: 12V (12.8V)


• Nominal capacity: 104Ah (0.5C, 25°C)


• Operating voltage range: 10V - 14.8V


• Max charging current: 100A


• Max. discharge current (continuous): 200A


• Peak discharge current: 290A for 30 sec


• Lifespan: 6000 cycles (0.5C, 25°C, 80% DoD, 80% EoL)


• Charging temperature: -10°C to 55°C (-10°C to 0°C: 0.1C)


• Discharge temperature: -20°C to 60°C


• Storage temperature: -20°C to 60°C


• Working humidity: 5% - 95%


• Connecting batteries: in series and parallel (max 4P4S), parallel (max 16P), in series (max 4S)


• Terminals: M8 × 1.25 (12mm and 16mm screws)


• Recommended tightening torque: 8 N m


• Degree of protection: IP67


• Dimensions: 579 × 290 × 61 mm


• Libra: 12.8 kg

Contents of the set

• Terminal screws: 2 × M8 × 1.25 × 12 mm


• Long terminal screws: 2 × M8 × 1.25 × 16 mm

Warranty and certificates

• Guarantee: 8 years (prorated)


• Certificates: MSDS, UN38.3, FCC, CE, PSE, RCM, IC, RoHS, UKCA
