Renogy Core Mini 12V 200Ah LiFePO battery

Renogy Core Mini 12V 200Ah LiFePO battery (12.8V)

The
Renogy Core Mini 12.8V 200Ah is a compact LiFePO battery for campers, small trailers, boats and off-grid applications that combines
high capacity with a relatively small size and portable design. It has low temperature charging cut-off
for safe work in winter, enables side mounting in tight spaces, and the housing IP65 and
increased vibration resistance makes it well-suited to field and marine conditions. Built on prismatic EV-class (UL) cells,
offers approx. 5000 cycles at 80% DoD and high peak power (up to 380A for 10 sec ) for receivers with high

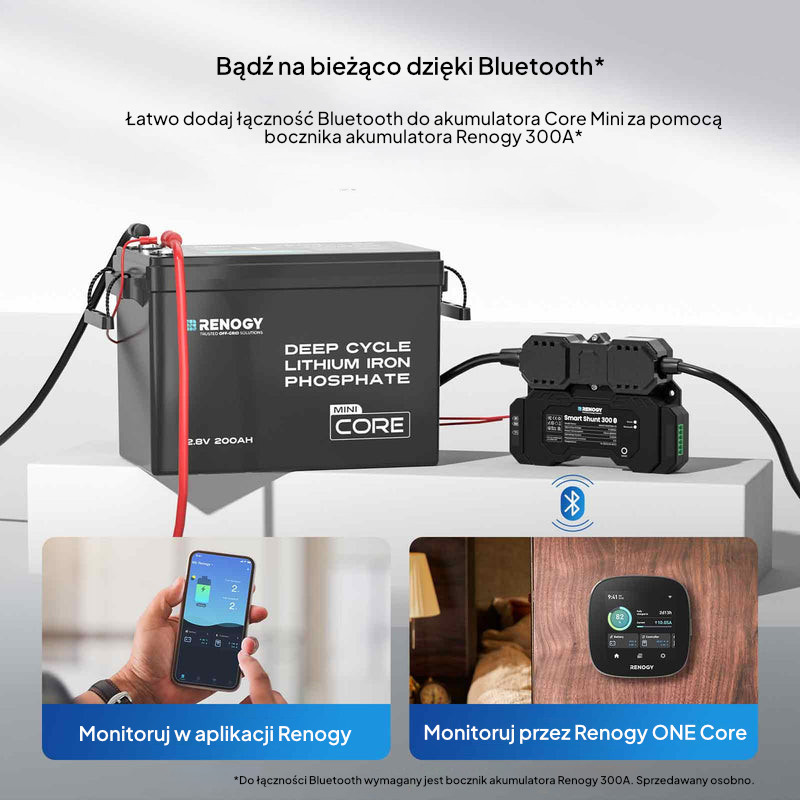

inrush current. After pairing with Renogy 300A Shunt enables remote monitoring of parameters.

Key benefits

• Large capacity in a compact design - 200Ah / 2560Wh in a format friendly to mobile bodies.


• Safe charging in winter - low temperature charging cut-off protects LiFePO cells.


• High power - to 200A continuous discharge and 380A for 10 sec at the peak.


• Long service life - okay. 5000 cycles (80% DoD, 80% EoL) under typical operation.

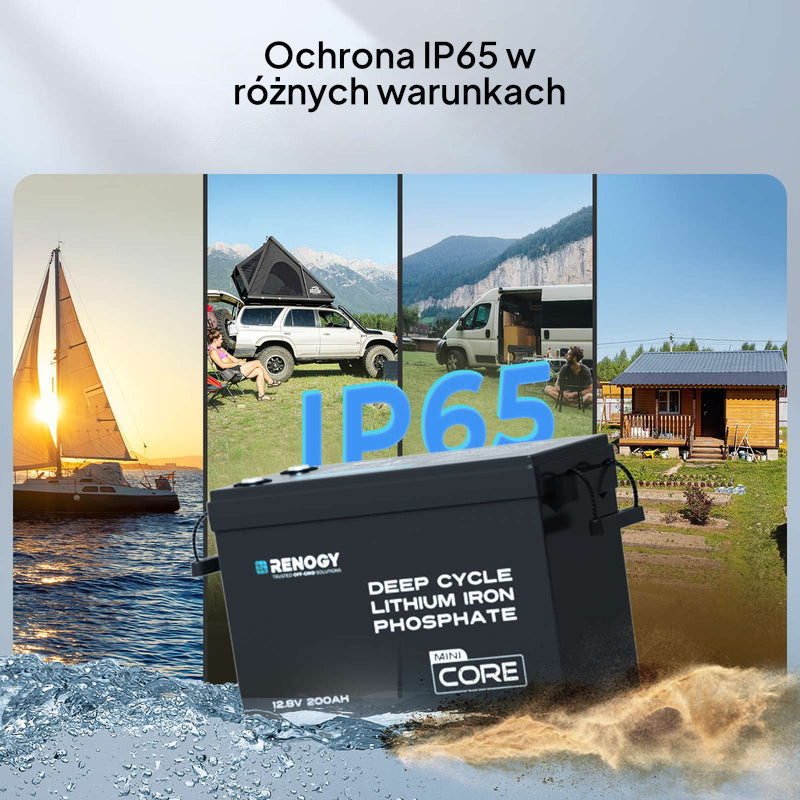

• Resistance to harsh conditions - IP65 housing, increased vibration resistance, ABYC compliance for marine applications.


• System scaling - possibility of connecting to 4S4P (up to approx. 40.96 kWh).


• Optional monitoring - with Renogy 300A Shunt, preview of parameters from the phone.

Main features

• Very compact format for the 200Ah class


• EV-class prismatic cells (UL)


• Charging cut-off in frost


• IP65 outdoor housing


• Increased resistance to vibrations and mobile conditions


• Side-mounted for tight spaces


• High peak current for starting loads

Technical specifications

• Parameters / Model: Lithium battery 12.8V 200Ah (LiFePO )


• Nominal capacity: 200 Ah (0.5C, 25°C)


• Tension: 12V


• Energy: 2560 Wh


• Cyclic life: 5000 cycles (80% DoD, 80% EoL; 0.5C/1C, 25°C)


• Operating temperature range:



  • Charging: 0°C-55°C


  • Discharge: -20°C-65°C






• Storage temperature: -20°C - 60°C


• Working humidity: 5% - 95%


• Voltage range: 10V - 14.6V


• Max continuous charging current: 100 A


• Max continuous discharge current: 200 A


• Peak discharge current: 380 A for 10 sec


• Dimensions (L × W × H): 384 × 194 × 253 mm


• Libra: 19.25 kg


• Terminal screws: M8 × 1.25 × 12 mm and M8 × 1.25 × 16 mm


• Degree of protection: IP65

Warranty and certificates

• Guarantee: 5 years (proportional - materials and workmanship)


• Certificates: MSDS, UN38.3, FCC, CE, PSE, RCM, IC, RoHS, UKCA

Application

• RVs, vans, campers


• Boats and marine applications


• Trolling motors


• Off-grid systems
