Renogy 500A Battery Monitor with Shunt

The Renogy 500A Battery Monitor with Shunt is designed for comprehensive battery performance monitoring in various applications, such as RVs, boats, and off-grid solar power systems. It can handle currents up to 500A, making it suitable for large battery systems. The included shunt allows for precise measurements of both charge and discharge currents.

Renogy 500A Battery Monitor with Shunt

• Measurement with 1% accuracy
  The shunt monitor provides much more accurate real-time voltage and current draw measurements.


• Battery Protection
  When the device detects a battery with too high or too low capacity, it triggers an alarm and the backlight and voltage value flash simultaneously to protect the batteries from over-discharge.

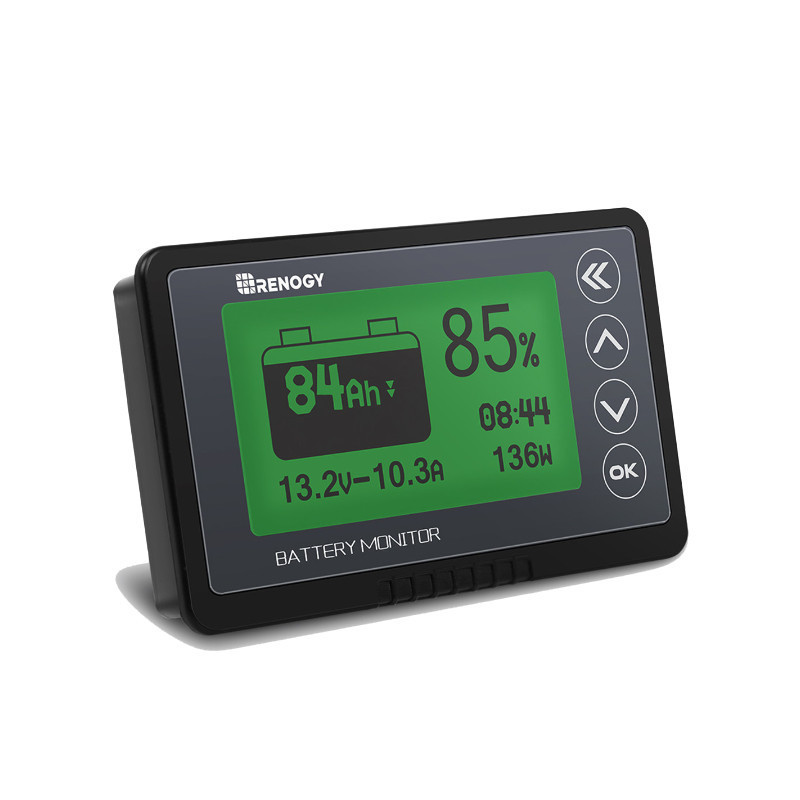

• Easy-to-read display
  Displays numerous electronic parameters including voltage, current, power consumption, battery capacity and battery degradation indicator with adjustable brightness level on a high-resolution display.

Main features

• Precise real-time voltage and current monitoring


• Equipped with high and low capacity alarms


• Works with various types of batteries


• A clear display that presents many parameters


• Low energy consumption


• Data storage function that automatically saves the last measurement data


• 20-foot shielded cable allows you to monitor battery health from a distance


• The set includes everything you need to get the monitor working.


• Easy and quick installation

Recreational vehicles and boats

Thanks to its versatility, the battery monitor is an excellent choice for camper, caravan and boat owners who need accurate data on the condition of their batteries.

Voltage range from 10V to 120V

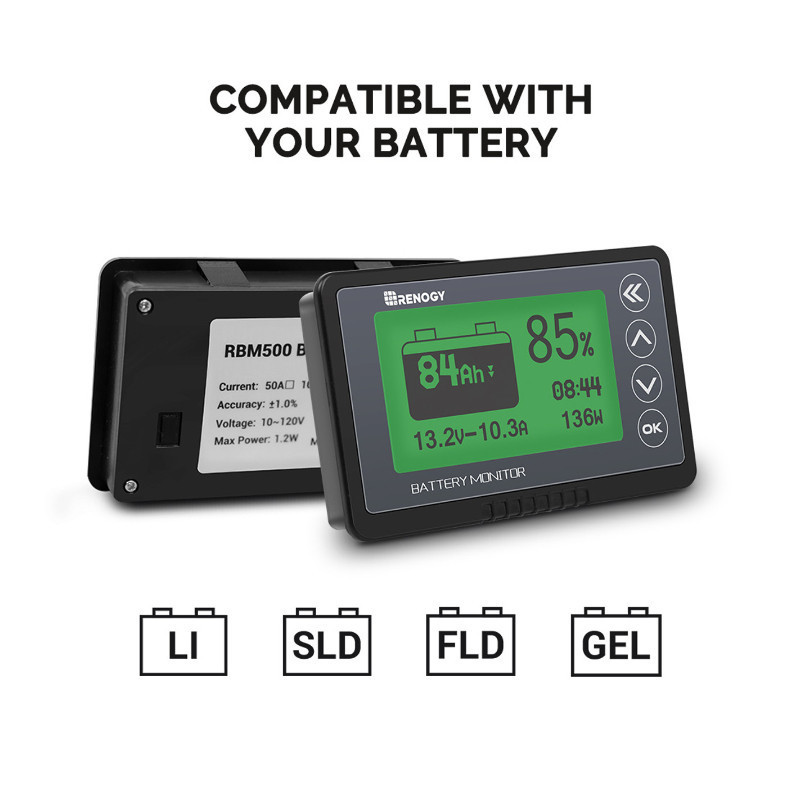

With the ability to operate from 10V to 120V, this monitor can be used with many types of batteries, including lead acid, lithium and gel batteries.

Specification

Renogy 500A Battery Monitor with Shunt

• Operating voltage: 10-120 V


• Power consumption at 12V: 1-2 mA


• Operating consumption: 10-15 mA


• Fixed capacity values: 0.1-9999.0 Ah


• Backlight at current (> 50A): 100 mA


• Compatible batteries: Acid (AGM, Gel), Lithium-Ion, Lithium-Ion, Nickel-Metal


• Display: LCD with green backlight (adjustable brightness)


• Capacity accuracy: ±1%


• Current accuracy: ±1%


• Voltage accuracy: ±1%


• Shielded cable length: 20 ft / 6 m


• Weight (LCD interface): 75 g


• Size (LCD interface): 99 × 61 × 18 mm


• B+ cable length: 1 m


• Temperature range: -10-60°C


• Material warranty: 1 year


• ROHS certified: Yes

The set includes

• LCD interface: ×1

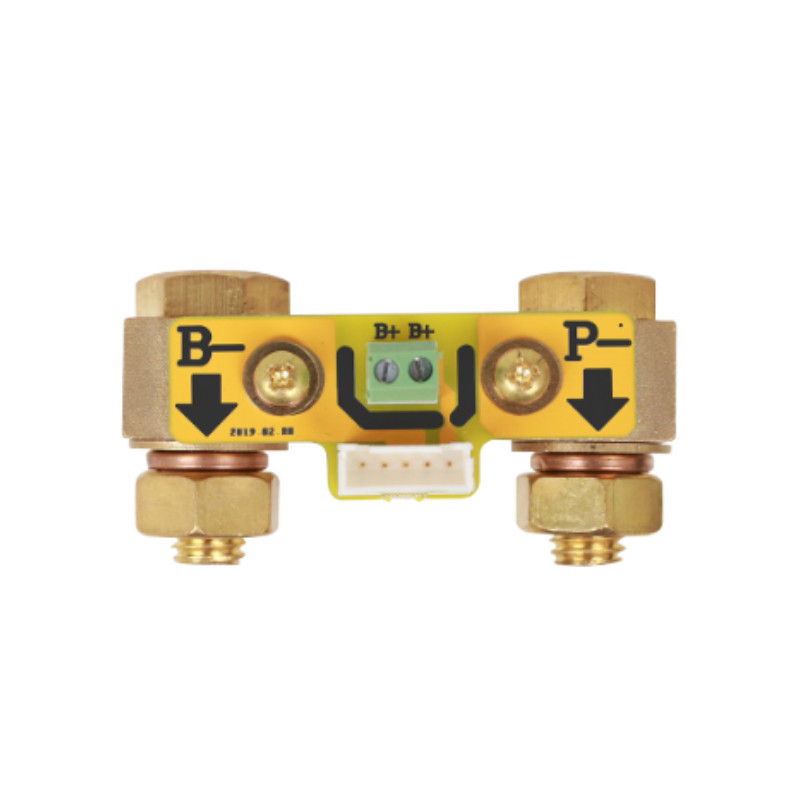

• Shunt 500A / sampler: ×1


• Shielded cable: ×1


• B+ Wire: ×1

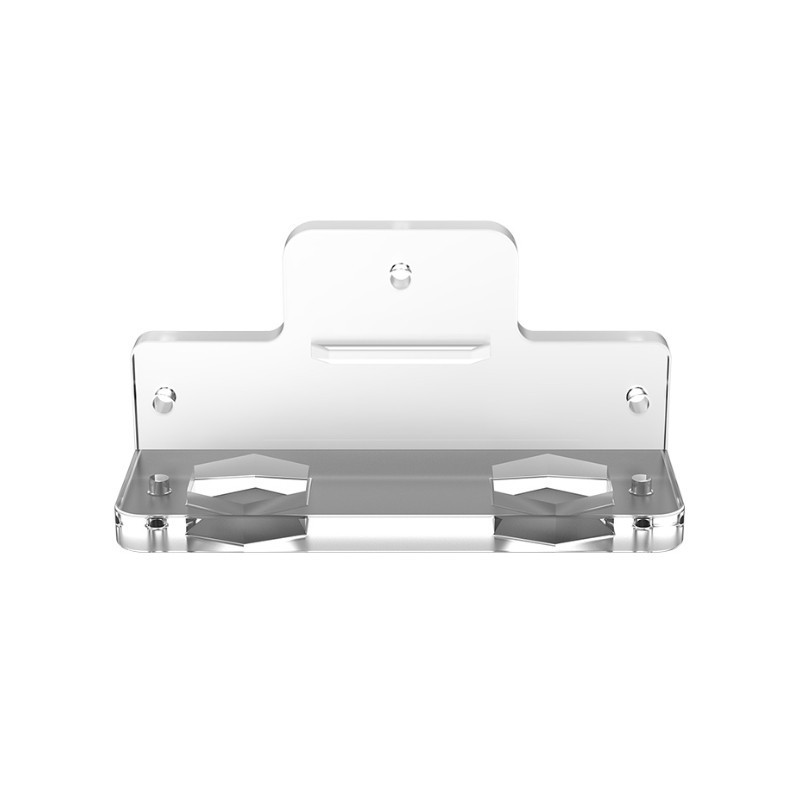

• Shunt holder: ×1
