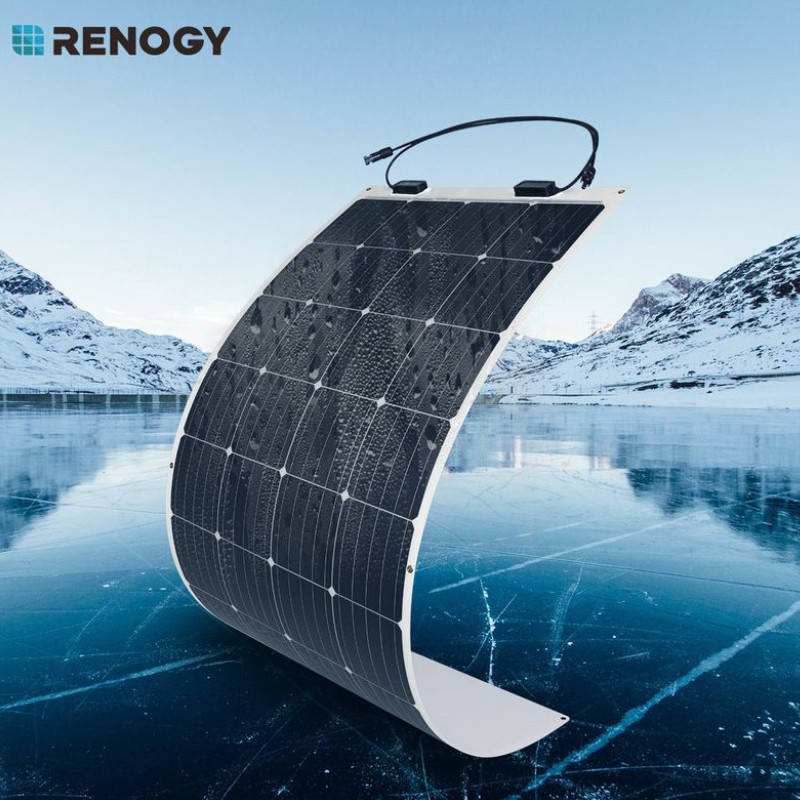

Renogy 175W 12V Monocrystalline Flexible Panel

The Renogy 175W 12V Monocrystalline Flexible Panel is an ultralight and flexible photovoltaic module designed specifically for mobile applications. It's ideal for roofs on campers, vans, boats, trailers, and other curved surfaces where traditional rigid panels can't be installed.

Main advantages:

• Exceptional flexibility - can be bent up to 240°


• Ultra-thin at just 2mm (0.1 inch)


• Extremely low weight - only 2.8 kg (70% lighter than traditional panels)


• Waterproof IP68 Junction Box and IP67 MC4 Connectors


• Resistant to extreme loads: wind up to 2400 Pa, snow up to 5400 Pa


• Monocrystalline technology for high efficiency


• Easy installation with silicone glue or screws (mounting holes on the corners)


• 25-year power output warranty

Technical specifications:

• Model: Renogy RNG-175DB-H-DE


• Maximum power (STC): 175 W


• System voltage: 12V


• No-Load Voltage (Voc): 23.9V


• Short circuit current (Isc): 9.50 A


• Operating voltage (Vmp): 19.5V


• Operating current (Imp): 8.98 A


• Module efficiency: 17.3%


• Cell type: Monocrystalline


• Number of links: 72 (18 × 4)

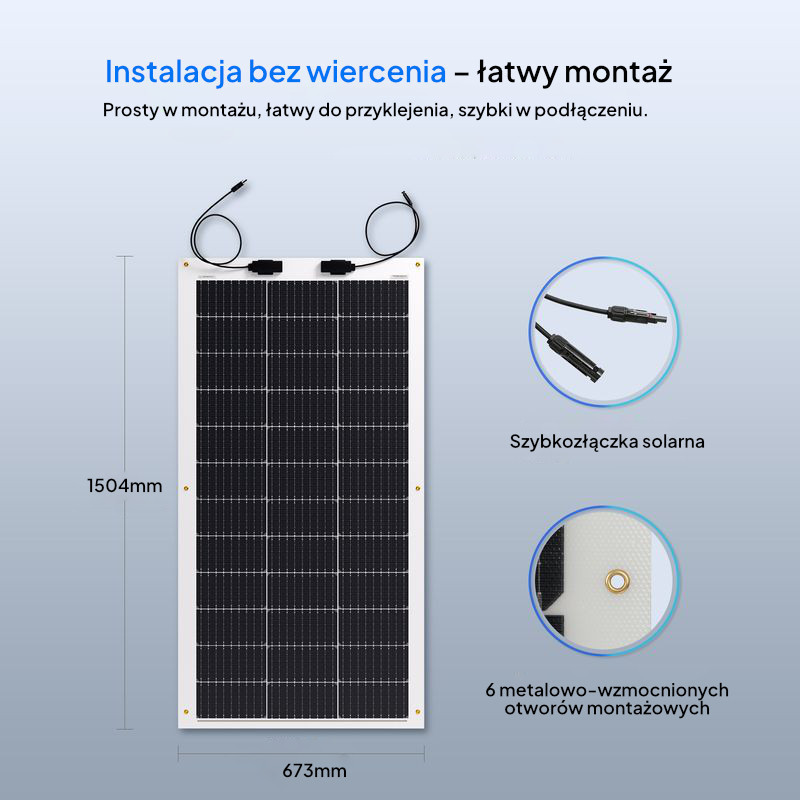

• Dimensions: 1504 × 673 × 2 mm


• Libra: 2.8 kg


• Thickness: 2 mm


• Junction box: IP68


• Connectors: MC4 (IP67)


• Operating temperature: -40°C to +85°C

Guarantee:

• 25 years for power output


• 5 years on materials and workmanship

Thanks to its low-profile design, lack of a rigid frame and high weather resistance, the Renogy 175W Flexible panel is an excellent choice for installations on boats, campers and vehicles where low weight, flexibility and discreet mounting are important.
