Renogy 120W ShadowFlux Anti-shading N-Type panel

The Renogy ShadowFlux 120W 12V panel is a modern rigid photovoltaic panel with N-Type cell technology and advanced ShadowFlux anti-shading technology. It delivers significantly higher real-world performance in partial shade and completely eliminates hot spots.

Main advantages:

• Advanced ShadowFlux Anti-shading technology - high performance even in shading

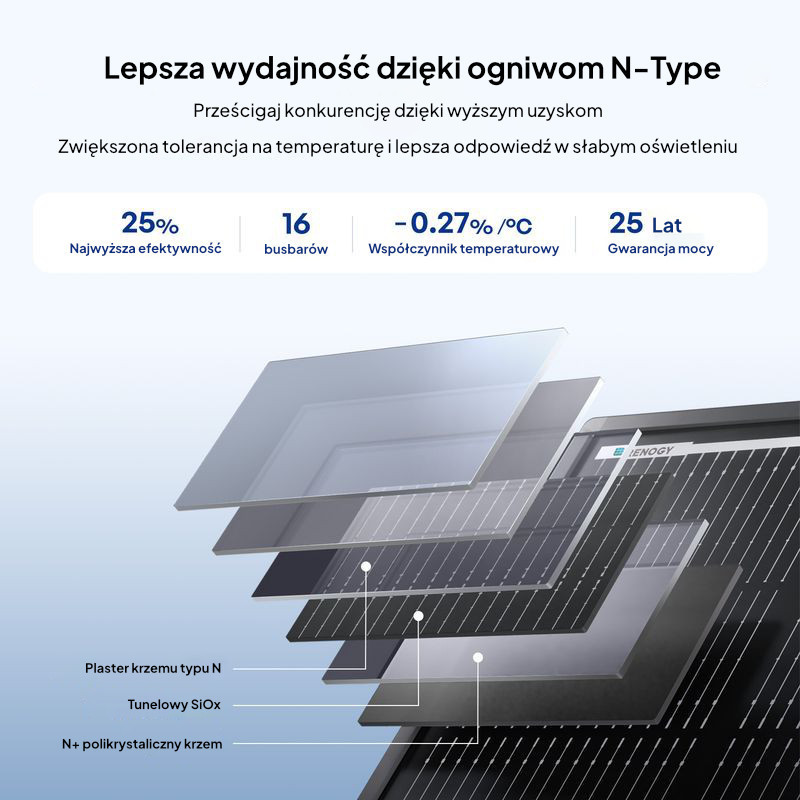

• High-efficiency N-Type cells


• No hot-spot effect in partial shade


• Very low temperature coefficient - better performance at high temperatures


• Solid construction with tempered glass and anodized aluminum frame


• Waterproof junction box and MC4 connectors rated IP67/IP68


• 25-year power output warranty

Technical Specifications - Renogy ShadowFlux 120W (RSP120DC-ASR-G1)

• Maximum power (STC): 120 W


• System voltage: 12V


• Optimum operating voltage (Vmp): 28.9V


• Optimum operating current (Imp): 4.21 A


• No-Load Voltage (Voc): 33.7V


• Short circuit current (Isc): 4.57 A


• Module efficiency: 20.7%


• Cell type: Monocrystalline N-Type


• Number of links: 48 (3 × 16)


• Dimensions: 1052 × 578 × 30 mm


• Libra: 6.81 kg


• Front glass: Hardened 1.5 mm


• Frame: Anodized aluminum alloy


• Junction box: IP67


• Connectors: MC4 (IP68)

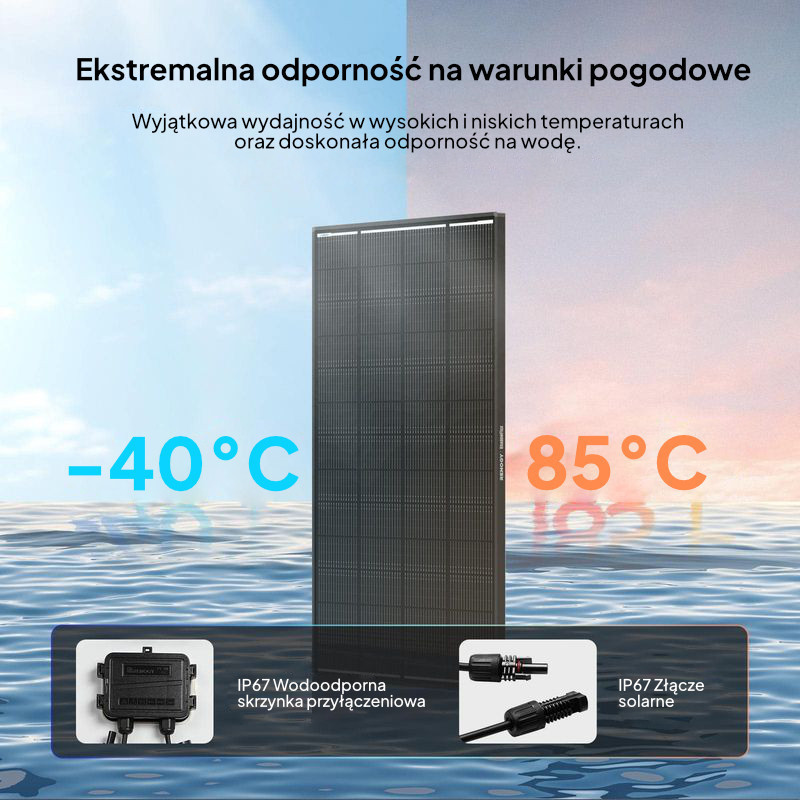

• Operating temperature range: -40°C to +85°C


• Temperature coefficient Pmax: -0.29%/°C

Guarantee:

• 25 years for power output


• 5 years on materials and workmanship

The Renogy ShadowFlux 120W is an excellent choice for campers, vans, boats, and small off-grid installations where the panel may be exposed to partial shade (e.g., from trees, antennas, or buildings). N-Type and ShadowFlux technology guarantee stable energy production even in challenging conditions.
