Pressed loop terminal, aluminum, for 50mm2 cable, 10 pcs.
Product reference:
14-9990000822171
Aluminum cable lug, crimped. Rugged housing prevents moisture ingress. Chemically treated to reduce contact resistance and corrosion.
Pressed loop terminal, aluminum, for 50mm2 cable, 10 pcs.
Product reference:
14-9990000822171
Aluminum cable lug, crimped. Rugged housing prevents moisture ingress. Chemically treated to reduce contact resistance and corrosion.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
4 - 5
business days
Not available
Pressed loop terminal, aluminum, for 50mm² cable, 10 pcs.
Features:
- Aluminum cable lug, crimped.
- The sturdy casing prevents moisture from entering.
- Chemically treated to reduce contact resistance and corrosion.

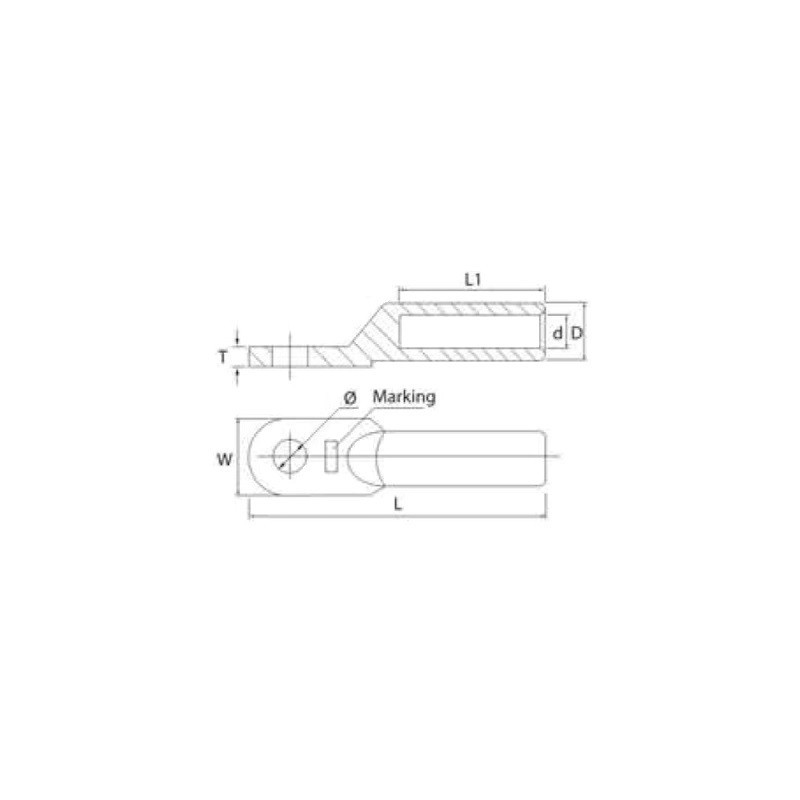

Technical data:
- Cable cross-sectional area: 50.0mm².
- Material: aluminum gt; /=99.5%.
- Surface treatment: no.
- Insulated: no.
- Connection angle: 180° (horizontal).
- Tip length: 90mm.
- Tip depth: 40mm.
- With inspection cavity: no.
- Nozzle inner diameter: 9.7mm.
- Nozzle outer diameter: 16mm.
- Loop shape: circle.
- Inner diameter of the loop: 10.5mm.
- Outer diameter of the loop: 23mm.
- The set includes: 10 pcs.
| Height | 30 mm |
| Length | 100mm |
| Weight | 150 g |
| Width | 15 mm |
