Pressed loop terminal, aluminum, for 25mm2 cable, 10 pcs.
Product reference:
14-9990000822157
Aluminum cable lug, crimped. Rugged housing prevents moisture ingress. Chemically treated to reduce contact resistance and corrosion.
Pressed loop terminal, aluminum, for 25mm2 cable, 10 pcs.
Product reference:
14-9990000822157
Aluminum cable lug, crimped. Rugged housing prevents moisture ingress. Chemically treated to reduce contact resistance and corrosion.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
4 - 5
business days
Not available
Pressed loop terminal, aluminum, for 25mm² cable, 10 pcs.
Features:
- Aluminum cable lug, crimped.
- The sturdy casing prevents moisture from entering.
- Chemically treated to reduce contact resistance and corrosion.

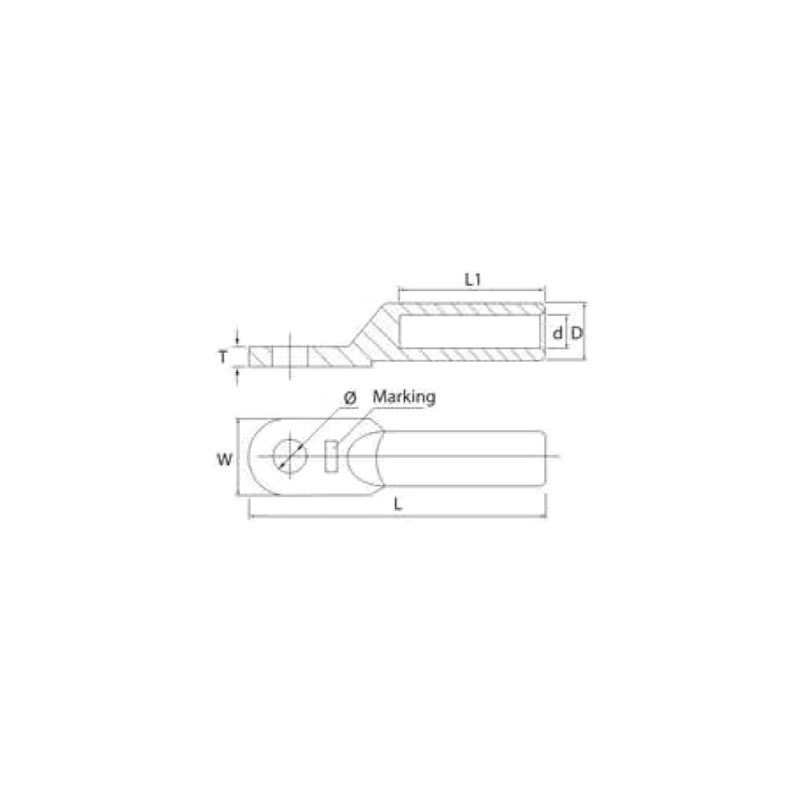

Technical data:
- Cable cross-sectional area: 25.0mm².
- Material: aluminum gt; /=99.5%.
- Surface treatment: no.
- Insulated: no.
- Connection angle: 180° (horizontal).
- Tip length: 75mm.
- Tip depth: 35mm.
- With inspection cavity: no.
- Nozzle inner diameter: 7.4mm.
- Nozzle outer diameter: 12mm.
- Loop shape: circle.
- Inner diameter of the loop: 8.5mm.
- Outer diameter of the loop: 18mm.
- The set includes: 10 pcs.
| Height | 100mm |
| Length | 150mm |
| Weight | 250 g |
| Width | 50mm |
