Pressed bimetallic connector, aluminum+copper, for 25+16mm2 cables, 10pcs.

Pressed bimetallic connector, aluminum+copper, 25+16mm² for cables, 10 pcs.
Features:

• A contact made of two different metals, in the shape of a tube, is pressed.


• Designed to connect aluminum wires to conventional multi-core copper wires.


• Solid central barrier.


• Pre-filled with joint compound.


• Friction fused.

Technical data:

• Cross-sectional area of aluminum cable: 25.0mm².


• Copper cable cross-sectional area: 16.0mm².


• Material: copper gt; /=99.9% + aluminum gt; /=99.5%.


• Surface treatment: no.


• Insulated: no.


• Connection angle: 180° (horizontal).

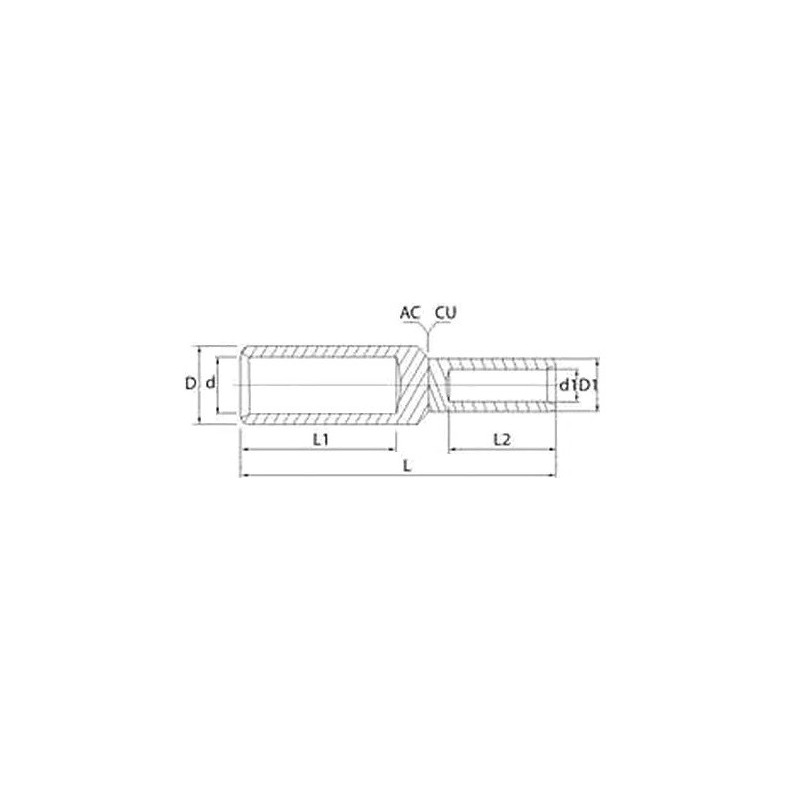

• Connector length: 80mm.


• Aluminum joint depth: 35mm.


• Copper connection depth: 30mm.


• With inspection cavity: no.


• Inner diameter of aluminum connector: 7.0mm.


• Aluminum connector outer diameter: 12mm.


• Copper connector inner diameter: 6.0mm.


• Outer diameter of copper connector: 10mm.


• The set includes: 10 pcs.
