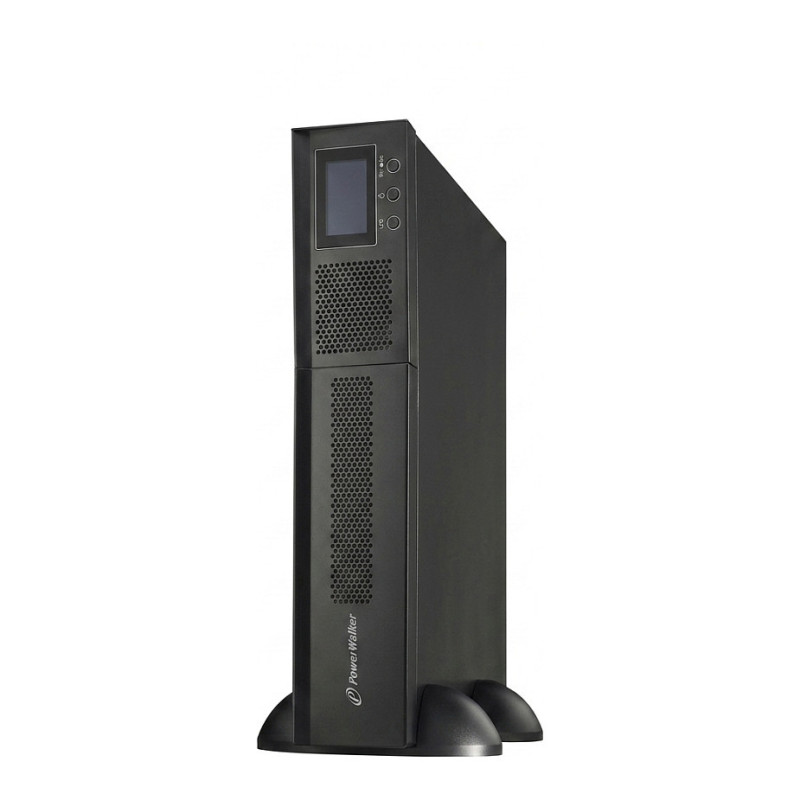

PowerWalker VFI 3000 RMG PF1 uninterruptible power supply (UPS)

PowerWalker VFI 3000 RMG PF1. UPS topology: Double-conversion (Online), Output power capacity: 3 kVA, Output power: 3000 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C14 coupler, Serial interface type: RS-232. Battery capacity: 9 Ah, Battery voltage: 12 V, Typical backup time at full load: 3 min. Form factor: Rackmount/Tower, Product colour: Black, Display type: LCD. Cables included: Input power cable, Output power cable, USB cable
The PowerWalker VFI 1000-3000 RMG PF1 is a professional series for commercial applications featuring unity Power Factor (PF=1.0) and very strong charger with adjustable current. The wide input voltage and frequency ranges allow operation in unstable networks and provide generator support.
Multiple accessories, including battery packs and communication cards, enhance the functionality of the UPS and allow a greater backup time. The system can be monitored locally via an LCD panel or remotely via the PowerWalker ViewPower software. With its slim design it only requires 2U valuable space of your rack system. The UPS can be installed in 19" rack systems or used as tower.

Features

UPS topology: Double-conversion (Online)
Output power capacity: 3 kVA
Output power: 3000 W
Waveform: Sine
Input operation voltage (min): 110 V
Input operation voltage (max): 300 V
Input frequency: 40/70 Hz
Output operation voltage (min): 200 V
Output operation voltage (max): 240 V
Output voltage regulation: 1%
Power factor: 0.99
Crest factor: 3:1
Emergency Power Off (EPO): Yes
Output voltage Total Harmonic Distortion (THD): 2%
Input current Total Harmonic Distortion (THD): 1.6%
Noise level: 50 dB
Surge protection: Yes
Surge protection features: Fax, Modem, Network

Ports interfaces

AC outlet types: C13 coupler, C19 coupler
Power plug: C14 coupler
Number of type F outputs: 9
USB port: Yes
USB 2.0 ports quantity: 1
Serial interface: Yes
Serial interface type: RS-232
RS-232 ports: 1
Modem (RJ-11) ports: 1
Ethernet LAN (RJ-45) ports: 1
Emergency Power Off (EPO) connector: Yes

Battery

Battery capacity: 9 Ah
Battery voltage: 12 V
Number of batteries supported: 6
Typical backup time at full load: 3 min
Typical backup time at half load: 10.1 min
Battery recharge time: 3 h

Design

Form factor: Rackmount/Tower
Product colour: Black
Display type: LCD

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 20 - 95%

Packaging content

Cables included: Input power cable, Output power cable, USB cable
Manual: Yes

Weight dimensions

Width: 190 mm
Depth: 630 mm
Height: 318 mm
Weight: 27.5 kg

Packaging data

Resource CD: Yes
Warranty card: Yes
Bundled software: ViewPower / ViewPowerMini
Package width: 600 mm
Package depth: 760 mm
Package height: 200 mm
Package weight: 31.9 kg
Package type: Box

Logistics data

Harmonized System (HS) code: 85078000
