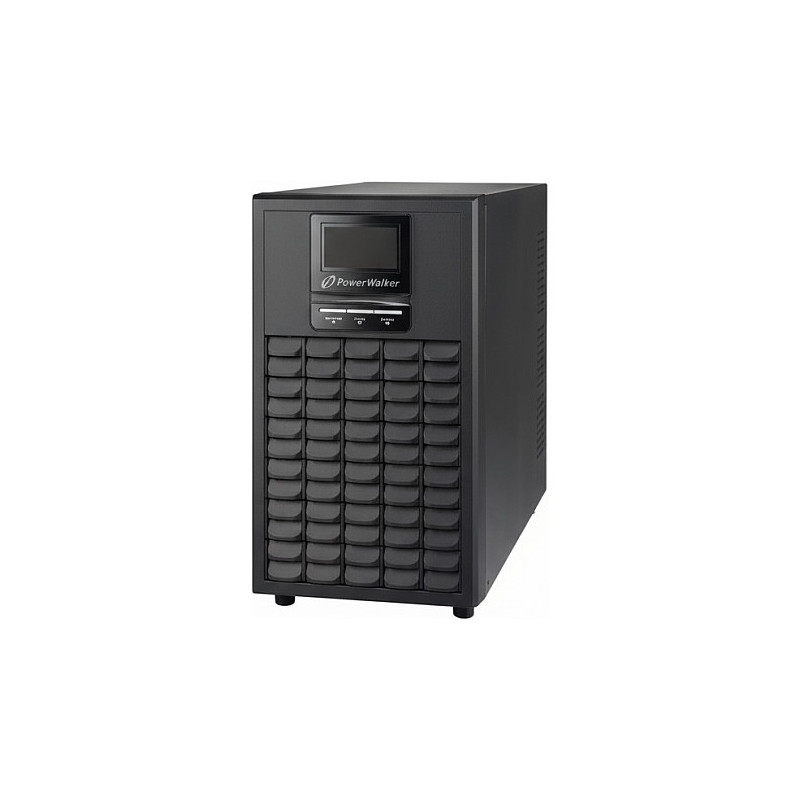

PowerWalker VFI 2000 CG PF1 uninterruptible power supply (UPS)

PowerWalker VFI 2000 CG PF1. UPS topology: Double-conversion (Online), Output power capacity: 2 kVA, Output power: 2000 W. AC outlet types: C13 coupler, Power plug: C20 coupler, AC outlets quantity: 8 AC outlet(s). Battery capacity: 7 Ah, Battery voltage: 12 V, Typical backup time at full load: 4.4 min. Form factor: Tower, Product colour: Black, Cooling type: Active. Cables included: Input power cable, Output power cable, USB cable
The PowerWalker VFI 1000-10000 CG PF1 is a professional series for commercial applications featuring unity Power Factor (PF=1.0). The wide input voltage and frequency ranges allow operation in unstable networks and provide generator support. 1-3kVA are equipped with a very strong charger with adjustable current and 6-10kVA can present very low harmonic distortions (<1%) and high efficiency (up to 94%).
Multiple accessories, including battery packs and communication cards, enhance the functionality of the UPS and allow a greater backup time. The system can be monitored locally via an LCD panel or remotely via the PowerWalker ViewPower software.

Features

UPS topology: Double-conversion (Online)
Output power capacity: 2 kVA
Output power: 2000 W
Input operation voltage (min): 110 V
Input operation voltage (max): 300 V
Input frequency: 40/70 Hz
Output operation voltage (min): 200 V
Output operation voltage (max): 240 V
Output voltage regulation: 1%
Efficiency: 89%
Power factor: 0.99
Crest factor: 3:1
Emergency Power Off (EPO): Yes
Output voltage Total Harmonic Distortion (THD): 2%
Input current Total Harmonic Distortion (THD): 1.6%
Noise level: 50 dB
Surge protection: Yes
Surge protection features: Fax, Modem, Network

Ports interfaces

AC outlet types: C13 coupler
Power plug: C20 coupler
AC outlets quantity: 8 AC outlet(s)
USB port: Yes
Serial interface: Yes
Serial interface type: RS-232
Emergency Power Off (EPO) connector: Yes

Battery

Battery capacity: 7 Ah
Battery voltage: 12 V
Number of batteries supported: 6
Typical backup time at full load: 4.4 min
Typical backup time at half load: 12.8 min
Battery recharge time: 3 h

Design

Form factor: Tower
Cooling type: Active
Product colour: Black
Display type: LCD

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 20 - 95%

Packaging content

Cables included: Input power cable, Output power cable, USB cable
Manual: Yes

Weight dimensions

Width: 190 mm
Depth: 421 mm
Height: 318 mm
Weight: 23.2 kg

Packaging data

Resource CD: Yes
Warranty card: Yes
Bundled software: ViewPower
Package width: 320 mm
Package depth: 560 mm
Package height: 460 mm
Package weight: 26 kg
Package type: Box

Logistics data

Harmonized System (HS) code: 85078000
