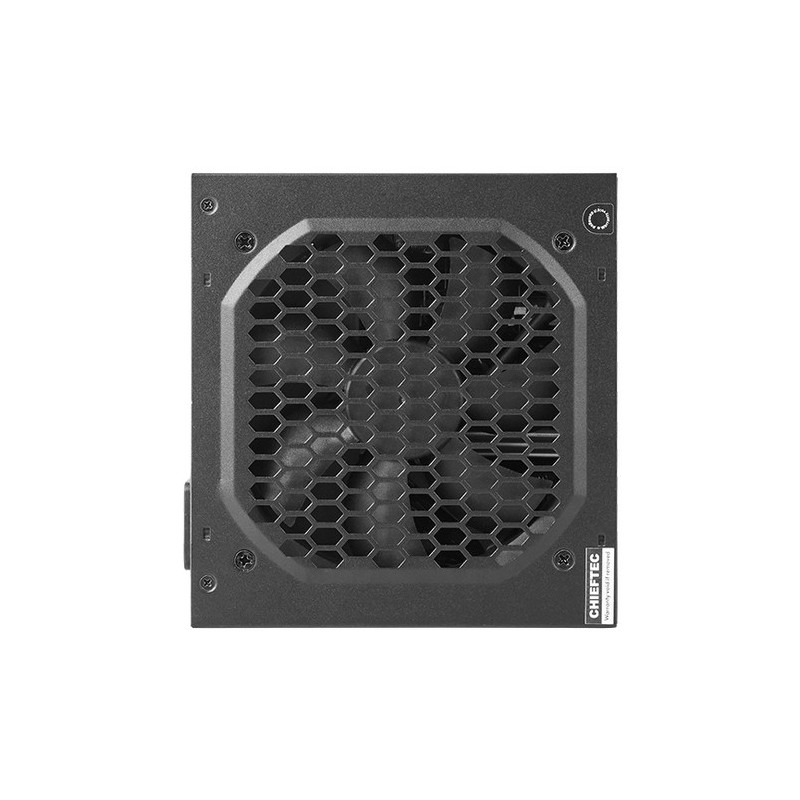

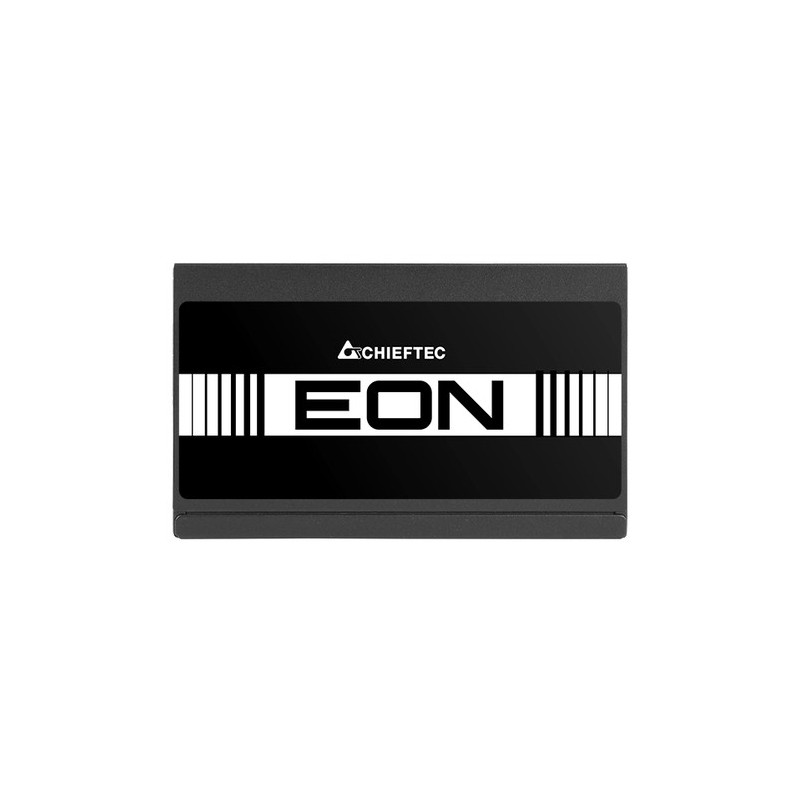

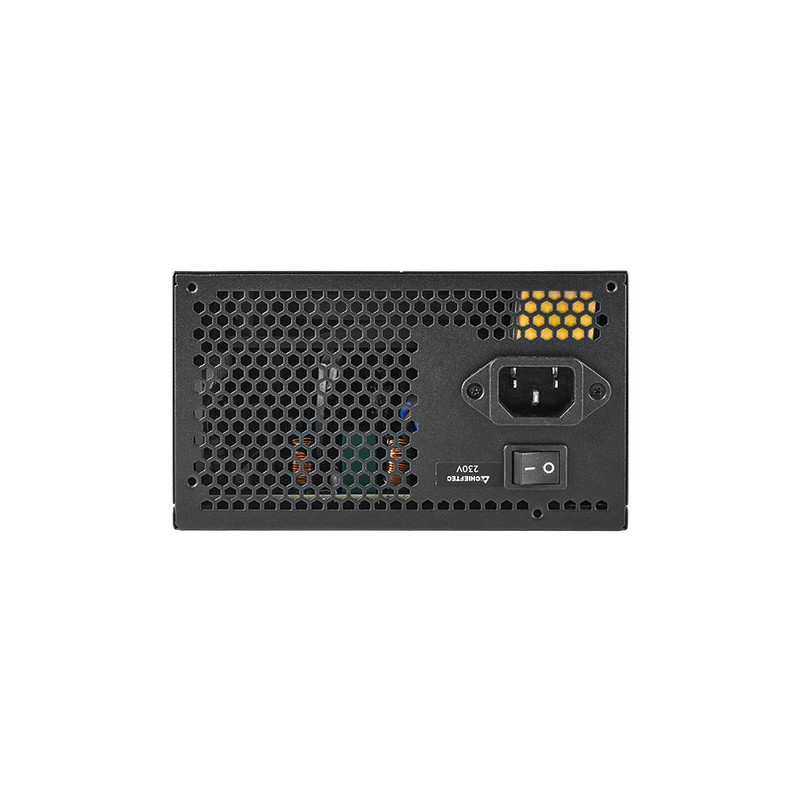

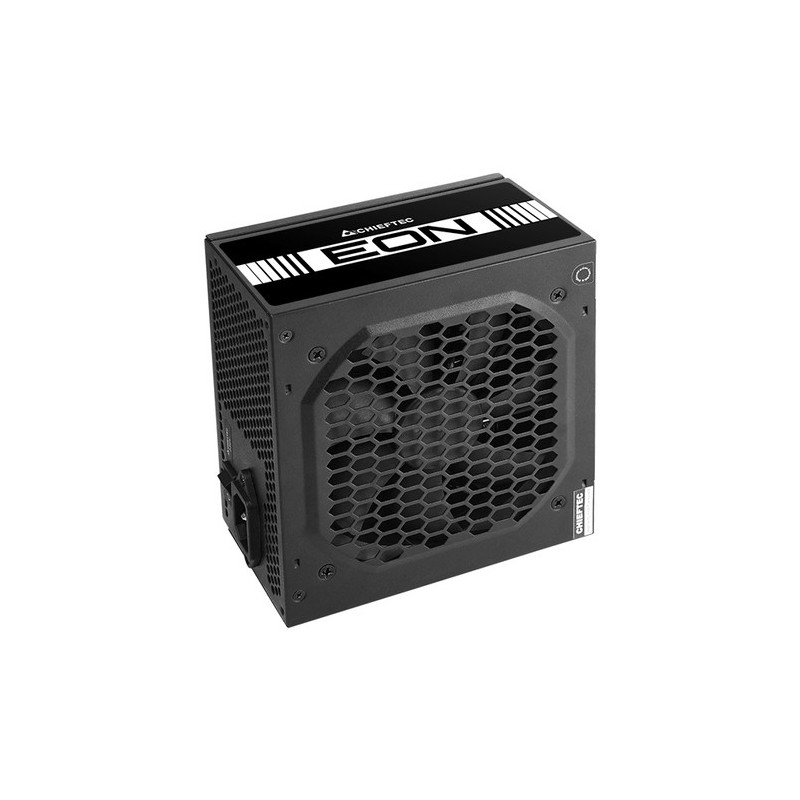

Power supply ZPU-500S 500W EON Series 80 PLUS
Product reference:
3-0753263078612
Power supply ZPU-500S 500W EON Series 80 PLUS
Power supply ZPU-500S 500W EON Series 80 PLUS
Product reference:
3-0753263078612
Power supply ZPU-500S 500W EON Series 80 PLUS
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
10 - 19
business days
| Technical details | |
|---|---|
| Sustainability certificates | ErP |
| Design | |
| On/off switch | Yes |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Power | |
| Total power | 500 W |
| Power protection features | Short circuit, Surge protection, Surge and inrush |
| Max output current (+12V1) | 37 A |
| Combined power (+5V) | 100 W |
| Max output current (+3.3V) | 20 A |
| AC input frequency | 50 Hz |
| Power factor | 0.9 |
| Combined power (-12V) | 4.8 W |
| Combined power (+12V) | 444 W |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| AC input voltage | 200 - 240 V |
| Input current | 3.5 A |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.4 A |
| Weight & dimensions | |
| Weight | 1.2 kg |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Performance | |
| Supported motherboard form factors | ATX |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC/Server |
| ATX version | 2.3 |
| 80 PLUS certification | 80 PLUS |
| Packaging data | |
| Package type | Box |
| Package weight | 1.45 kg |
| Certificates | |
| Compliance certificates | RoHS, CE, CB, EAC |
| Ports & interfaces | |
| Cabling type | Non-Modular |
| PCI Express power connectors (6+2 pin) | 1 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Number of SATA power connectors | 4 |
| Motherboard power connector | 20+4 pin ATX |
| SATA power cable length | 750, 600 mm, 450 mm |
| Peripheral (Molex) power cable length | 150, 450 mm |
| Motherboard power cable length | 65 cm |
| EPS power connector (4+4 pin) | Yes |
| ATX power connector (20+4 pin) | Yes |
| CPU power connector (4+4 pin) | Yes |
| Logistics data | |
| Warranty period | 2 year(s) |
