Power Supply - XPG COREREACTOR II VE 750W Black
Product reference:
14-4711085946249
The XPG COREREACTOR II VE 750W power supply features a fully modular design, 80 PLUS Gold certification, and a maximum power of 750W. It features multiple connectors, including 6 SATA power connectors and 3 PCI Express power connectors, as well as active cooling with a 12cm fan.
Power Supply - XPG COREREACTOR II VE 750W Black
Product reference:
14-4711085946249
The XPG COREREACTOR II VE 750W power supply features a fully modular design, 80 PLUS Gold certification, and a maximum power of 750W. It features multiple connectors, including 6 SATA power connectors and 3 PCI Express power connectors, as well as active cooling with a 12cm fan.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
XPG CoreReactor II VE 750W Power Supply - Black
The XPG COREREACTOR II VE 750W power supply features a fully modular design, 80 PLUS Gold certification, and maximum 750W power. It features multiple connectors such as 6 SATA power connectors and 3 PCI Express power connectors, and has active cooling with a 12 cm fan.
- Power supply: 750W with 80 PLUS Gold certification, ensuring high efficiency

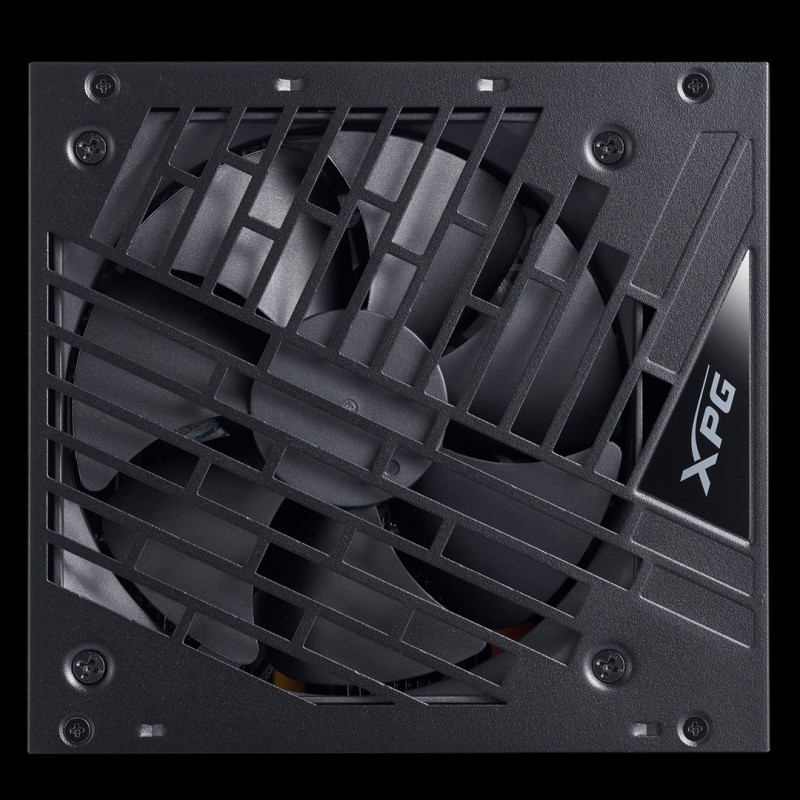

- Active cooling system with one 12 cm fan for optimal thermal management
- Fully modular wiring for easy installation and improved airflow
- Comprehensive power protection features including short circuit, overvoltage and overcurrent protection
- Compact dimensions: 150 mm (W) x 140 mm (D) x 86 mm (H) and lightweight - 1.45 kg
Design | |
|---|---|
| Cooling type | Active |
| Number of fans | 1 fan |
| Fan diameter | 12 cm |
| Product color | Black |
Power supply | |
| Power protection functions | Short circuit, over-power, under-voltage, over-current, overheating, over-voltage, over-current and over-voltage protection (SIP) |
| Maximum output current (+5Vsb) | 3 A |
| Maximum output current (+12V) | 62.5 A |
| Power factor | 0.99 |
| Total power | 750W |
| Maximum output current (-12V) | 0.3A |
| Maximum output current (+5V) | 20 A |
| Maximum output current (+3.3V) | 20 A |
| AC input frequency | 47 - 63 Hz |
| Input current | 10 A |
| AC input voltage | 100 - 240V |
Weight and dimensions | |
| Depth | 140mm |
| Height | 86 mm |
| Width | 150mm |
| Weight | 1.45 kg |
Operation | |
| 80 PLUS certificate | 80 PLUS Gold |
| Bearing technology | FDB |
| Mean time between failures (MTBF) | 100000 hours |
| ATX version | 3.1 |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
Packaging details | |
| Package weight | 3.03 kg |

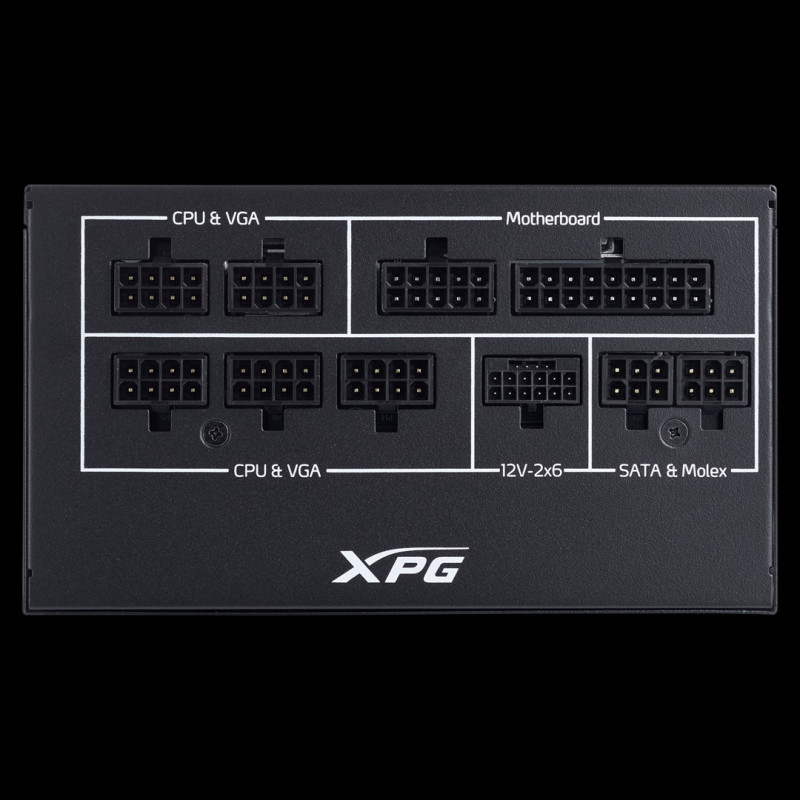

Ports and interfaces | |
| EPS power connector (8-pin) | Yes |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Number of SATA power connectors | 6 |
| PCI Express power connectors (6+2 pin) | 3 |
| Wire type | Fully modular |
| CPU power connector (4+4 pin) | Yes |
| Motherboard power connector | 24-pin ATX |
| Motherboard power cable length | 65 cm |
| CPU power cable length | 75 cm |
| SATA power cable length | 150, 450 |
| ATX power connector (12+4 pin) | Yes |
| PCI Express power connector (12+4 pin) cable length | 600mm |
Safety warning | |
| Dangerous symbol | GHS07: Harmful, GHS09: Environmental hazard, GHS02: Flammable |
| Height | 200mm |
| Length | 450mm |
| Weight | 2500g |
| Width | 350mm |
