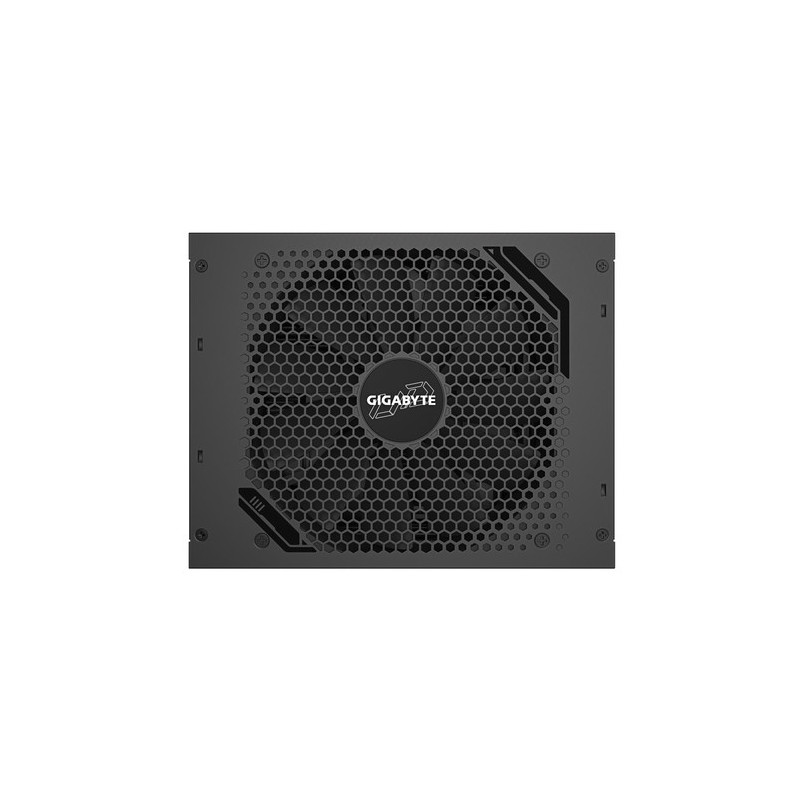

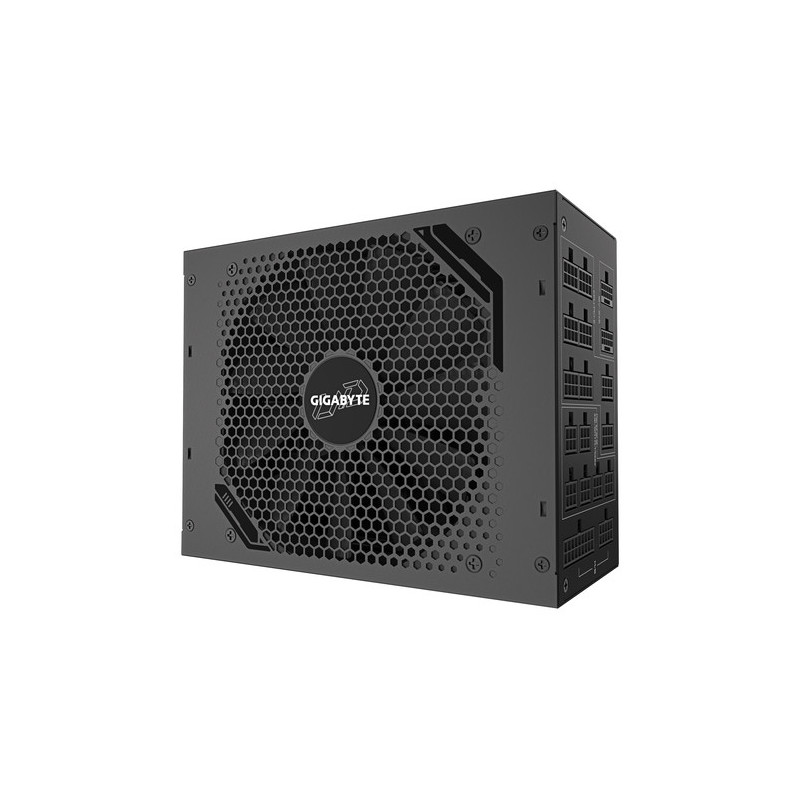

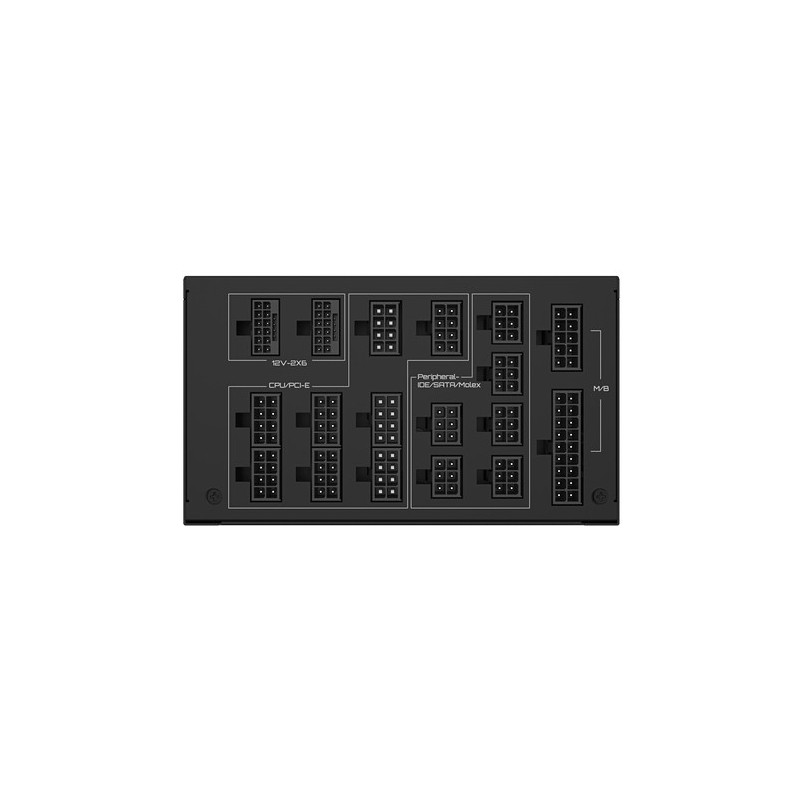

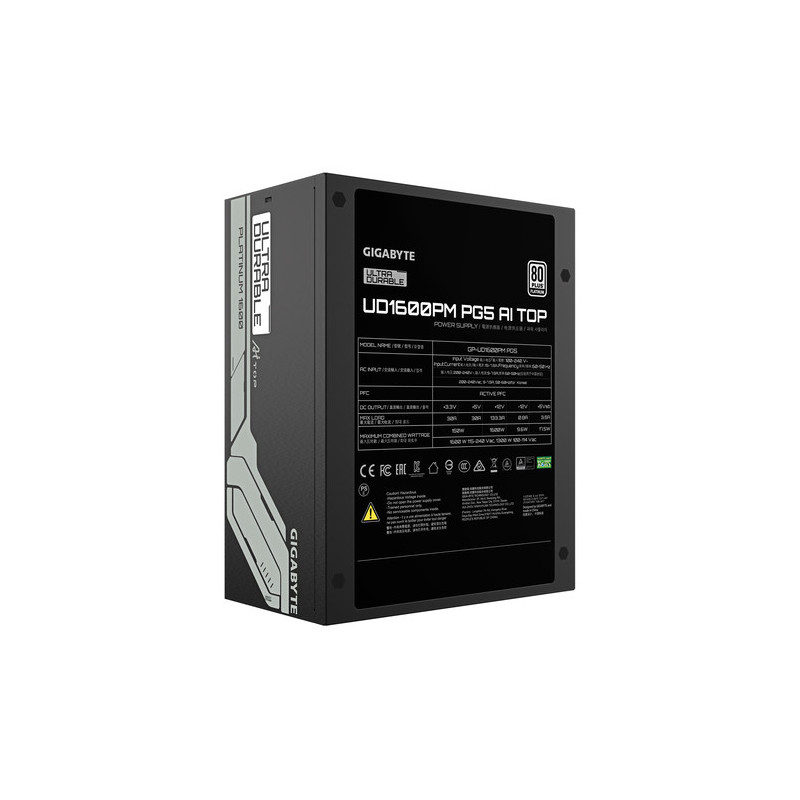

Power supply unit Gigabyte UD1600PM PG5 AI TOP ATX 3.1 1600W (GP-UD1600PM PG5)

Product reference: 3-4719331555047

You have 3 products in compare list, please remove someone and try again

Add to favorites products
Added to favorites products
Removed to favorites product

Add to compare

333,41 €

336,78 €

Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
3 - 8
business days

Ask about product

Your message has been successfully sent!

Fill in the required fields*

Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.

16-pin PCIe cable * 4 support PCIe Gen 5.0 graphic cards
ATX 3.1 and PCIe Gen 5.0 ready
Server-grade Ultra Durable: Main Japanese capacitors, enhanced thermal solution, 140mm smart double ball bearing fan, OVP/OPP/SCP/UVP/OCP/OTP protection
80 PLUS Platinum certified
Fully modular design
Powerful single +12V rail

Summary:	GIGABYTE UD1600PM PG5 AI TOP Power Supply - PCIe 5.0, 80 PLUS Platinum, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug. Total power: 1600 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 150,650 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product color: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 190 mm, Height: 86 mm
Vendor Homepage:	https://www.gigabyte.com/
Category Code:	PSU
CnCode:	85044095
Unit Box Height:	0.25
Unit Box Length:	0.6
Unit Box Width:	0.11
AC input frequency:	50/60Hz
AC input voltage:	100 - 240V
Combined power (+12V):	1600W
Combined power (+3.3V):	150W
Combined power (+5V):	150W
Combined power (+5Vsb):	17.5W
Combined power (-12V):	9.6W
Efficiency:	92%
Hold time:	16ms
Input current:	15 - 7.5A
Max output current (+12V):	133.3A
Max output current (+3.3V):	30A
Max output current (+5V):	30A
Max output current (+5Vsb):	3.5A
Max output current (-12V):	0.8A
Power factor:	0.9
Power Factor Correction (PFC) type:	Active
Power Good signal delay range:	100 - 150ms
Power protection features:	Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage
Total power:	1600W
ATX power connector (20+4 pin):	Yes
Cabling type:	Fully Modular
CPU power connector (4+4 pin):	Yes
EPS power connector (4+4 pin):	Yes
Motherboard power cable length:	610mm
Motherboard power connector:	20+4 pin ATX
Number of SATA power connectors:	16
PCI Express connector:	Yes
PCI Express power connectors (6+2 pin):	8
Peripheral (Molex) power connectors (4-pin):	6
SATA power cable length:	150/650mm
80 PLUS certification:	80 PLUS Platinum
ATX version:	3.1
Bearing technology:	DBB
Mean time between failures (MTBF):	100000h
Power supply unit (PSU) form factor:	ATX
Purpose:	PC
Cooling type:	Active
Fan diameter:	120mm
Fan location:	Top
Number of fans:	1fan(s)
On/off switch:	Yes
Product colour:	Black
Depth:	190mm
Height:	86mm
Weight:	5300g
Width:	150mm
Package depth:	219mm
Package height:	145mm
Package type:	Box
Package weight:	5575g
Package width:	410mm
Warranty period:	10year(s)
Model name:	GP-UD1600PM PG5
Units per Shipping Box:	4
Unit Calculated Volume:	0.0165m³
Unit Calculated Weight:	5.99kg
