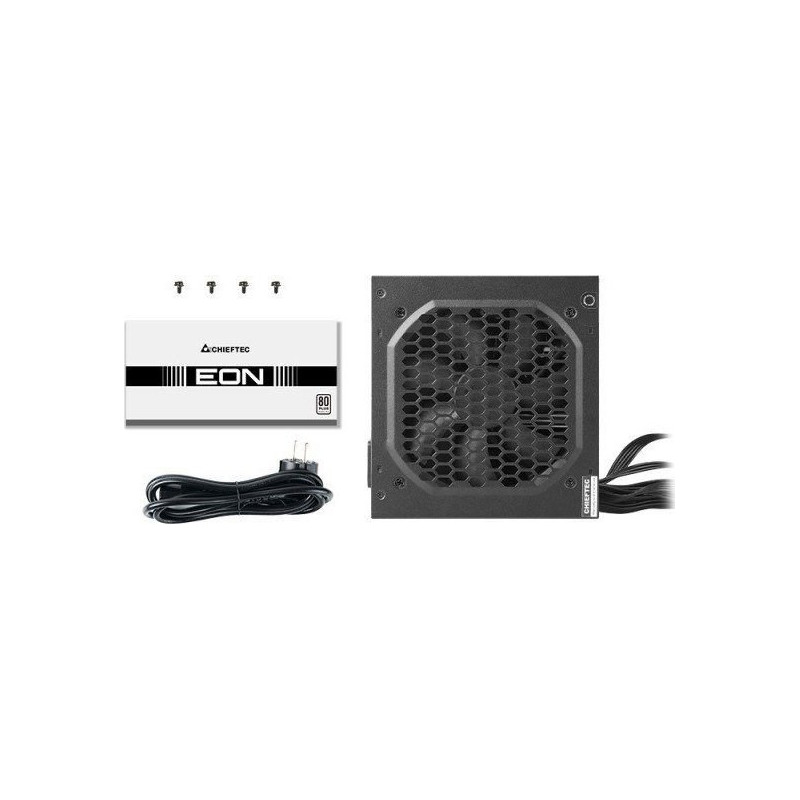

Power Supply Unit - Chieftec Eon Zpu-700s 700w
Product reference:
14-753263078445
The Chieftec EON ZPU-700S power supply has a total power of 700W and is equipped with active cooling with one 12 cm fan. It also has 80 PLUS certification, a ATX form factor case, and supports high output currents, including +5V to 20A and +12V to 53A.
Power Supply Unit - Chieftec Eon Zpu-700s 700w
Product reference:
14-753263078445
The Chieftec EON ZPU-700S power supply has a total power of 700W and is equipped with active cooling with one 12 cm fan. It also has 80 PLUS certification, a ATX form factor case, and supports high output currents, including +5V to 20A and +12V to 53A.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days
Power supply - Chieftec Eon Zpu-700s 700w
Chieftec EON ZPU-700S is a high-end power supply with 80 PLUS certification and ATX form factor. It features active cooling for efficient heat dissipation.
Main features
- Active cooling system with one fan (12 cm diameter)
- Total power: 700W, AC input voltage: 200-240V, frequency: 50-60Hz
- +5V output current up to 20A, +12V output current up to 53A and more
Design | |
|---|---|
| Cooling type | Active |
| Number of fans | 1 fan |
| Fan location | Above |
| Fan diameter | 12 cm |
| Product color | Black |
| Lighting | No |
| On/off switch | Yes |
Power | |
| Total power | 700W |
| AC input voltage | 200 - 240V |
| Maximum output current (+5V) | 20 A |
| Maximum output current (+12V) | 53 A |
| AC input frequency | 50 - 60 Hz |
| Power Factor Correction (PFC) Type | Active |
| Maximum output current (+3.3V) | 20 A |
| Maximum output current (-12V) | 0.4A |
| Maximum output current (+5Vsb) | 2.5A |
Weight and dimensions | |
| Height | 86 mm |
| Depth | 140mm |
| Weight | 1.4 kg |
| Width | 150mm |
Operation | |
| Power supply unit (PSU) form factor type | ATX |
| 80 PLUS certificate | 80 PLUS |
| ATX version | 2.3 |
Packaging details | |
| Package weight | 1.68 kg |
Ports and interfaces | |
| SATA power cable length | 450, 150 |
| Peripheral (Molex) power switches (4-pin) | 2 |
| PCI Express power connectors (6+2 pin) | 4 |
| EPS power switch (4+4 pin) | 2 |
| Motherboard power switch | 20+4 pin ATX |
| Number of SATA power switches | 4 |
| PCI Express power cable length | 55 cm |
| Peripheral (Molex) power cable length | 150, 450mm |
| Motherboard power cable length | 65 cm |
| Height | 200mm |
| Length | 300mm |
| Weight | 2200g |
| Width | 250mm |
