Power Supply - Tacens APB550B 550W 80 PLUS Bronze 20+4 pin ATX Black
Product reference:
14-8435693102496
The Tacens APB550B power supply unit provides 550 W of power and is 80 PLUS Bronze certified. It features a 20+4 pin ATX connector, a 12 cm fan, and multiple power switches for various components.
Power Supply - Tacens APB550B 550W 80 PLUS Bronze 20+4 pin ATX Black
Product reference:
14-8435693102496
The Tacens APB550B power supply unit provides 550 W of power and is 80 PLUS Bronze certified. It features a 20+4 pin ATX connector, a 12 cm fan, and multiple power switches for various components.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days

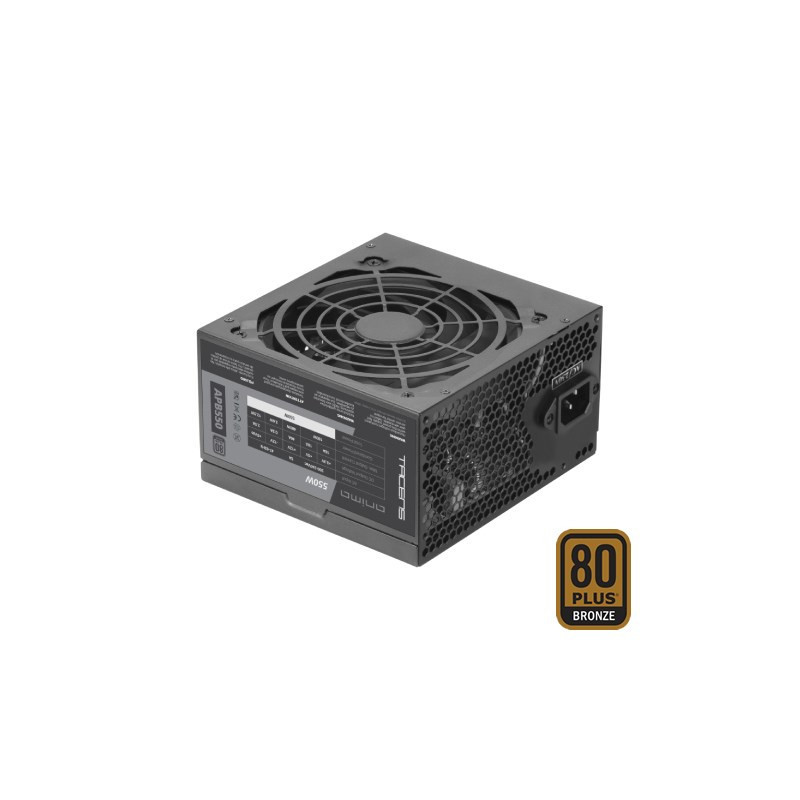

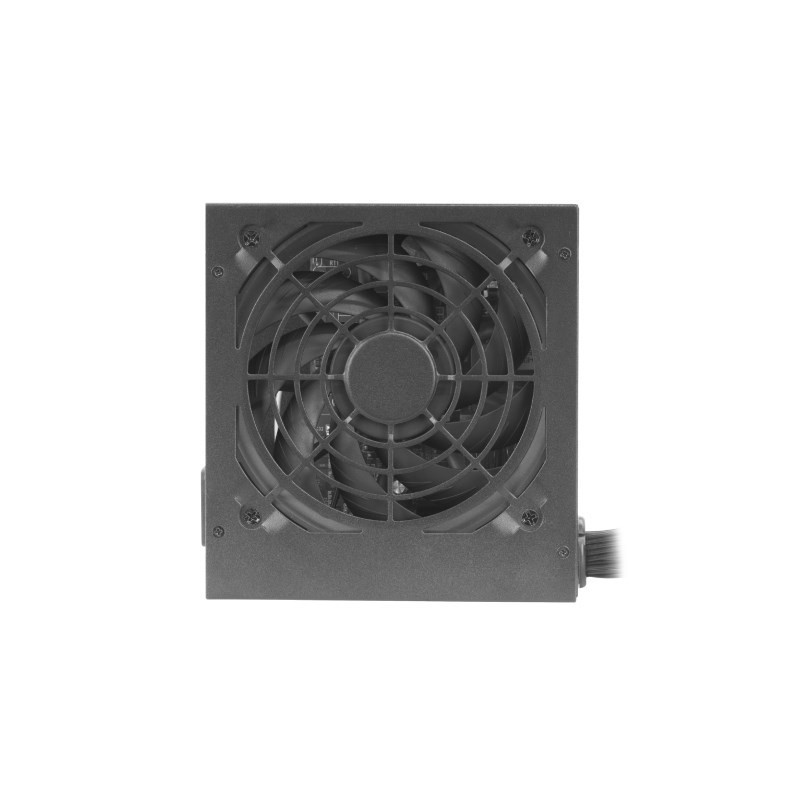

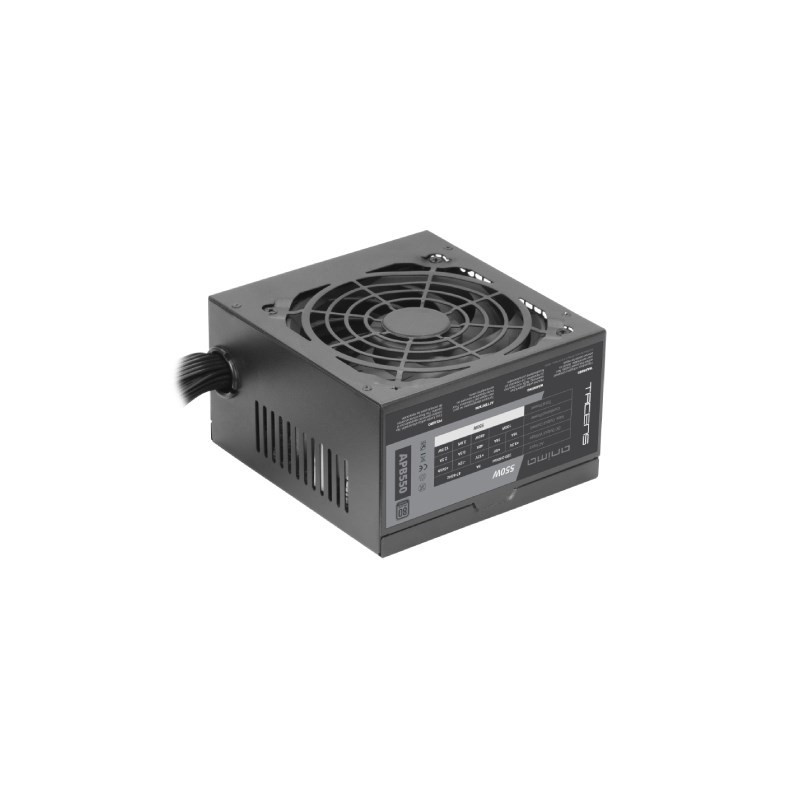

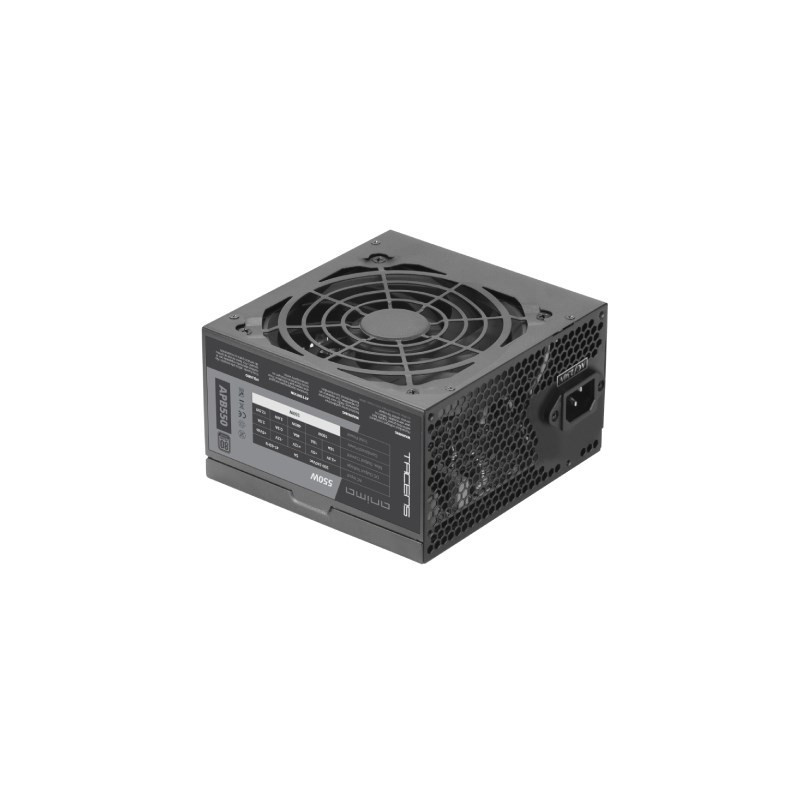

Tacens APB550B Power supply 550 W 20+4 Pin ATX Black
The Tacens APB550B power supply provides 550 W of power and is 80 PLUS Bronze certified. It features a 20+4 pin ATX connector, a 12 cm fan, and multiple power switches for various components.
- Powerful 550W output with 80 PLUS Bronze certification for energy efficiency.
- Equipped with a 12 cm fan for optimal cooling and a noise level of just 14 dB.
- Incompatible design with multiple connectors, including 20+4 pin ATX and 3 SATA power connectors.
- Comprehensive power protection functions, including short circuit and overvoltage protection.
Design | |
|---|---|
| Product color | Black |
| Number of fans | 1 fan |
| Fan diameter | 12 cm |
Power | |
| AC input frequency | 47 - 63 Hz |
| Connected power (-12V) | 3.6W |
| Connected power (+12V) | 480W |
| Maximum output current (+5V) | 18 A |
| AC input voltage | 220 - 240V |
| Connected power (+5Vsb) | 12.5W |
| Total power | 550W |
| Maximum output current (+3.3V) | 18 A |
| Connected power (+5V) | 100W |
| Maximum output current (-12V) | 0.3A |
| Input current | 5 A |
| Power protection functions | Short circuit, Overvoltage, Overpower, Undervoltage |
| Maximum output current (+5Vsb) | 2.5A |
| Efficiency | 85% |
| Maximum output current (+12V) | 40 A |
| Connected power (+3.3V) | 100W |
Weight and dimensions | |
| Weight | 1.35 kg |
| Width | 150mm |
| Depth | 140mm |
| Height | 85 mm |
Operation | |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certificate | 80 PLUS Bronze |
| Purpose | PC |
| Noise level | 14 dB |
Ports and interfaces | |
| Wire type | Incompatible |
| Motherboard power connector | 20+4 pin ATX |
| PCI Express power connectors (6+2 pin) | 1 |
| Number of SATA power connectors | 3 |
| EPS power connector (4+4 pin) | Yes |
| Number of PATA power connectors | 2 |
| Height | 200mm |
| Length | 350mm |
| Weight | 1800g |
| Width | 250mm |
