Power Supply - Tacens Anima APB650 650 W 80 PLUS Bronze 24-pin ATX Black
Product reference:
14-8435693107521
The Tacens Anima APB650 power supply unit delivers 650 W of power with 80 PLUS Bronze certification. It features a 12 cm active cooling fan, a 24-pin ATX motherboard connector, and multiple power connectors, including four SATA and two PCI Express.
Power Supply - Tacens Anima APB650 650 W 80 PLUS Bronze 24-pin ATX Black
Product reference:
14-8435693107521
The Tacens Anima APB650 power supply unit delivers 650 W of power with 80 PLUS Bronze certification. It features a 12 cm active cooling fan, a 24-pin ATX motherboard connector, and multiple power connectors, including four SATA and two PCI Express.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days

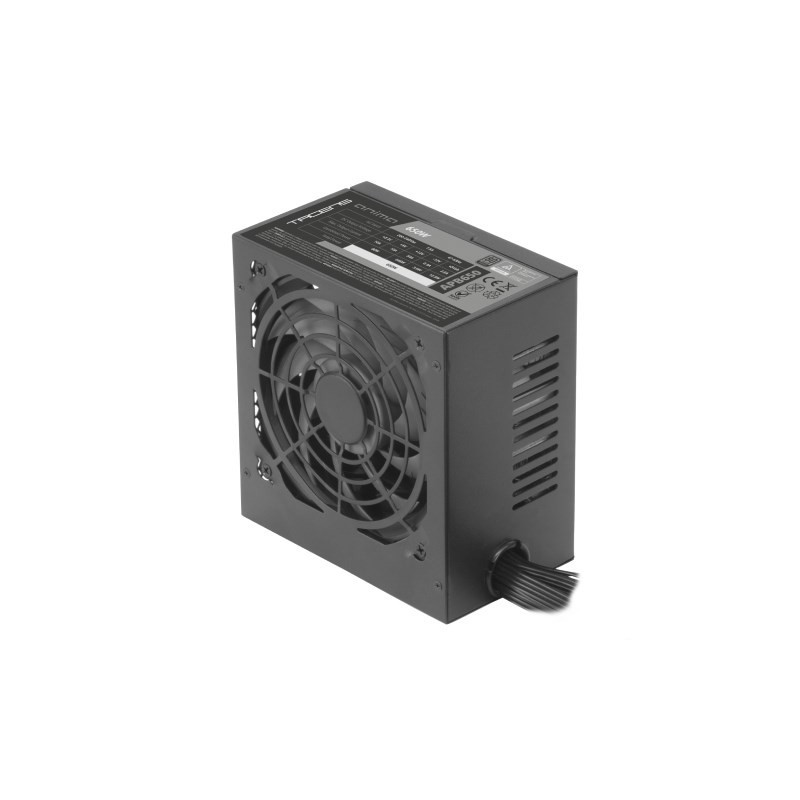

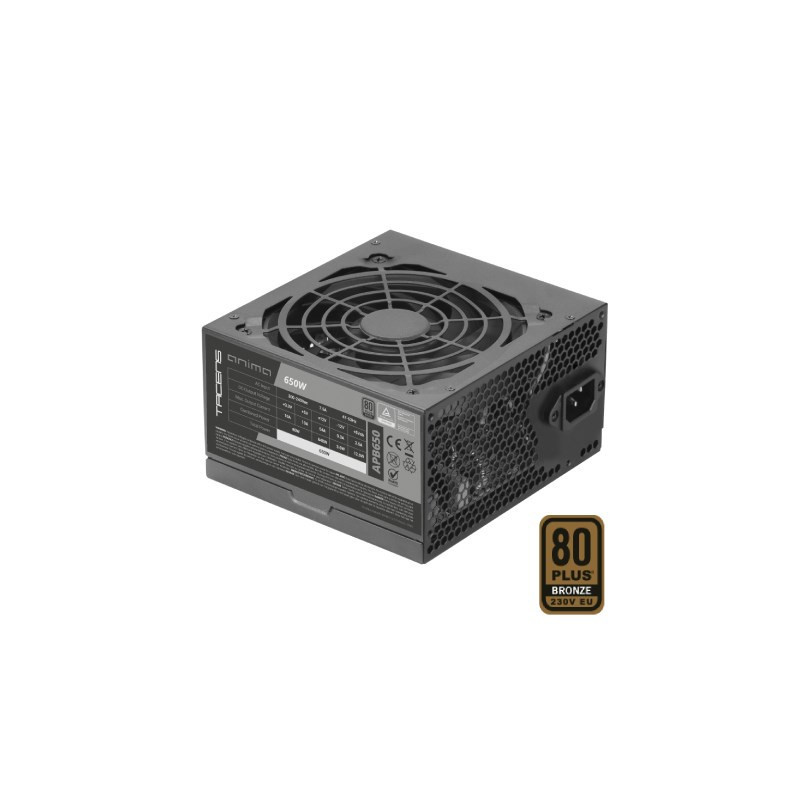

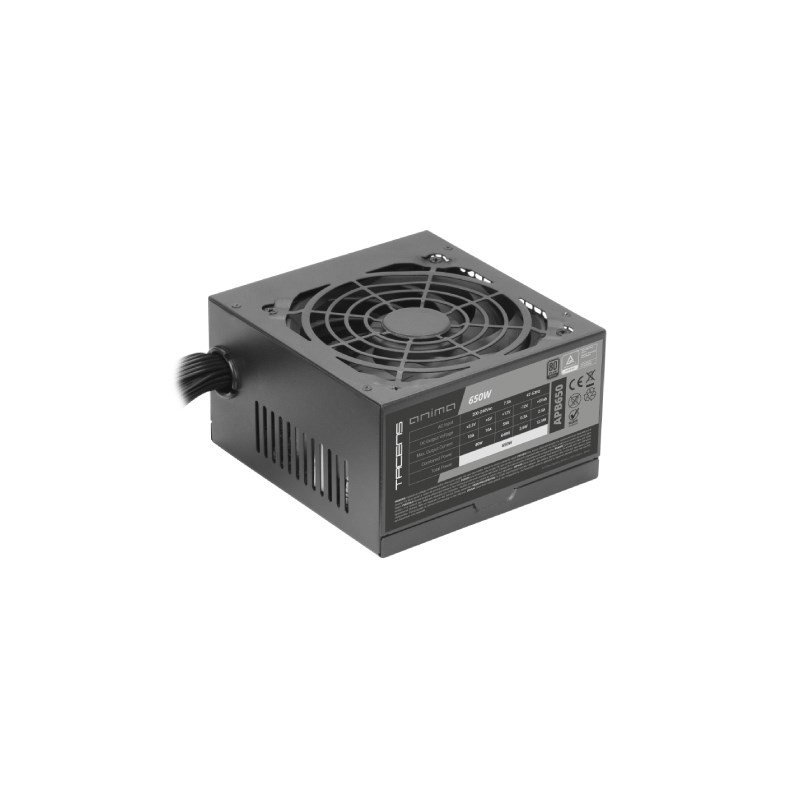

Tacens Anima APB650 Power Supply 650 W 24-Pin ATX Black
The Tacens Anima APB650 power supply provides a total power of 650 W with 80 PLUS Bronze certification. It features one 12 cm active cooling fan, 24-pin ATX motherboard connectors, and multiple power switches, including four SATA and two PCI Express.
- Powerful 650W output with 80 PLUS Bronze certification for energy efficiency.
- Active cooling system with 12 cm fan for optimal performance and low noise (14 dB).
- Multiple connectors are included: 4 SATA, 2 PCI Express (6+2 pin) and 24-pin ATX, ensuring universal compatibility.
- Reliable protection functions against low voltage, high current, short circuit and high voltage.
Design | |
|---|---|
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 pc. |
| Fan location | Above |
| Lighting | None |
| On/off switch | Yes |
| Product color | Black |
Power | |
| Maximum output current (+5Vsb) | 2.5A |
| Total power (+5Vsb) | 12.5W |
| Total power (-12V) | 3.6W |
| Total power (+3.3V) | 80W |
| Maximum output current (+12V) | 54 A |
| Total power (+5V) | 80W |
| Maximum output current (+5V) | 10 A |
| Power factor correction (PFC) type | Active |
| Efficiency | 85% |
| Maximum output current (-12V) | 0.3A |
| Total power | 650W |
| Maximum output current (+3.3V) | 10 A |
| AC input frequency | 47 - 63 Hz |
| Total power (+12V) | 648 W |
| AC input voltage | 200 - 240V |
| Input current | 7.5A |
| Power protection functions | Low voltage, High current, Short circuit, High voltage, High power |
Weight and dimensions | |
| Height | 85 mm |
| Width | 150mm |
| Depth | 145mm |
| Weight | 1.36 kg |
Performance | |
| Power supply unit (PSU) form factor | ATX |
| Noise level | 14 dB |
| Purpose | PC |
| 80 PLUS certificate | 80 PLUS Bronze |
Ports and interfaces | |
| Number of SATA power connectors | 4 |
| PCI Express power connectors (6+2 pin) | 2 |
| Motherboard power connector | 24-pin ATX |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| ATX power connector (24-pin) | Yes |
| Cable type | Incompatible |
| CPU power connector (4+4 pin) | Yes |
| Height | 200mm |
| Length | 350mm |
| Weight | 2000 grams |
| Width | 250mm |
