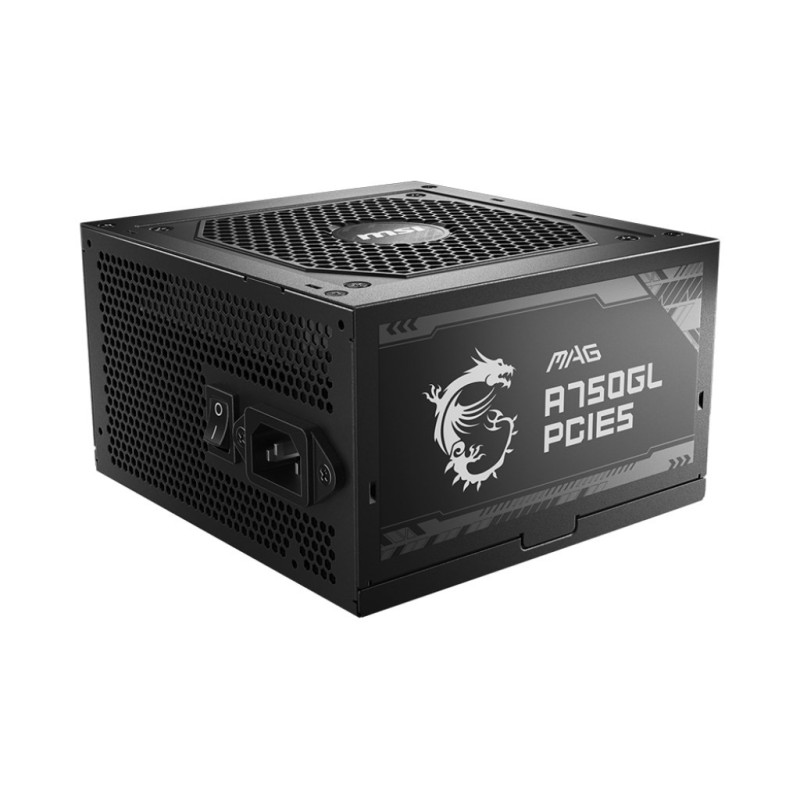

MSI Mag A750GL 750W ATX Black
MSI MAG A750GL - a high-quality power supply for PC systems, offering 750 W of power and efficiency.
Main features:
- Fully modular cable system for flexibility and organization

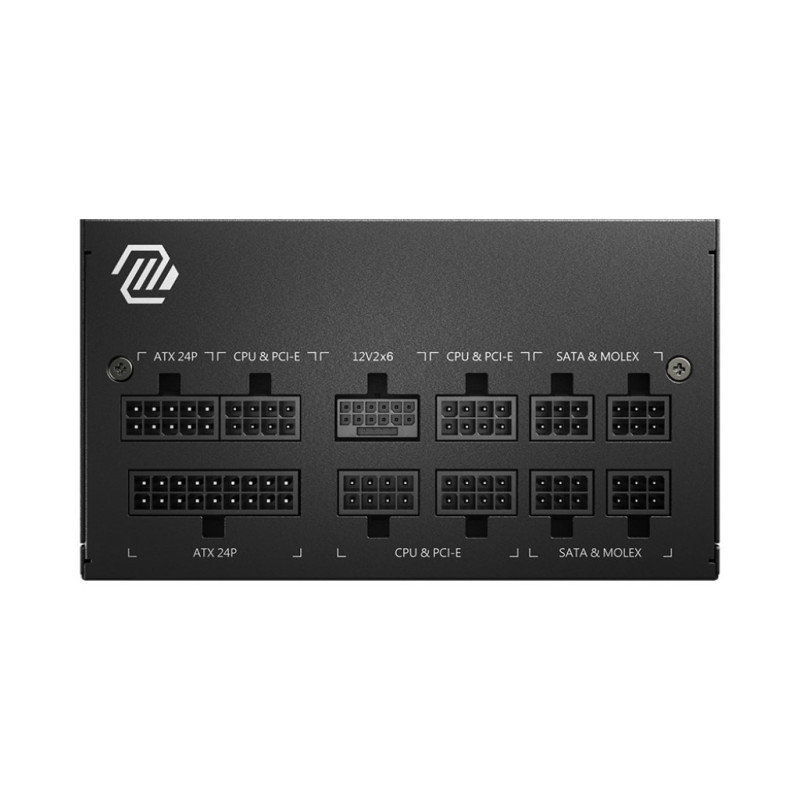

- EPS, Molex, PCI Express and ATX connectors
- 12 cm fan for efficient cooling
- Advanced protection functions: over-power, over-temperature, short circuit, over-voltage and over-current protection
Design | |
|---|---|
| Product color | Black |
| Lighting | No |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 |
| On/off switch | Yes |
Power | |
| Power protection functions | Overpower, overheating, short circuit, overvoltage, overcurrent |
| Total power | 750W |
| Connected power (+3.3V) | 110W |
| Power Factor Correction (PFC) Type | Active |
| Connected power (+12V) | 744 W |
| Efficiency | 90% |
| AC input frequency | 47 - 63 Hz |
| AC input voltage | 100 - 240V |
| Maximum output current (+3.3V) | 20 A |
| Maximum output current (-12V) | 0.3A |
| Maximum output current (+5V) | 20 A |
| Connected power (+5Vsb) | 12.5W |
| Maximum output current (+12V) | 62 A |
| Connected power (+5V) | 110W |
| Maximum output current (+5Vsb) | 2.5 A |
| Maximum input current (@110V) | 8 A |
| Maximum input current (@220V) | 4 A |
| Connected power (-12V) | 3.6W |
Weight and dimensions | |
| Depth | 140mm |
| Height | 86 mm |
| Width | 150mm |
Operation | |
| Purpose | PC |
| Power supply unit (PSU) shape | ATX |
| 80 PLUS certificate | 80 PLUS Gold |
Packaging details | |
| Packaging type | Box |
Ports and interfaces | |
| Cable type | Fully modular |
| EPS power connector (8-pin) | No |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| PCI Express power connectors (6+2 pin) | 3 |
| ATX power connector (24-pin) | No |
| EPS power connector (4+4 pin) | Yes |
| Processor power connector (4+4 pin) | Yes |
| Power connector for motherboard | 20+4 pin ATX |
| ATX power connector (20+4 pin) | No |
| Number of SATA power connectors | 8 |
| Power cable length for motherboard | 45 cm |
| | |
