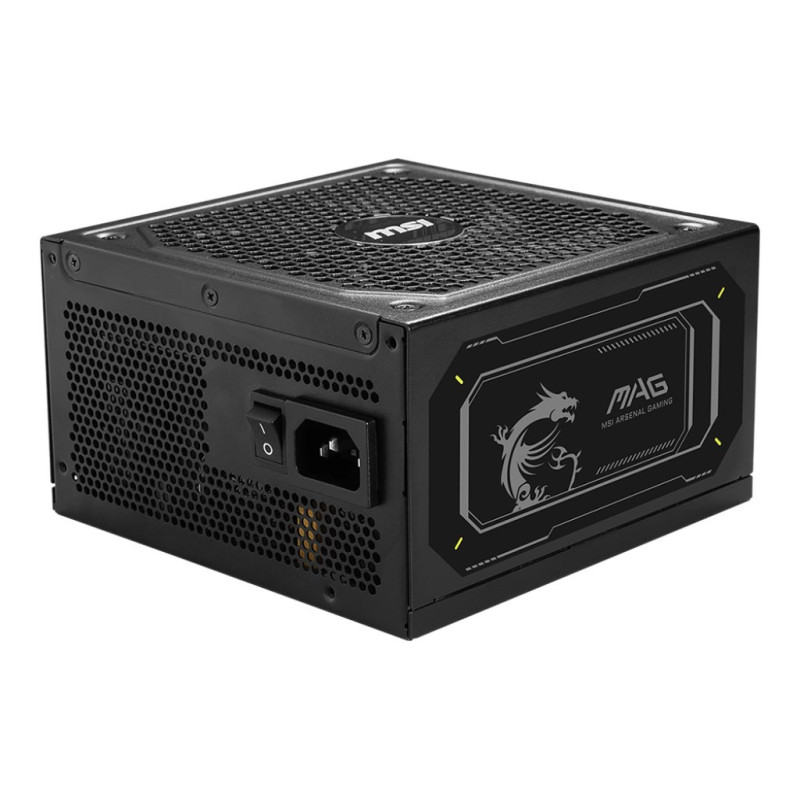

Power Supply - MSI MAG A1000GL 1000W 80 PLUS Gold Fully Modular ATX Black
Product reference:
14-4711377246729
The MSI MAG A1000GL power supply delivers 1000W of power and is 80 PLUS Gold rated. It features a fully modular design, a single 24-pin ATX motherboard connector, and multiple SATA power connectors.
Power Supply - MSI MAG A1000GL 1000W 80 PLUS Gold Fully Modular ATX Black
Product reference:
14-4711377246729
The MSI MAG A1000GL power supply delivers 1000W of power and is 80 PLUS Gold rated. It features a fully modular design, a single 24-pin ATX motherboard connector, and multiple SATA power connectors.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
MSI MAG A1000GL PCIE5 II Power Supply 1000 W Black
The MSI MAG A1000GL power supply provides 1000 W of power with an 80 PLUS Gold efficiency rating. It features a fully modular design, a single 24-pin ATX motherboard connector, and multiple SATA power connectors.
- Powerful 1000W output with 80 PLUS Gold certification for high efficiency.

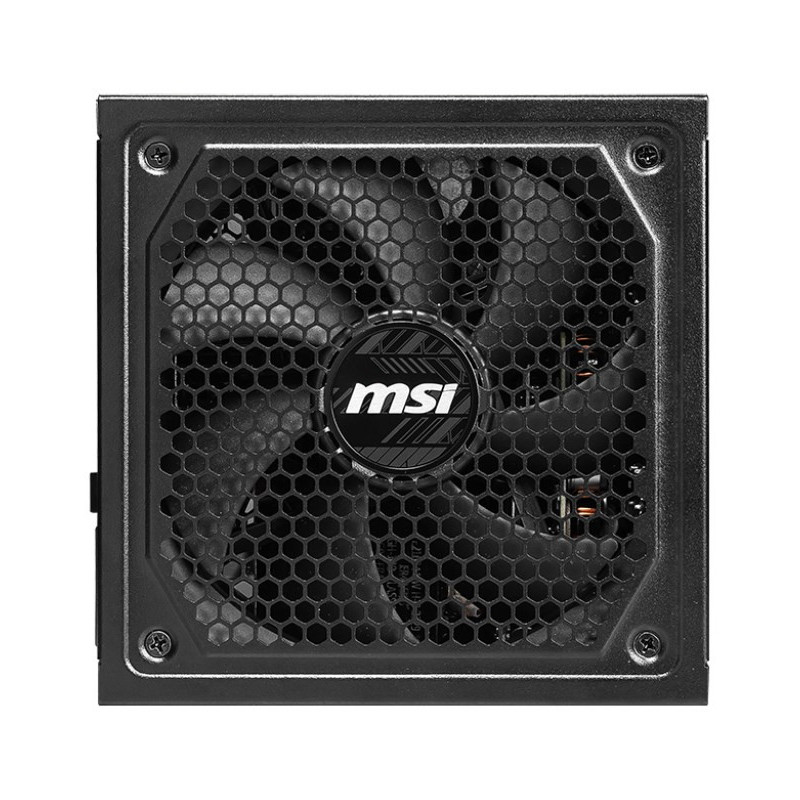

- Active cooling system with one 13.5 cm fan for optimal performance.
- Fully modular cable design for easy installation and improved airflow.
- Comprehensive power protection features to protect your computer components.
Design | |
|---|---|
| Fan speed | 500 - 1800 RPM |
| Cooling type | Active |
| Product color | Black |
| On/Off switch | Yes |
| Number of fans | 1 fan |
| Fan diameter | 13.5 cm |
Power | |
| +12V number of tracks | 1 |
| Power Factor Correction (PFC) Type | Active |
| Total power (+5V) | 120W |
| Maximum output current (-12V) | 0.3A |
| Maximum output current (+12V) | 83.3 A |
| Total power (-12V) | 3.6W |
| Maximum output current (+5Vsb) | 3 A |
| Total power (+5Vsb) | 15W |
| Total power (+12V) | 999.6W |
| Total power (+3.3V) | 120W |
| Maximum output current (+3.3V) | 22 A |
| Maximum output current (+5V) | 22 A |
| Power protection functions | Low voltage, Over current, Overheating, Over power, Short circuit, Over voltage |
| AC input voltage | 100 - 240V |
| AC input frequency | 50/60Hz |
| Efficiency | 90% |
| Total power | 1000W |
Weight and dimensions | |
| Width | 150mm |
| Weight | 169 g |
| Height | 86 mm |
| Depth | 150mm |
Performance | |
| ATX version | 3.1 |
| Bearing technology | FDB |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certificate | 80 PLUS Gold |
| Purpose | PC |

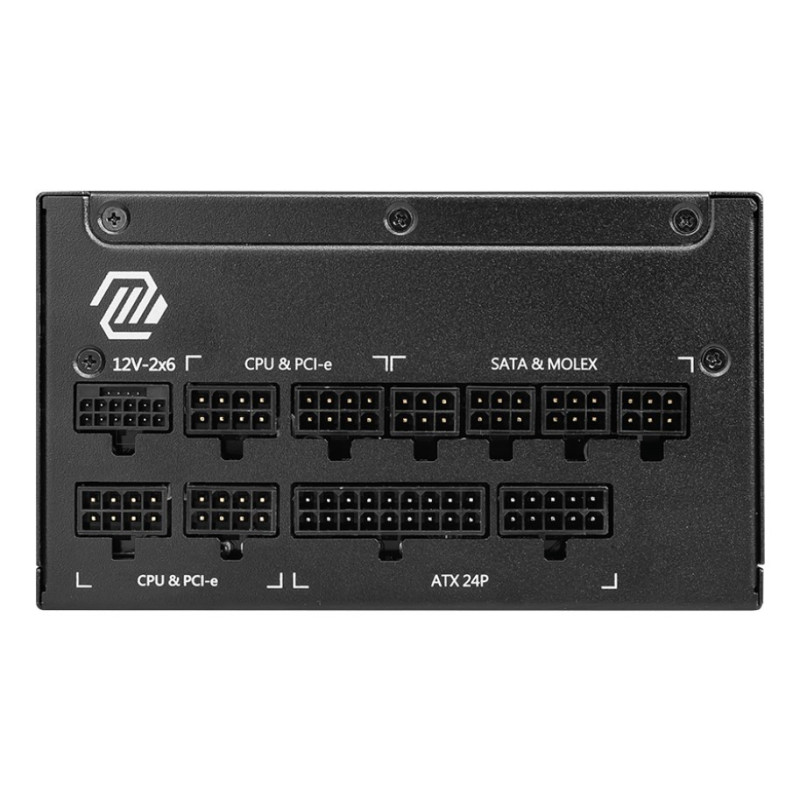

Connectors and interfaces | |
| PCI Express power connectors (16-pin) | 1 |
| Peripheral (Molex) power cable length | 450mm, 500mm |
| Number of SATA power connectors | 12 |
| SATA power cable length | 500mm, 150mm |
| EPS power connector (4+4 pin) | Yes |
| Motherboard power cable length | 60cm |
| Motherboard power connector | 24-pin ATX |
| PCI Express power connectors (6+2 pin) | 4 |
| EPS power connector (8-pin) | No |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Cable type | Fully modular |
| Height | 120mm |
| Length | 200mm |
| Weight | 250 g |
| Width | 200mm |
