Power Supply - DeepCool PN850M 850W 80 PLUS Gold Fully Modular ATX Black
Product reference:
14-6933412741053
The DeepCool PN850M power supply delivers 850W of power and is 80 PLUS Gold certified. It features a fully modular design, a 12cm fan on top, and a wide range of connectors, including 8 SATA and 3 PCI Express power connectors.
Power Supply - DeepCool PN850M 850W 80 PLUS Gold Fully Modular ATX Black
Product reference:
14-6933412741053
The DeepCool PN850M power supply delivers 850W of power and is 80 PLUS Gold certified. It features a fully modular design, a 12cm fan on top, and a wide range of connectors, including 8 SATA and 3 PCI Express power connectors.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
DeepCool PN850M Power supply 850 W 20+4 Pin ATX Black
DeepCool PN850M power supply delivers 850W of power with an 80 PLUS Gold efficiency rating. It features a fully modular design, one 12cm top fan, and multiple connectors, including 8 SATA and 3 PCI Express power connectors.
- High efficiency class with 80 PLUS Gold certification, ensuring optimal energy use.
- Reliable protection functions, including overvoltage protection, short circuit and overheating protection.
- Fully modular design for easy cable management and improved airflow.
- Powerful 850 W output with maximum current of 70.5 A + 12V line.
Technical data | |
|---|---|
| Certificates of conformity | RoHS, CE, WEEE, RCM, CCC, EAC, FCC |
| Sustainability compliance | Yes |
| Sustainability certificates | Triman, ErP |
Design | |
| Number of fans | 1 fan |
| Fan location | Above |
| Fan diameter | 12 cm |
| On/Off switch | Yes |
| Cooling type | Active |
Power data | |
| Total power (+ 12V ) | 846 W |
| Shelf life | 16ms |
| Total power (+ 3.3V ) | 110W |
| Power protection functions | Overvoltage and overcurrent protection, overpower, no-load operation, low voltage, short circuit, overvoltage, overheating |
| Power factor correction (PFC) type | Active |
| Maximum output current (- 12V ) | 0.3A |
| Maximum output current (+ 12V ) | 70.5 A |
| Total power (- 12V ) | 3.6W |
| Total power | 850W |
| Maximum output current (+ 5V ) | 20 A |
| Maximum output current (+ 3.3V ) | 20 A |
| Total power (+ 5V ) | 110W |
| Maximum output current (+ 5Vsb ) | 3 A |
| Total power (+ 5Vsb ) | 15W |
| Efficiency | 90% |
| Power quality signal delay range | 100 - 150ms |
| AC voltage input | 100 - 240V |
| Input current | 10 - 5 A |
| AC input frequency | 50/60Hz |
Operating conditions | |
| Operating temperature (OT) | 0 - 40 °C |
Weight and dimensions | |
| Width | 150mm |
| Depth | 140mm |
| Height | 86 mm |
Operation | |
| Mean Time Between Failures (MTBF) | 100000 hours |
| ATX version | 3.1 |
| Bearing technology | FDB |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| 80 PLUS certificate | 80 PLUS Gold |

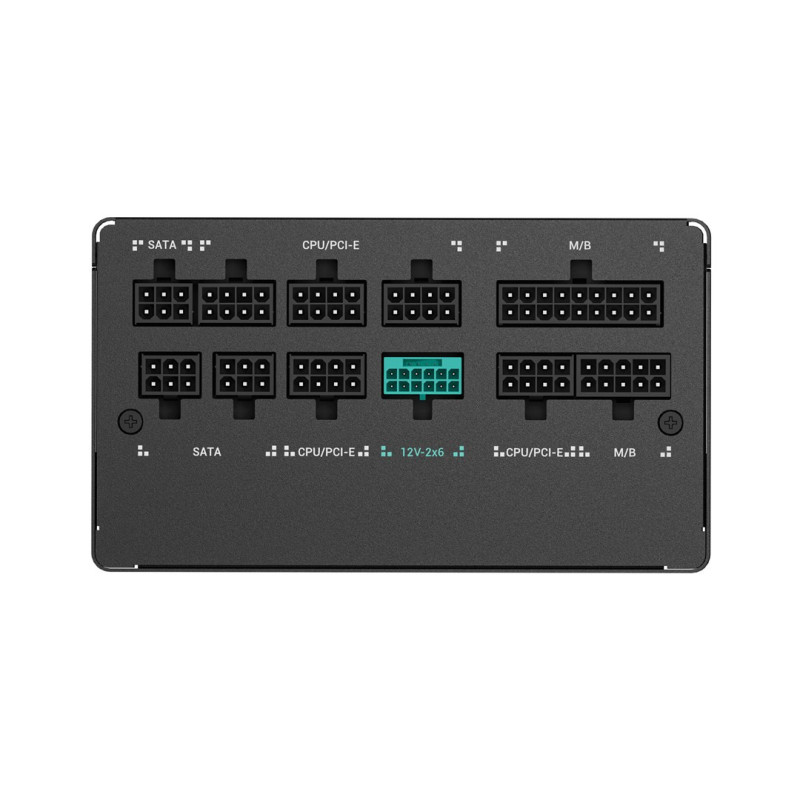

Connectors and interfaces | |
| Number of SATA power connectors | 8 |
| PCI Express power connectors (6+2 pin) | 3 |
| Motherboard power connector | 20+4 pin ATX |
| CPU power connector (4+4 pin) | Yes |
| Peripheral (Molex) power connectors ( 4-pin ) | 2 |
| PCI Express power connector ( 16-pin ) | 1 |
| Height | 200mm |
| Length | 300mm |
| Weight | 1950 years |
| Width | 250mm |
