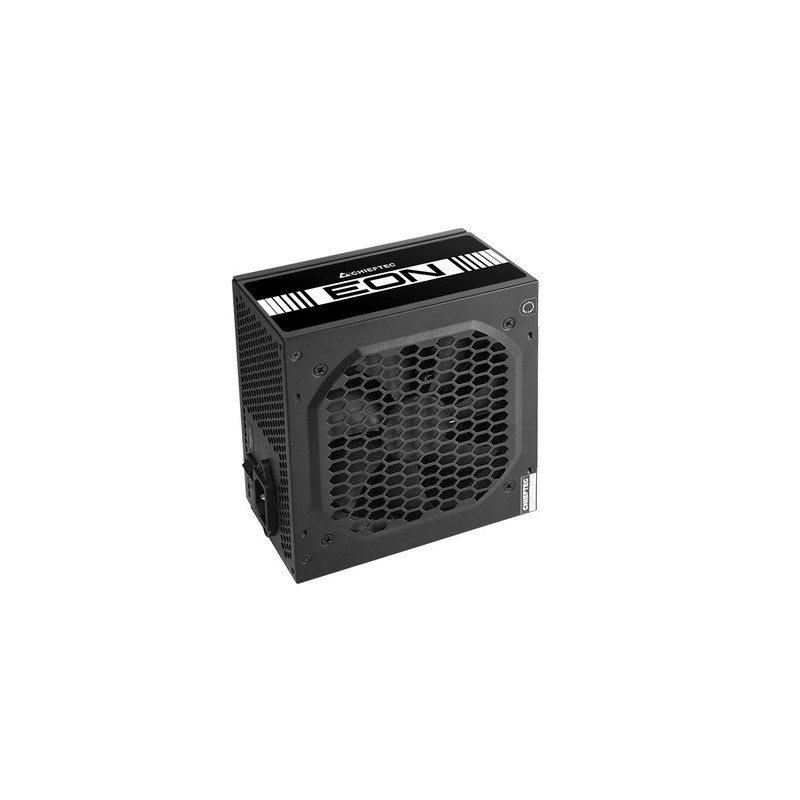

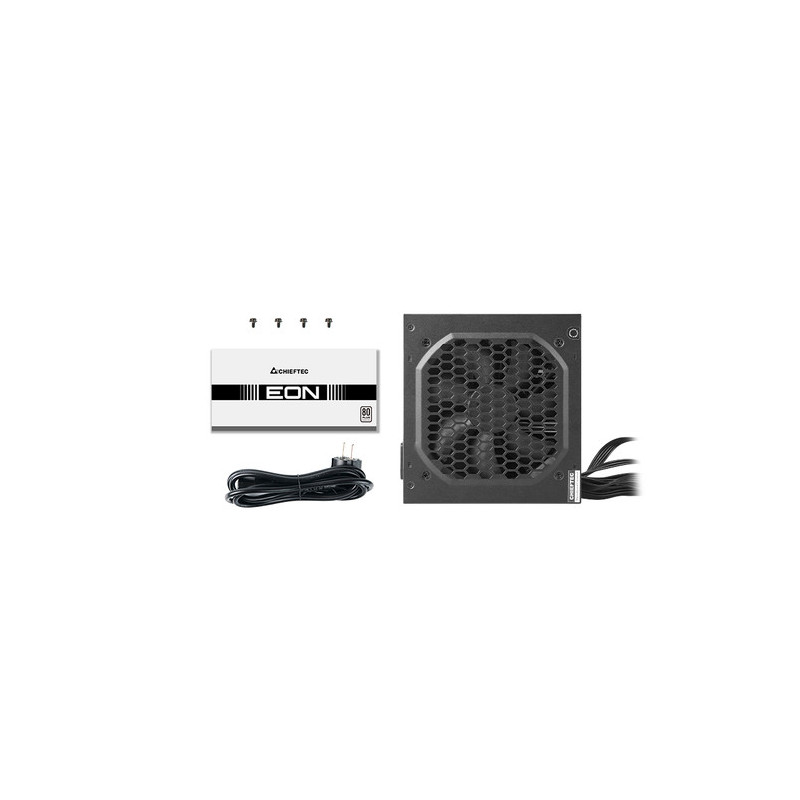

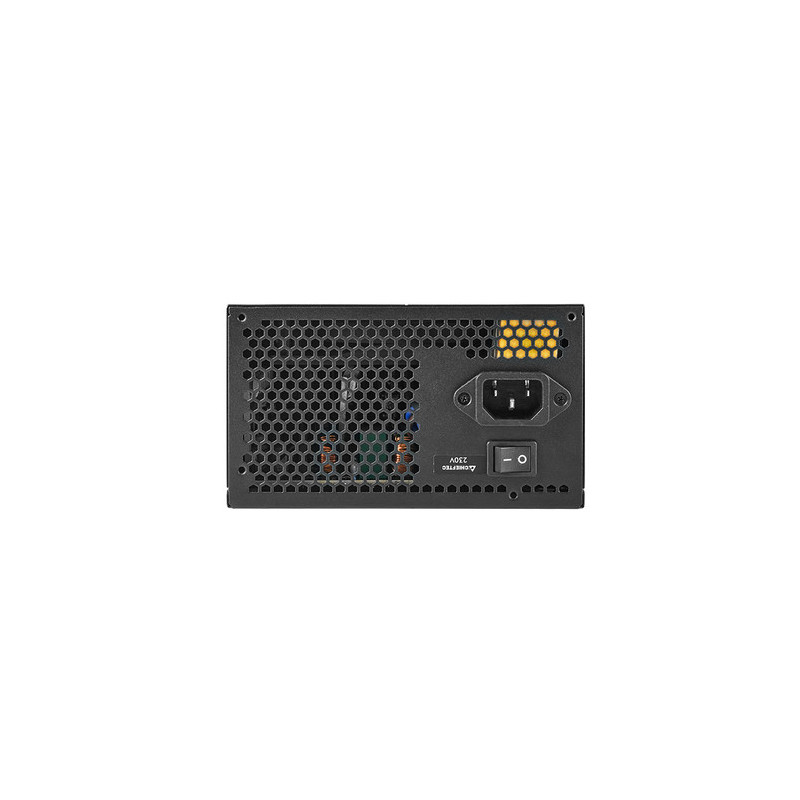

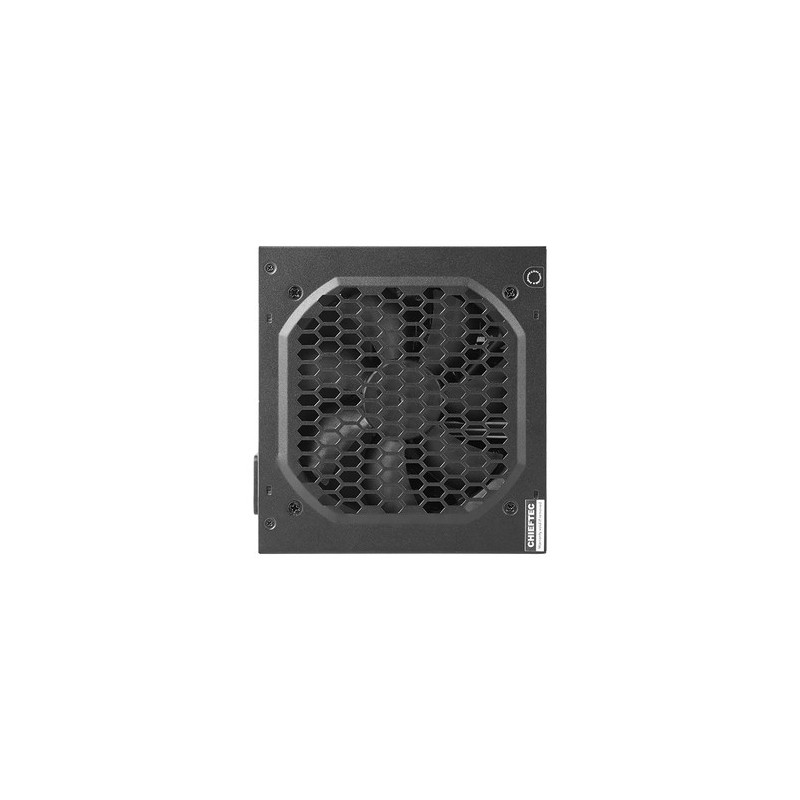

Power supply Chieftec EON ZPU-700S 700W

Product reference: 3-0753263078445

Power supply Chieftec EON ZPU-700S 700W

Product reference: 3-0753263078445

Power supply Chieftec EON ZPU-700S 700W

You have 3 products in compare list, please remove someone and try again

Add to compare

64,61 €

Product in warehouse

Guarantee
24 month

Delivery from Europe in
10 - 15
business days

Your message has been successfully sent!

Fill in the required fields*

Design
Backlight	From
Fan diameter	12 cm
Number of fans	1 fan
Fan location	Top
Modular cabling	From
Cooling type	Active
On/off switch	Yes
Product colour	Black
Power
Power protection features	OVP (overvoltage protection), UVP (undervoltage protection), AFC (automatic fan speed control), OPP (overload protection), SIP (surge and shock protection), SCP (short circuit protection)
Power Factor Correction (PFC) type	Active
Max output current (+12V)	53 A
Max output current (+5Vsb)	2.5A
Max output current (-12V)	0.4A
Total power	700W
AC input frequency	50 - 60 Hz
AC input voltage	200 - 240V
Max output current (+5V)	20 A
Max output current (+3.3V)	20 A
Weight dimensions
Width	150mm
Height	86 mm
Depth	140mm
Weight	1.4 kg
Performance
ATX version	2.3
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS
Packaging data
Package weight	1.68 kg
Ports interfaces
SATA power cable length	150, 450mm
Number of SATA power connectors	4
Motherboard power connector	20+4 pin ATX
Peripheral (Molex) power connectors (4-pin)	2
PCI Express power connectors (6+2 pin)	4
PCI Express power cable length	55 cm
EPS power connector (4+4 pin)	2
Length of EPS power connectors (4+4 pin)	70 cm
Motherboard power cable length	65 cm
Peripheral (Molex) power cable length	450mm, 150
Safety warning
Hazard pictogram(s)	GHS02: Flammable, GHS07: Harmful, GHS09: Environmental hazard
