Power Supply - ASUS TUF Gaming 850W Gold 80 PLUS Fully Modular ATX Black
Product reference:
14-4711081786573

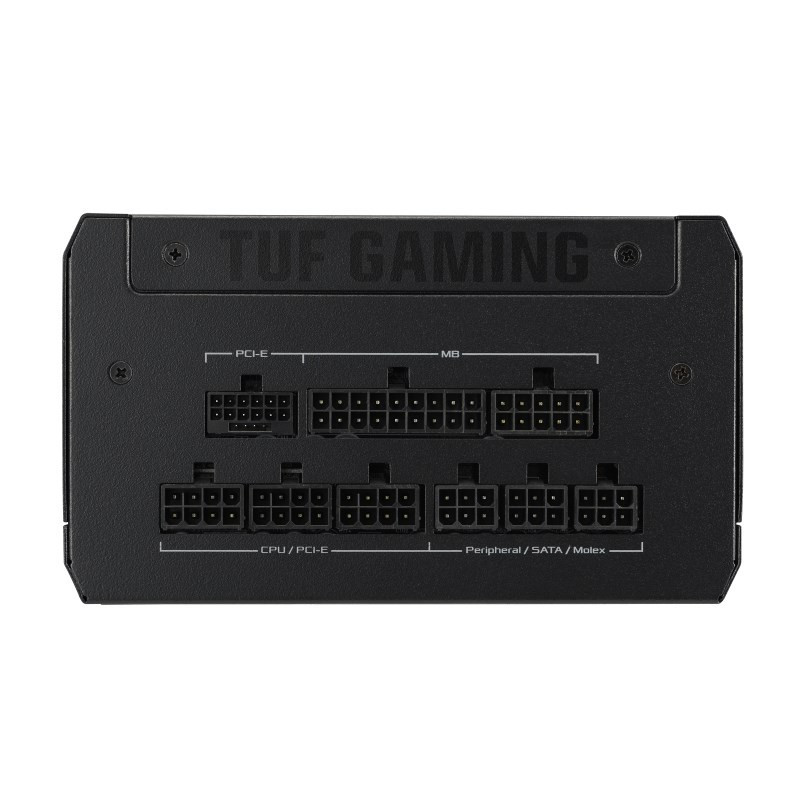

The ASUS TUF Gaming 850W Gold power supply is 80 PLUS Gold certified and has a total power of 850W with active cooling and a single 13.5cm fan. It features a wide range of connectors, including a 24-pin ATX motherboard connector, three 8-pin PCI Express connectors and five SATA power connectors, all with a fully modular design.
Power Supply - ASUS TUF Gaming 850W Gold 80 PLUS Fully Modular ATX Black
Product reference:
14-4711081786573
The ASUS TUF Gaming 850W Gold power supply is 80 PLUS Gold certified and has a total power of 850W with active cooling and a single 13.5cm fan. It features a wide range of connectors, including a 24-pin ATX motherboard connector, three 8-pin PCI Express connectors and five SATA power connectors, all with a fully modular design.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
ASUS TUF Gaming 850W Gold Power Supply 24-Pin ATX Black
The ASUS TUF Gaming 850W Gold power supply unit has 80 PLUS Gold certification and a total output 850W with active cooling and one 13.5 cm fan. It has several switches, such as 24-pin ATX motherboard switch, three 8-pin PCI Express switches and five SATA power switches, all with a fully modular design.
- High efficiency class with 80 PLUS Gold certification, ensuring reliable power supply and lower energy costs.
- Powerful 850W total power output, suitable for high-end gaming PCs and demanding applications.
- Fully modular cable design for easy installation and improved airflow in your computer case.
- Comprehensive protection functions, including over-power, short-circuit and over-voltage protection.
Technical Data | |
|---|---|
| Sustainability Certificates | RoHS |
| Certificates of Conformity | RoHS |
Design | |
| Product Color | Black |
| Cooling Type | Active |
| Number of Fans | 1 pc. |
| Fan Diameter | 13.5 cm |
Power Data | |
| Maximum Output Current (+5Vsb) | 3 A |
| Power Protection Features | Overpower, Short circuit, Overvoltage, Undervoltage, Overcurrent |
| AC Input Voltage | 100 - 240V |
| Efficiency | 92% |
| Total Power | 850W |
| Combined Power (+5V) | 130W |
| Maximum Output Current (+3.3V) | 25 A |
| Combined Power (+3.3V) | 130W |
| Maximum Output Current (+12V) | 70.8 A |
| Combined Power (+12V) | 850W |
| Maximum Output Current (-12V) | 0.8A |
| Combined Power (+5Vsb) | 15W |
| Combined Power (-12V) | 9.6W |
| Maximum Output Current (+5V) | 25 A |
Weight and Dimensions | |
| Width | 150mm |
| Weight | 2.38 kg |
| Depth | 150mm |
| Height | 86 mm |
Operation | |
| 80 PLUS Certificate | 80 PLUS Gold |
| Purpose | PC |
| ATX Version | 3.0 |
| Power Supply Unit (PSU) Format | ATX |
Packaging Details | |
| Package Weight | 3.07 kg |
| Packaging Depth | 200mm |
| Package Width | 310mm |
| Packaging Type | Box |
| Package Height | 108 mm |
Package Contents | |
| Cables Included | AC, CPU, PCIe, Peripherals (Molex), SATA |
Ports and Interfaces | |
| Peripheral (Molex) Power Cable Length | 150, 400mm |
| Motherboard Power Switch | 24-pin ATX |
| PCI Express Power Cable Length | 67.5 cm |
| Number of SATA Power Switches | 5 |
| CPU Power Switch (4+4 pin) | Yes |
| PCI Express Power Switches (8-pin) | 3 |
| CPU Power Cable Length | 65 cm |
| PCI Express Power Switches (16-pin) | 1 |
| Peripheral (Molex) Power Switches (4-pin) | 4 |
| SATA Power Cable Length | 400, 120mm |
| Cable Type | Fully Modular |
| Motherboard Power Cable Length | 61 cm |
| Height | 108 mm |
| Length | 200mm |
| Weight | 3070 grams |
| Width | 310mm |
