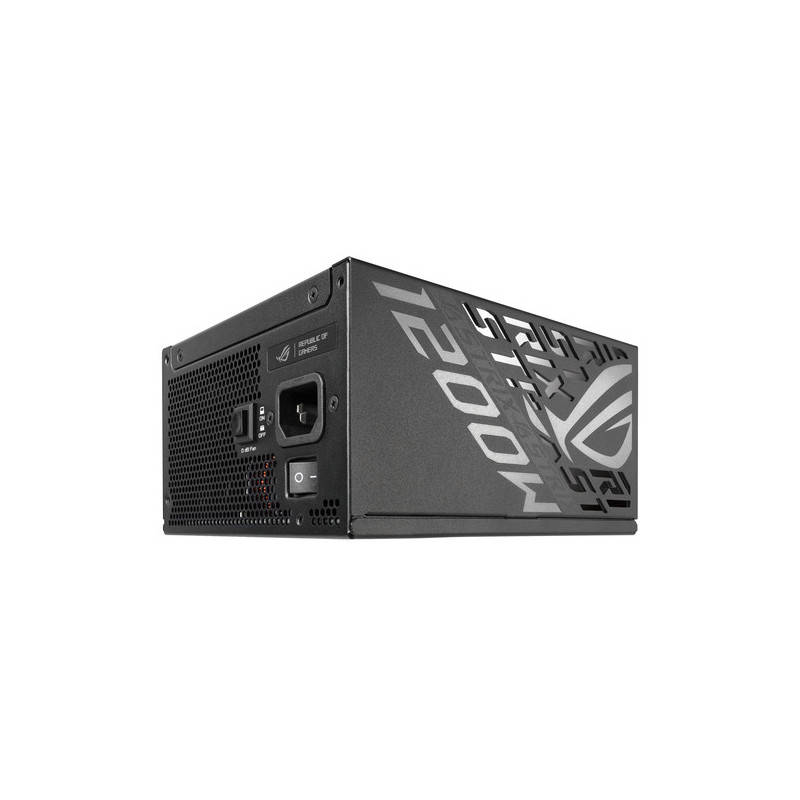

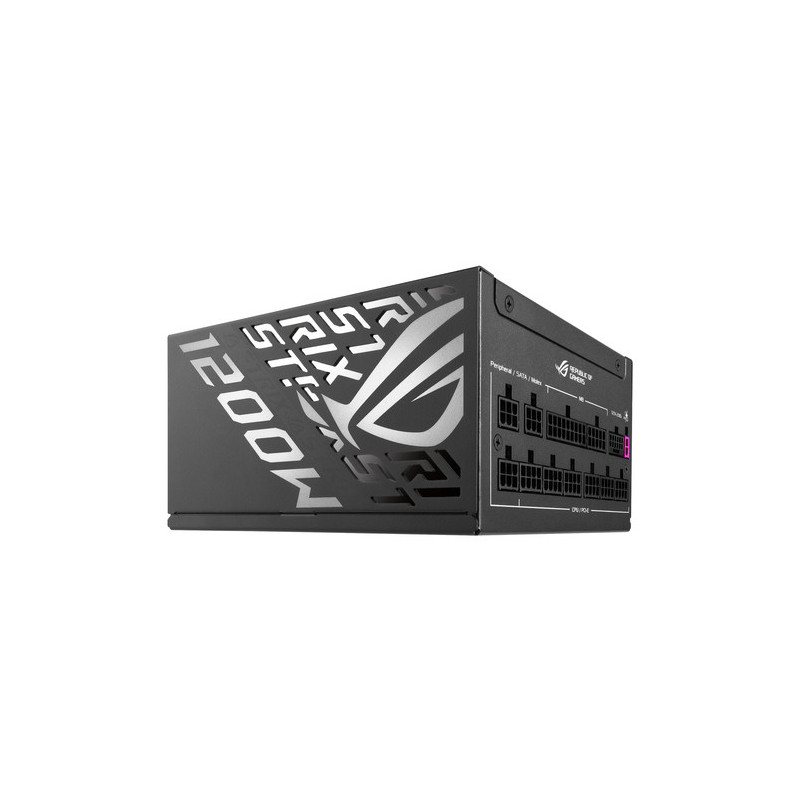

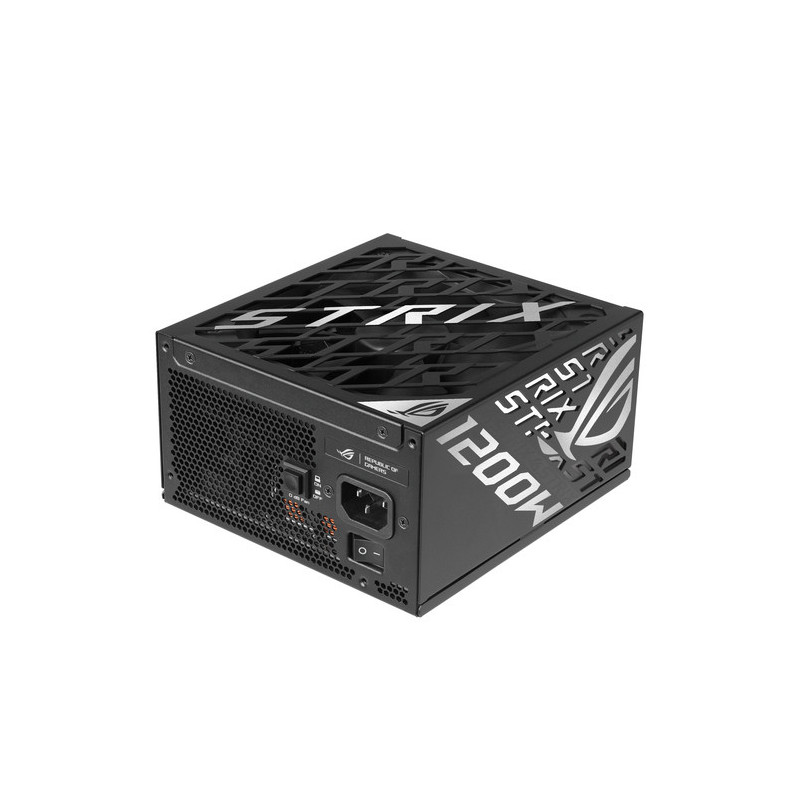

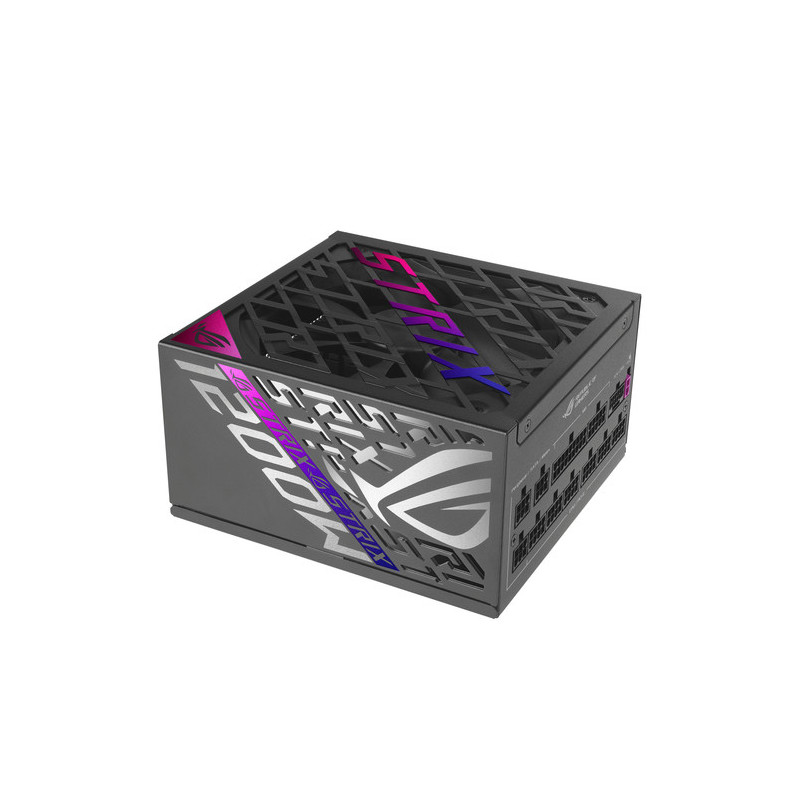

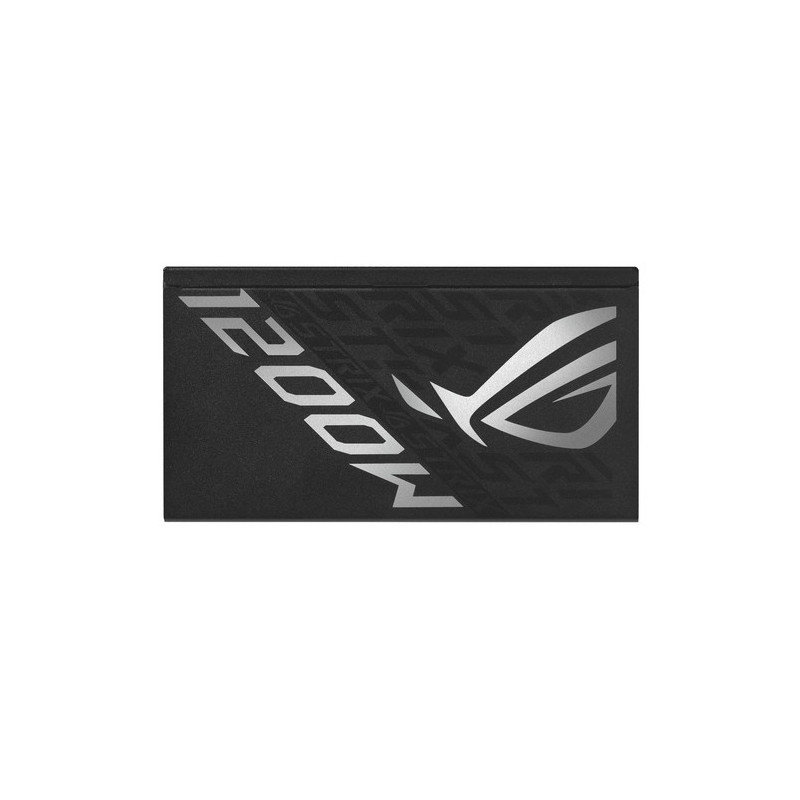

Power supply unit Asus ROG Strix Platinum 1200W (90YE00W0-B0NA00)
Power supply unit Asus ROG Strix Platinum 1200W (90YE00W0-B0NA00)





Power supply unit Asus ROG Strix Platinum 1200W (90YE00W0-B0NA00)
Guarantee
24 month
Delivery from Europe in
13 - 18
business days
ATX12V
ATX 3.1: yes
Dimensions: 160 x 150 x 86 mm
Efficiency: 80Plus Platinum
Protection: OPP/OVP/UVP/SCP/OCP/OTP
AC input voltage range: Full Range (100-240Vac)
DC output voltage: +3.3V +5V +12V -12V +5Vsb
Maximum load: 25A 25A 100A 0.3A 3A
Combined load: 130W 130W 1200W 3.6W 15W
Total power: 1200W
Connectors:
*MB 24/20-pin x 1
*CPU 4+4-pin x 2
*PCI-E 16-pin x 1
*PCI-E 6+2-pin x 4
*SATA x 6
*PERIPHERAL x 3
Package contents:
*Power Cord x 1
*Motherboard power cable x 1 (610mm)
*CPU cable x 2 (1000mm)
*PCI-E Gen 5 (16-pin-to-16-pin) cable x 1 (750mm)
*PCI-E (8-pin-to-6+2pin) cable x 4 (750mm)
*SATA 1-to-3 cable x 2 (400+120+120mm)
*Peripheral 1-to-3 cable x 1 (400+150+150mm)
*ROG Strix DIY sticker x 1
*User manual x 1
Weight: 2.94 kg
0dB Fan Button: yes
| Cooling | |
|---|---|
| Zero speed mode | Yes |
| Cabling, connectors | |
| Molex 4pin (pcs) | 3 |
| PCI-E 16pin 12V-2x6 (pcs) | 1 |
| PCI-E 8/6+2 (count) | 4 |
| Model and translation | |
| Model | ROG STRIX 1200W Platinum |
| Other | |
| White | Unimported |
| Warranty period | 10 years |
| Paint | Black |
| Source - cabling, connectors | |
| Modular cabling | Yes |
| Power connector of the processor (pin) | 2x 4+4pin |
| MB power supply (pin) | 20/24 |
| SATA 15-pin (number) | 6 |
| Source - power | |
| PFC filter source | Active PFC |
| Power of the power source (W) | 1200 |
| Source - other | |
| Source efficiency | 80PLUS Platinum |
| Source - dimensions | |
| Source format | ATX 3.1 |
