Power Supply - Akyga 420 W 20+4 Pin ATX Gray
Product reference:
14-5901720130310
The 420W power supply with 20+4-pin ATX connector and three SATA connectors ensures reliable power delivery. Efficiency reaches 70% and the operating temperature is from 5 to 50°C.
Power Supply - Akyga 420 W 20+4 Pin ATX Gray
Product reference:
14-5901720130310
The 420W power supply with 20+4-pin ATX connector and three SATA connectors ensures reliable power delivery. Efficiency reaches 70% and the operating temperature is from 5 to 50°C.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days

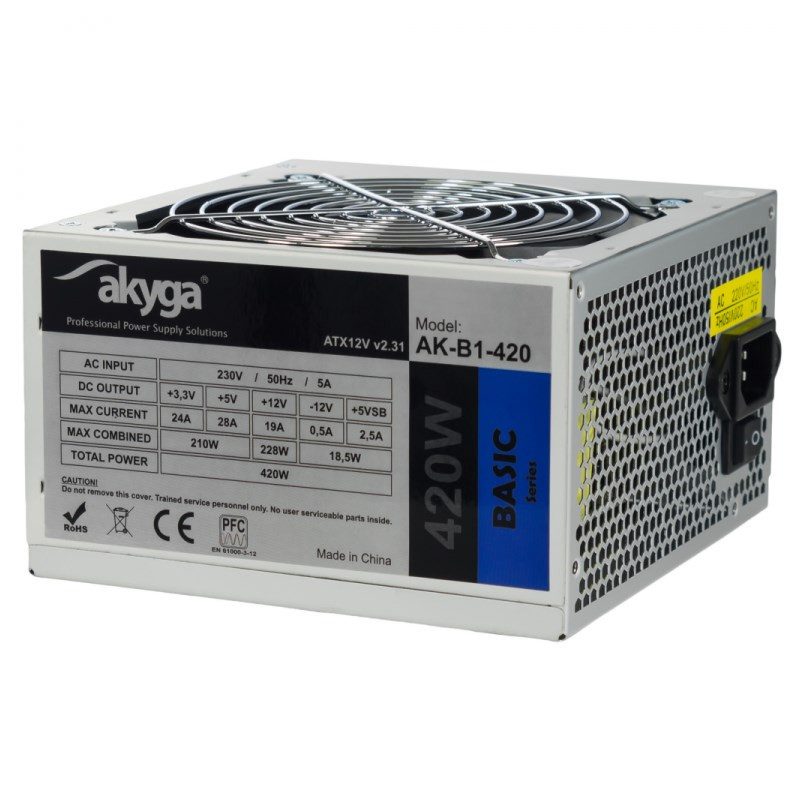

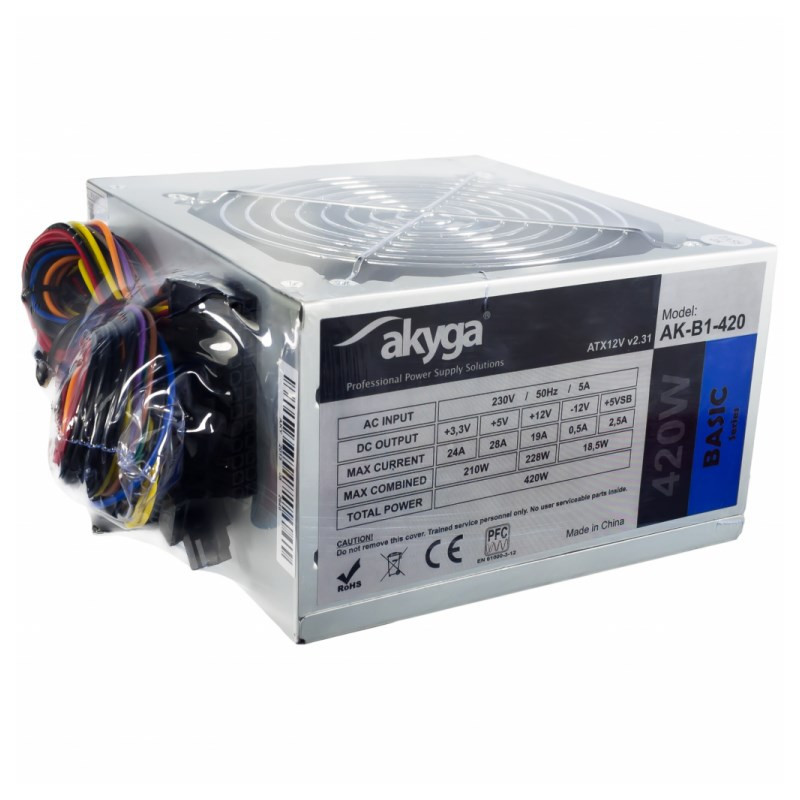

Akyga AK-B1-420 420W ATX Gray
Akyga AK-B1-420 is a high-quality 420 W power supply for computer systems. Its gray color and RoHS sustainability standard ensure reliability and environmental friendliness.

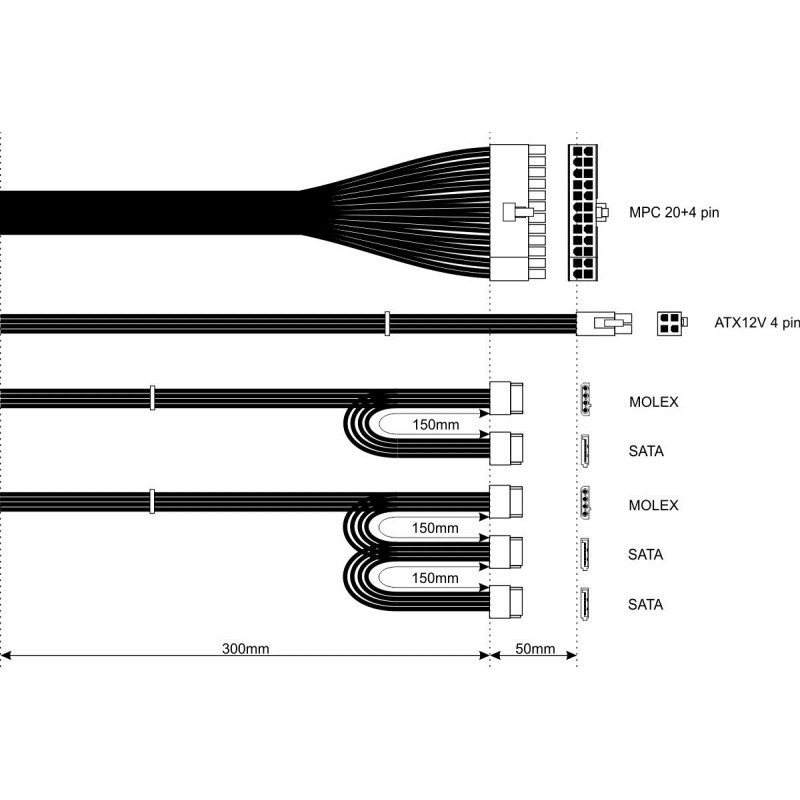

Main features
- 20+4 pin ATX motherboard connector
- 3 SATA power connectors
- 2 peripheral (Molex) power connectors (4-pin)
- Processor P4 connector (4-pin)

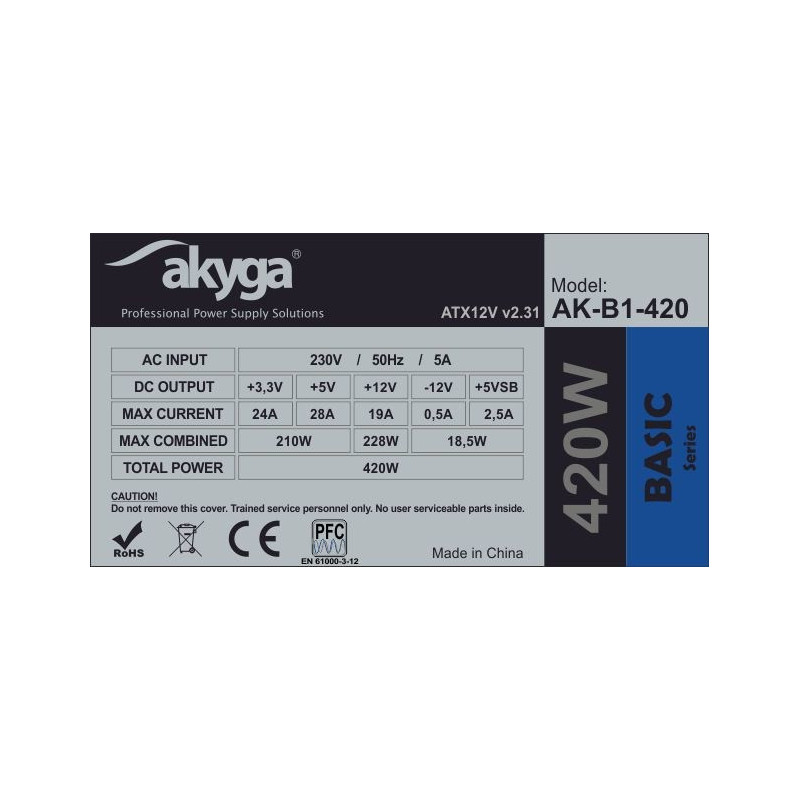

Technical data | |
|---|---|
| Sustainability certificates | RoHS |
Design | |
| Product color | Gray |
Power | |
| Total power (+3.3V) | 210W |
| Efficiency | 70% |
| AC input frequency | 50Hz |
| Maximum output current (+12V) | 19 A |
| Total power (-12V) | 18.5W |
| Total power (+12V) | 228W |
| Power protection functions | Overpower, undervoltage, overcurrent, short circuit, overvoltage |
| Maximum output current (-12V) | 0.5A |
| Total power | 420W |
| Maximum output current (+3.3V) | 24 A |
| AC input voltage | 230V |
| Input current | 5 A |
| Maximum output current (+5V) | 28 A |
| Total power (+5V) | 210W |
| Total power (+5Vsb) | 18.5W |
| Maximum output current (+5Vsb) | 2.5A |
Operating conditions | |
| Operating temperature (OT) | 5 - 50 °C |
Weight and dimensions | |
| Height | 85 mm |
| Depth | 140mm |
| Weight | 1.04 kg |
| Width | 150mm |
Operation | |
| Purpose | PC |
| Mean Time Between Failures (MTBF) | 100000 hours |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.31 |
Packaging details | |
| Package weight | 1.05 kg |
| Package width | 151mm |
| Package depth | 196 mm |
| Packaging type | Box |
| Package height | 86 mm |
Ports and interfaces | |
| Processor P4 connector (4-pin) | 1 |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 3 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| ATX power connector (20-pin) | Yes |
| Height | 86 mm |
| Length | 196 mm |
| Weight | 1050g |
| Width | 151mm |
