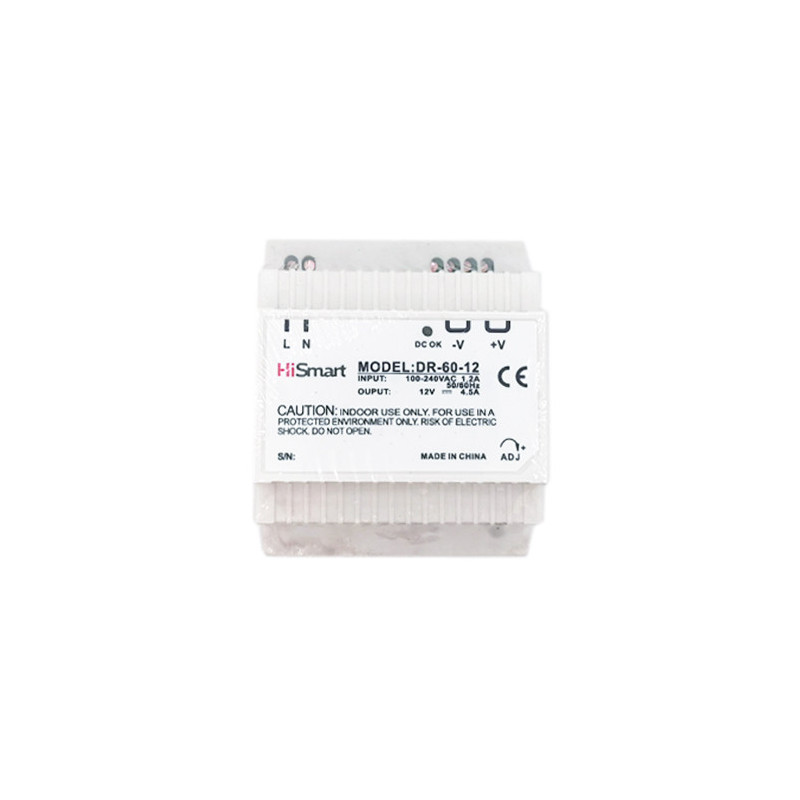

Power supply 12V, 4.5A, 60W, DIN
Product reference: 17-9990000700509
Power supply 12V, 4.5A, 60W, DIN

Power supply 12V, 4.5A, 60W, DIN

Product reference: 17-9990000700509
Power supply 12V, 4.5A, 60W, DIN
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
18,19
Product in warehouse

Guarantee
12 month

Delivery from Lithuania in
1 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
Not available

Switching power supply 12V, 4.5A, 60W, DIN.
Features:
The power supply, operating in switching mode, can be mounted on a 35mm DIN rail.
Protection: against overload, voltage surge, short circuit.
Cooling by free air convection.
Small volume, light weight, high efficiency.
Technical data:
Power supply type: switching.
Input voltage: AC 90-264V. Frequency: 47-63Hz.
Output voltage: DC 12V.
Ability to adjust the output voltage within -9% /+10%.
Maximum output current: 4.5A.
Maximum power: 54W.
Irregularities and noise: 100mV pp.
AC voltage: 1.2A/115V, 0.65A/230V.
Efficiency: 82%.
Leakage current in the input circuit at AC 240V: up to 1mA.
Operating temperature: from -20°C to +60°C.
Operating humidity: 20%-90%RH.
Dimensions: 65.5x125.2x100mm.
Weight: 0.8kg.
Warranty: 24 months
