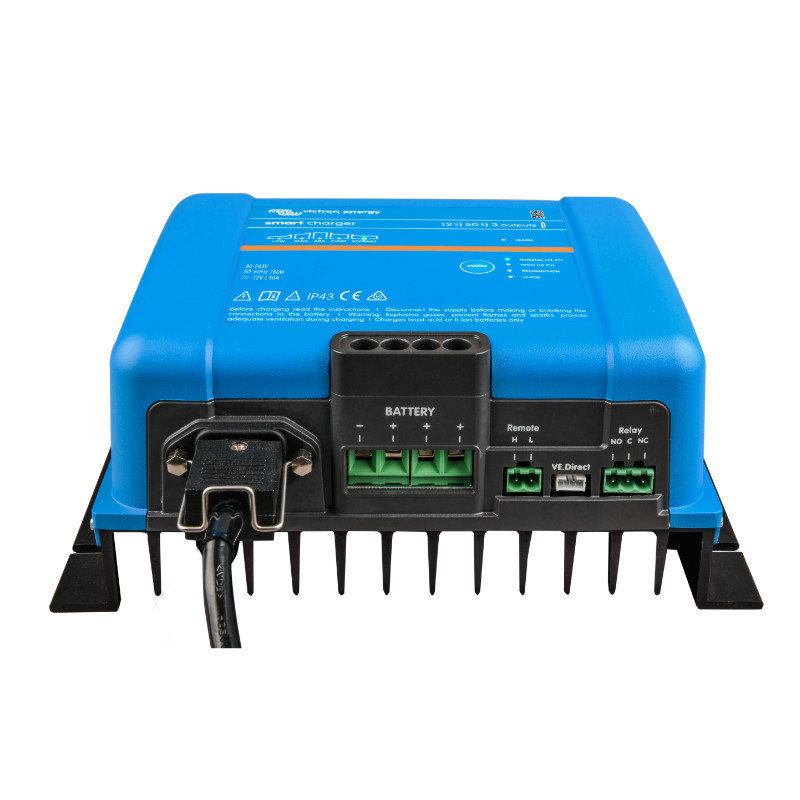

Phoenix Smart IP43 Charger 12 / 50 (3) 120 / 240V

From Victron Energy is an advanced charging device that combines the latest technologies with intelligent energy management. three independent charging outputs, it is possible to power up to three batteries simultaneously, making the charger ideal for on-board systems in boats, campers, and other multi-battery installations. Additionally, thanks to Bluetooth Smart function, you can remotely manage and monitor the charger's operation from your phone or tablet, which significantly increases the comfort of use. Bluetooth also allows programming of operating parameters such as loading algorithm which can be adjusted to the type and capacity of batteries.
The high efficiency of the charger is due to the use of technology automatic voltage equalization, which prevents voltage drops when the DC load increases. This ensures that the batteries are charged in an optimized manner, without the risk of damage caused by excessive gassing. BatterySafe mode protects batteries when charging at high current and voltage by automatically limiting the rate of voltage increase when a critical gassing level is reached. storage mode activates after 24 hours of battery inactivity, minimizing power consumption and extending electrode life.

Modern solutions tailored to each user

Charger Phoenix Smart IP43 12/50 (3) is characterized by adaptive, 6-step charging algorithm, which automatically adjusts the charging process to the battery's charge level. This allows the battery to be effectively regenerated even after deep discharge, and with only minor discharge, the absorption process is shortened, preventing overcharging. Additionally, you can change the charging parameters at any time thanks to Bluetooth and the interface VE.Direct, which allows for precise adjustment of the device's operation to the specific needs of the user. Color Control and the possibility of wired connection to a computer are other advantages that make Phoenix Smart a versatile and easy-to-use device.
High efficiency at the level 94% and low power consumption under no-load conditions (just 1 W) make the charger extremely energy-efficient. This solution is designed for users who value energy conservation and, at the same time, want full control over the charging process. Integrated low current mode allows you to limit the charging current to 25A, which is ideal for charging smaller batteries.

Technical specifications

• Model: Phoenix Smart IP43 12V 50A (3) 120/240V


• Input voltage: 230 VAC (range: 210 - 250 V)


• DC input voltage range: 90 - 375 VDC


• Frequency: 45 - 65 Hz


• Power factor: 1


• Backdrain: No AC power: < 0.1 mA


• Current consumption with AC power and remote control off: < 6 mA


• No-load power consumption: 1 In


• Efficiency: 94%


• Charging Voltage - Absorption / Preservation / Storage:



  • Normal: 14.4V / 13.8V / 13.2V


  • High: 14.7V / 13.8V / 13.2V


  • Lithium-ion: 14.2V / N/A / 13.5V






• Fully programmable: Yes, with Bluetooth and/or VE.Direct


• Number of battery connections: 3


• On-board battery charging current: 50 A


• Low current mode: 25 A


• Temperature Compensation - Default Values: -16 mV/°C


• Starter battery charging current: NO


• Charging algorithm: 6-stage adaptive (3-stage for lithium-ion batteries)


• Security: Battery reverse polarity (fuse, user inaccessible) / Output short circuit / Overheating


• Can be used as a power source: Yes, the output voltage can be set via Bluetooth and/or VE.Direct


• Operating temperature range: -20°C to 60°C (full output current up to 40°C, linear reduction to 20% at 60°C)


• Humidity (non-condensing): Max 95%


• Remote on/off: Yes (2-pole connector)


• Relay (programmable): DC Rating: 5A up to 28VDC


• Bluetooth: Power: -4 dBm | Frequency: 2402 - 2480 MHz


• Material and color: Aluminum (blue RAL 5012)


• Battery connection: Screw terminals 16 mm² (AWG6)


• AC connection: IEC 320 C14 inlet with retaining clip (power cable with appropriate plug must be ordered separately)


• Degree of protection: IP43 (electronic components), IP22 (connection area)


• Libra: 2.7 kg


• Dimensions: 180 x 249 x 116 mm

This intelligent device ensures safe and efficient charging of up to three batteries simultaneously. Remote control, high energy efficiency, and a programmable charging algorithm make it an ideal solution for users who value modernity and reliability. Its compact, robust design and advanced protective features make this charger an exceptional tool for special tasks.
