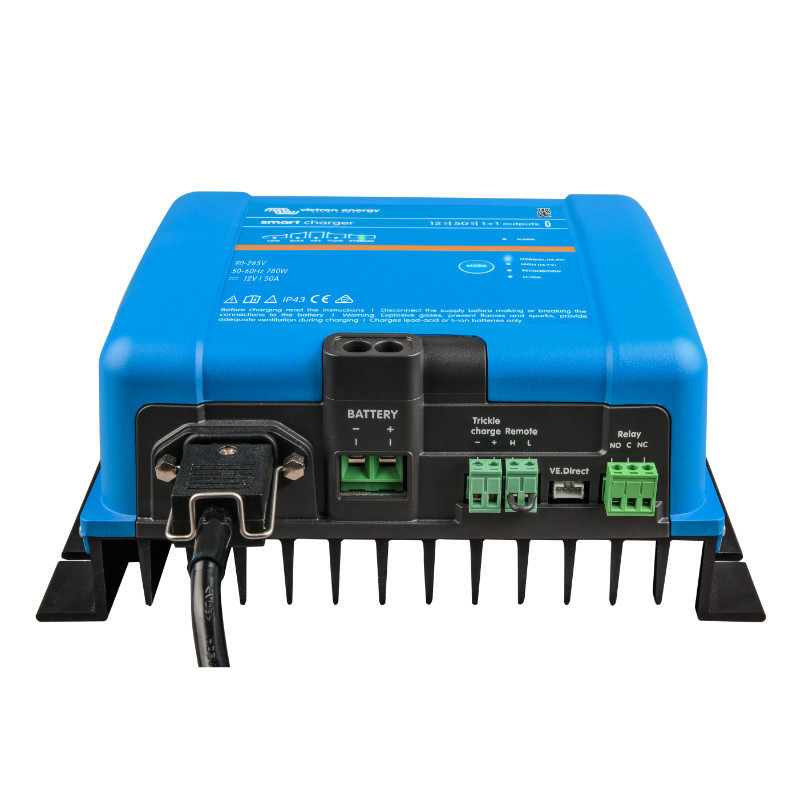

Phoenix Smart IP43 Charger 12 / 50 (1+1) 120 / 240V

Charger Phoenix Smart IP43 12V 50A (1+1) is an advanced battery charging management device designed for owners of boats, campers, and multi-battery systems. Thanks to the built-in microprocessor and an adaptive 5-step algorithm, the device automatically adjusts the charging process to the current needs of the batteries, which guarantees their extended life and optimal performance. Phoenix Smart offers two charging outputs (1+1), where the first output provides a full 50A for the main battery bank and the second, with a current of 4A, is intended for the starter battery.
The charger has an advanced function Bluetooth Smart, which enables remote management and monitoring via smartphone or tablet. This gives the user full control over charging parameters, which is especially convenient in locations with limited access to the device. Automatic voltage equalization function ensures consistent performance by compensating for any voltage drops caused by cable resistance. BatterySafe mode Effectively protects batteries against excessive gassing by limiting the rate of voltage increase once a critical level is reached. This solution is designed to fully protect batteries from damage resulting from improper charging.

Efficiency and full automation of work

is characterized by a high efficiency of 94%, which means that it minimizes energy loss during charging. The device supports 6-step adaptive charging algorithm, which allows for full customization of the charging process to a specific type of battery - including lithium-ion batteries. temperature compensation Additionally, it optimizes voltage based on environmental conditions, which prevents overheating and thermal damage to the batteries. When the battery is not used for 24 hours, it is activated storage mode, which lowers the float voltage, minimizing electrode wear and preventing gassing. The voltage is automatically raised weekly, preventing electrolyte stratification and battery sulphation.
Remote switching of the charger on and off is possible via a relay or optical port from the BMS lithium-ion output, and all charging parameters can be modified via VE.Direct or Bluetooth Additionally, thanks to the full programmability of the charging algorithm, users can adapt the device's operation to the individual needs of their batteries. Phoenix Smart IP43 It is therefore an excellent choice for anyone who needs an effective and safe power management solution in harsh environments.

Technical specifications

• Model: Phoenix Smart IP43 12/50 (1+1) Charger


• Input voltage: 85 - 250VAC


• DC input voltage range: 90 - 375 VDC


• Frequency: 45 - 65 Hz


• Power factor: 1


• Back current drain: < 1 mA


• No-load power consumption: 1 In


• Efficiency: 94%


• Charging Voltage - Absorption / Preservation / Storage:



  • Normal: 14.4V / 13.8V / 13.2V


  • High: 14.7V / 13.8V / 13.2V


  • Lithium-ion: 14.2V / N/A / 13.5V






• Fully programmable: Yes, with Bluetooth and/or VE.Direct


• Setting the maximum input current: 3 - 10A


• Number of battery connections: 1+1 (second output via 2-pole terminal, 4A max)


• Charging the current home battery: 50 A


• Temperature Compensation - Default Values: -16 mV/°C


• Starter battery charging current: 4 A Max


• Charging algorithm: 6-stage adaptive (3-stage for lithium-ion batteries)


• Security: Battery reverse polarity (fuse, user inaccessible) / Output short circuit / Overheating


• Can be used as a power source: Yes, the output voltage can be set via Bluetooth and/or VE.Direct


• Operating temperature range: -20 to 60°C


• Humidity (non-condensing): Max 95%


• Dimensions (WxHxD): 180 x 249 x 116 mm


• Libra: 2.7 kg


• DC connection: Screw terminals


• Protection class: Electronic components: IP43, Connection area: IP22


• Libra: 3.5 kg


• Dimensions (H x W x D): 180 x 249 x 100 mm

This charger is the perfect solution for those seeking advanced charging technology with full parameter control. Thanks to remote control, adaptive algorithms, and advanced protection features, this charger is suitable for both marine and land-based systems. Its durable design and efficiency ensure longevity and safe use in all conditions.
