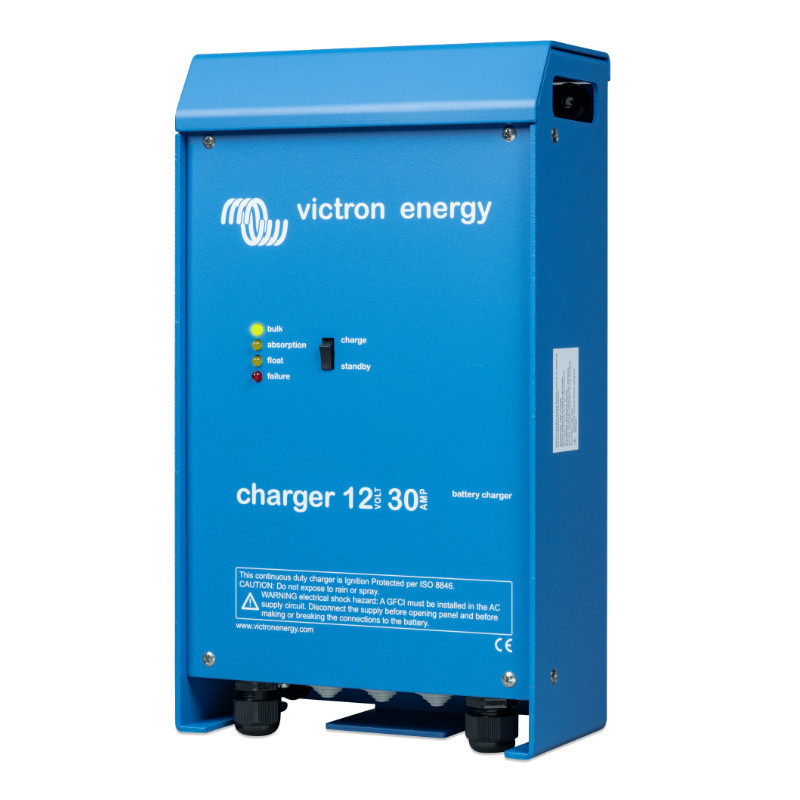

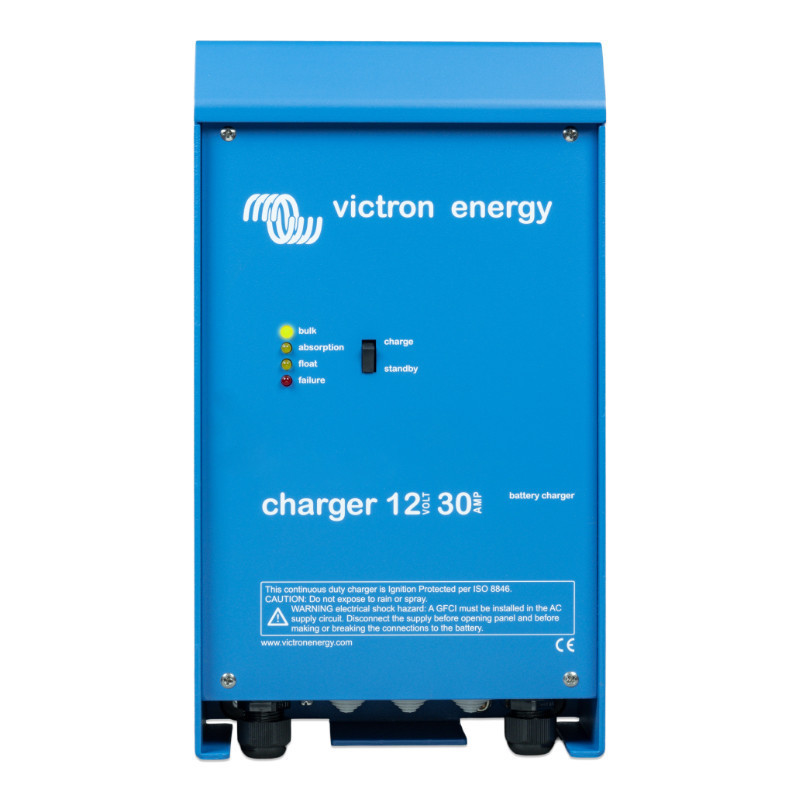

Phoenix Charger 12 / 30 (2+1) 120-240V

Charger Victron Energy Phoenix Charger 12V/30A is an advanced device that ensures optimal charging efficiency, adapting to different types of batteries. microprocessor adaptive system, the charger automatically recognizes how the battery is used, which translates into intelligent management of the charging process. Phoenix Charger is not only an efficient solution, but also a product that increases the battery life by appropriately adjusting the charging parameters.
It is worth noting that charger is equipped with adaptive mode, which allows the charging cycle to be automatically adjusted to the current needs of the battery. When the battery requires a quick top-up, the device uses absorption mode and then switches to maintenance mode, which keeps the battery at an optimal charge level without the risk of damage. four-stage charging process, the charger provides full control over every stage of this process, offering maximum current charging, absorption charging, maintenance charging and a storage mode that minimizes the risk of sulphation.

Integrated Features and Performance of the Phoenix Charger

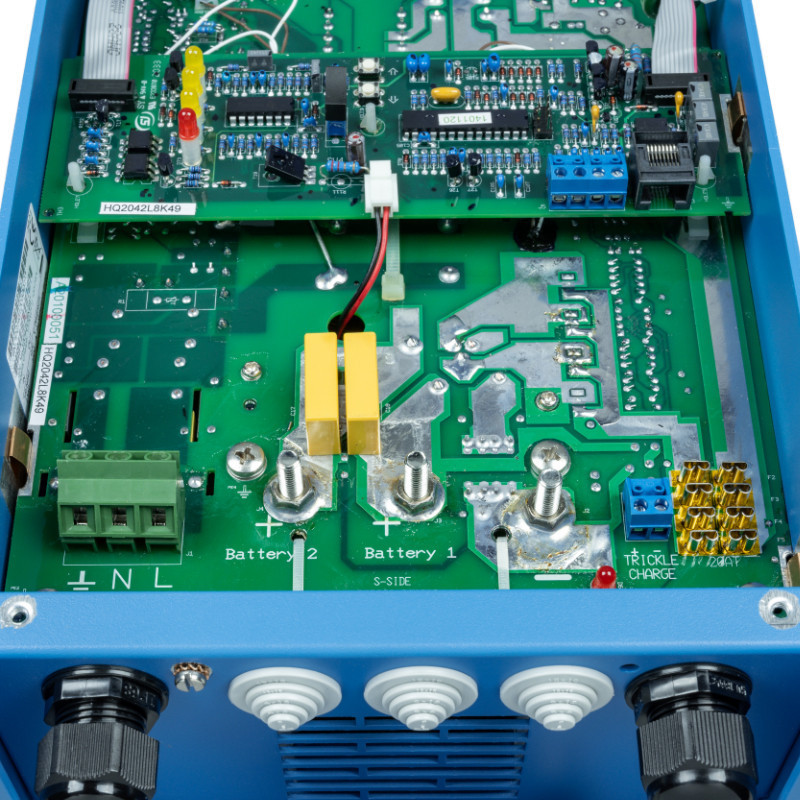

One of the key elements Phoenix chargers Is computer interface enabling communication with the device via the RS-485 port. Thanks to the software VEConfigure and communications MK2-USB, the user has full control over the charger settings, allowing it to be tailored to individual needs. Additionally, the device has two full-rated outputs and one 4A output, allowing charging two main batteries and the starter battery. The charger automatically compensates for voltage drops in the DC system, ensuring stable operation of DC-powered devices.
Furthermore, BatterySafe mode provides protection against damage resulting from overcharging. When the battery reaches gassing voltage, the device automatically limits the voltage increase, protecting it from excessive gassing, thus extending battery life. Storage mode, which switches on after 24 hours without discharging, lowers the float voltage, minimizing the risk of corrosion and gassing, and once a week raises it back to the absorption level, which prevents electrolyte stratification.

Technical Specifications

• Input voltage range (V AC): 90 - 265


• Input voltage (V DC): 90 - 400


• Frequency (Hz): 45 - 65 Hz


• Power factor: 1


• Backdrain:



  • No AC power: < 0.1 mA


  • AC power connected and remote charger control disabled: < 6 mA






• No-load power consumption: 1 In


• Charging voltage - absorption (V DC): 14.4


• Charging voltage - float (V DC): 13.8


• Storage mode (V DC): 13.2


• Main battery charging current (A): 30


• Starting battery charging current (A): 4


• Charging characteristics: Adaptive 4-stage


• Battery capacity (Ah): 100-400


• Temperature sensor: Yes


• Use as a power source: Yes


• Forced cooling: Yes


• Security: a, b, c, d


• Working temperature range: -20°C to 60°C


• Humidity (non-condensing): Max 95%


• Material and color: Aluminum (blue RAL 5012)

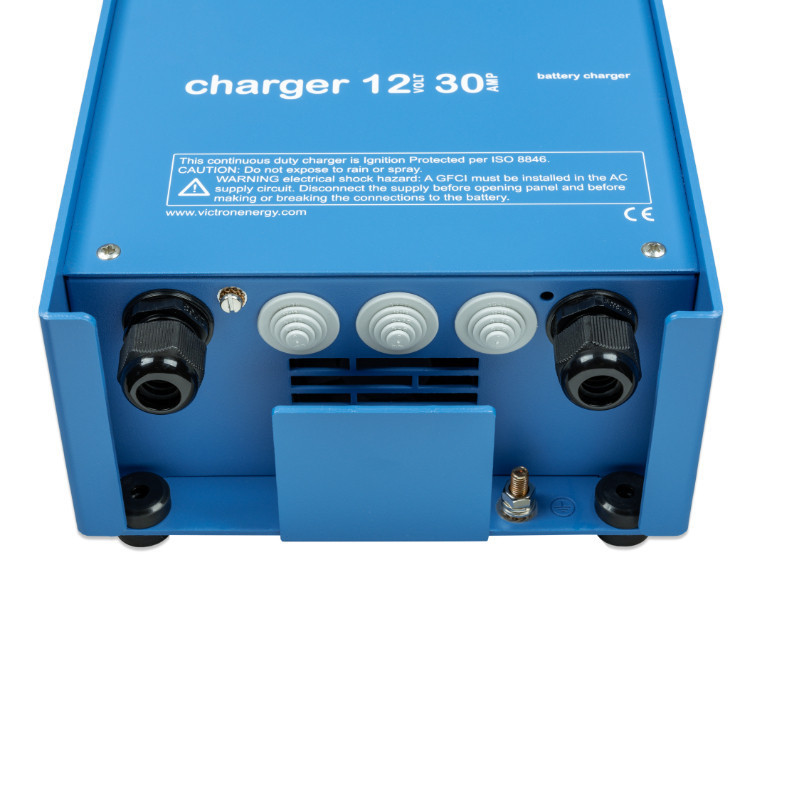

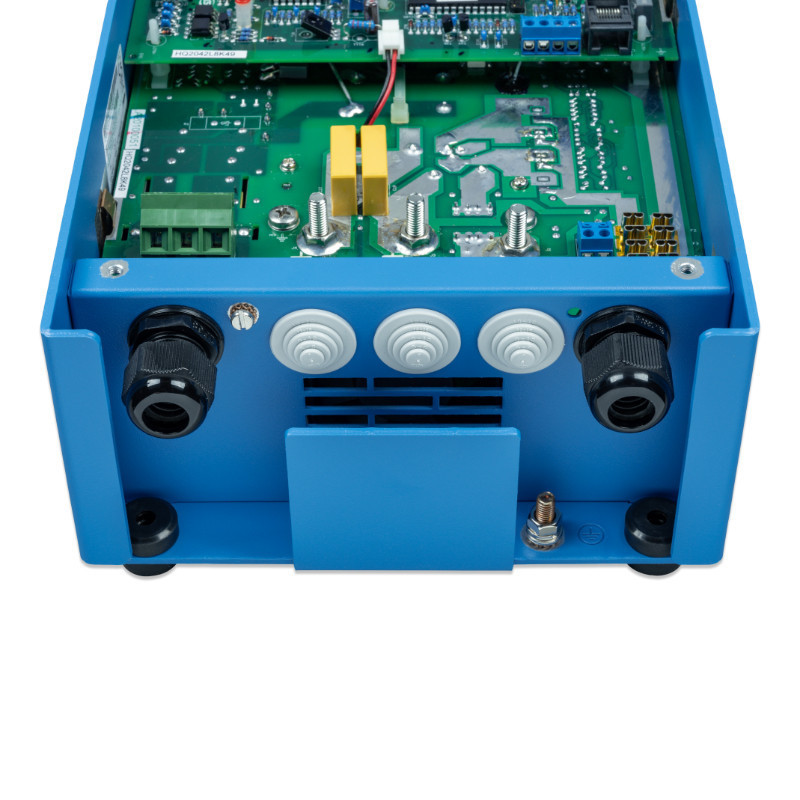

• Battery connections: M6


• AC connections: Screw terminal 4 mm² (AWG 6)


• Protection category: IP 21


• Weight (kg): 3.8


• Dimensions (H x W x D) (mm): 350 x 200 x 108

From Victron Energy This device combines advanced technology with reliability, offering precise and safe battery charging in every situation. Thanks to the adaptive management system, temperature sensors, and BatterySafe mode, users can be sure their batteries are always in peak condition. Additional features, such as a computer interface and configurable settings, make it the ideal solution for those who require maximum control over the charging process.
