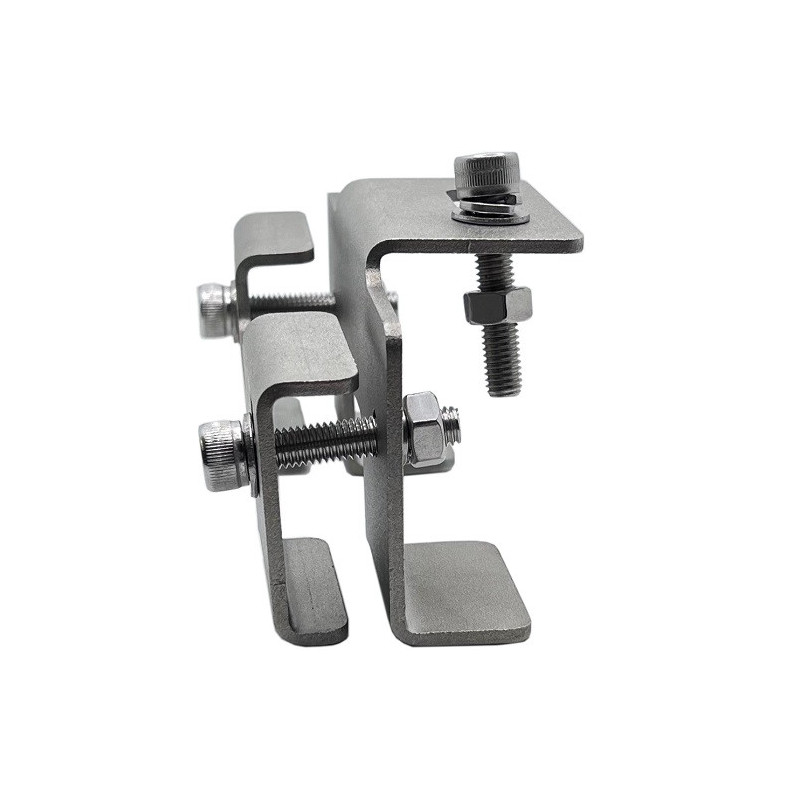

Panel holder Classic (Click) for roofing

Solar panel holder Classic (with Click system) for roof covering, stainless steel, with screws and washers
Features:
The solar panel holder is designed for classic ("lock-fastening", Click-lock type) tin roofing. It is adapted for direct installation of PV rails on Classic tin roofing.
Made of stainless steel, it has high resistance to corrosion and mechanical stress.
Simple mounting: the bracket hugs the edge of the metal roofing and is pressed in with screws - no holes in the roofing are required. The bracket does not crush or bend the metal roofing edge.
Application: The bracket can be used as an adapter for rails to which solar power structures are attached.
The kit is complemented by fastening elements made of austenitic stainless steel: M8x50 bolts, nuts, flat and spring washers. They perform the functions of connection, support and fixation and ensure that the solar modules are firmly attached to the bracket and can be adjusted as needed.
Simple, fast and economical installation. The bracket design gives the installer flexibility.
This is a universal bracket, suitable for classic tin roofing and compatible with most solar power construction products.
Technical data:
Material: stainless steel A2-70, grade 304.
Scope of application: Classic (Click type) sheet metal roofing.
Holder dimensions: 140x67x73mm.
Screw dimensions: Ø7.5mmx49mm.
Holder weight: 333g.
Total weight: 489g (with screws).
Scope of delivery: 2 bracket parts, 3x screws, 3x nuts, 3x flat washers, 3x spring washers.
