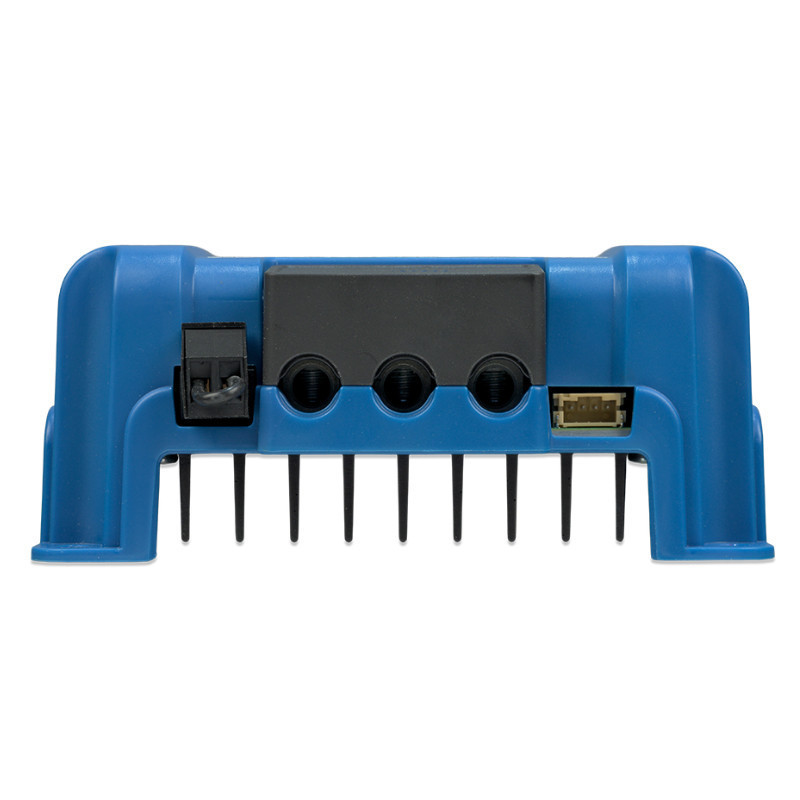

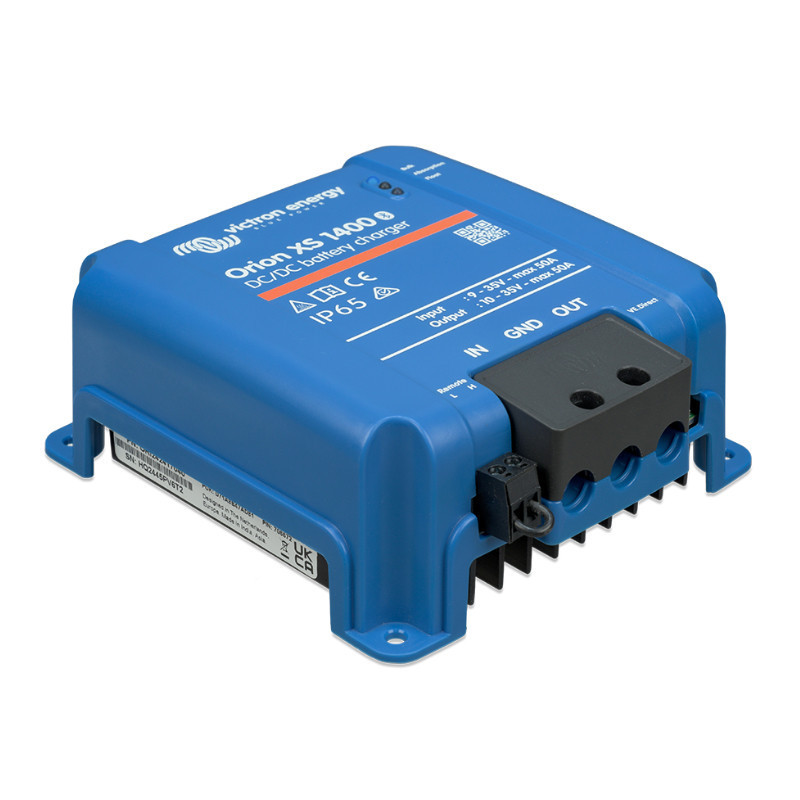

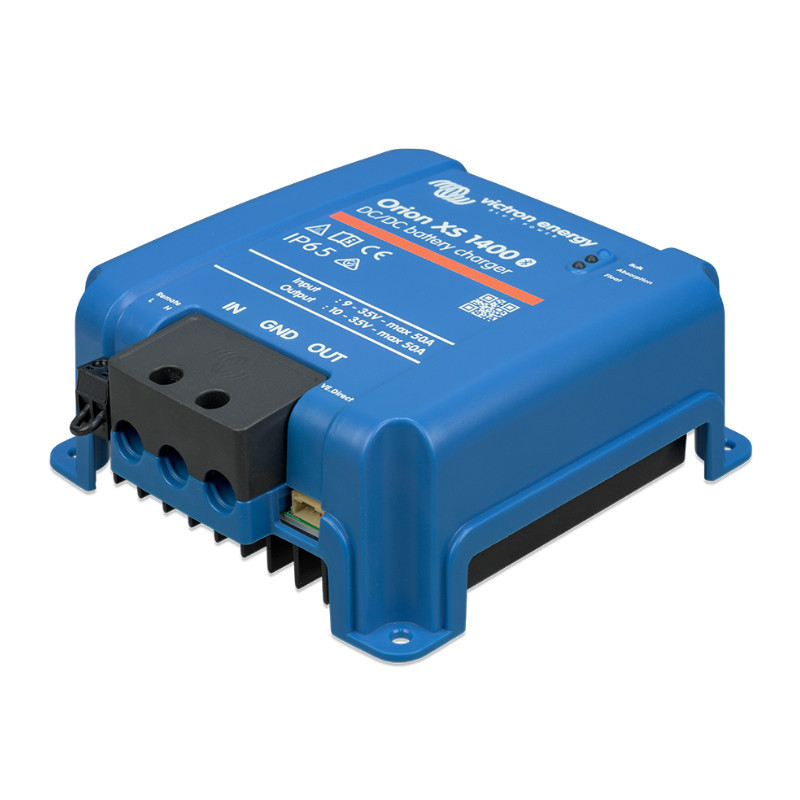

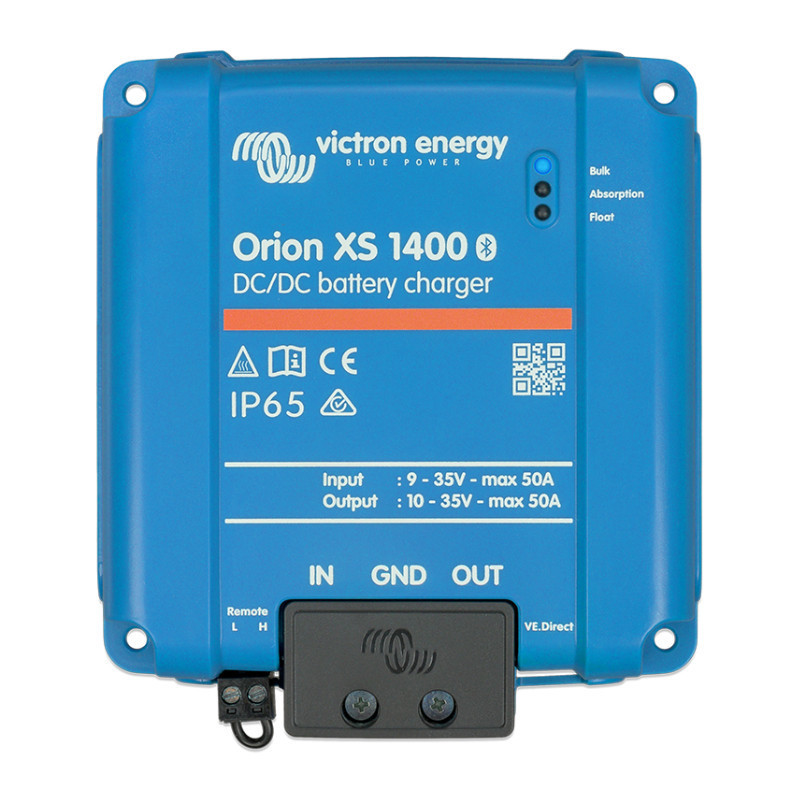

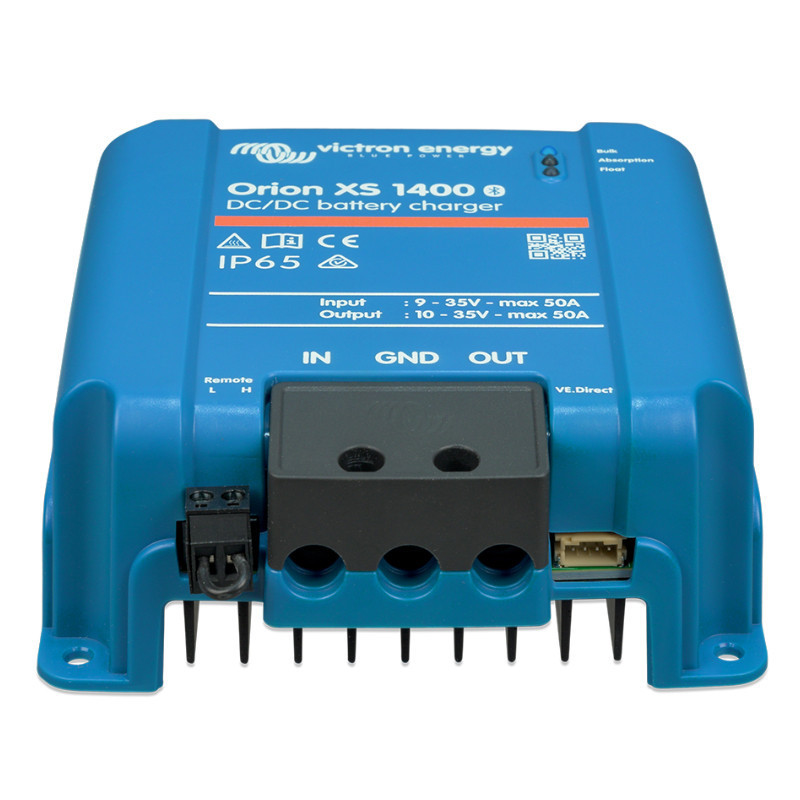

Orion XS 1400 DC-DC battery charger
Product reference: 39-8719076064848

The Orion XS 1400 is an advanced adaptive DC-DC charger from Victron Energy, designed to quickly and safely charge auxiliary batteries in vehicles and campers. It operates on an input voltage of 9-35V and an output voltage of 10-35V, providing a maximum of 50A of charging current. In a 24V system, it reaches a full 1400W of power; at 12V, it reaches approximately 700W.

Orion XS 1400 DC-DC battery charger
Orion XS 1400 DC-DC battery charger
Orion XS 1400 DC-DC battery charger
Orion XS 1400 DC-DC battery charger
Orion XS 1400 DC-DC battery charger
Orion XS 1400 DC-DC battery charger

Orion XS 1400 DC-DC battery charger

Product reference: 39-8719076064848

The Orion XS 1400 is an advanced adaptive DC-DC charger from Victron Energy, designed to quickly and safely charge auxiliary batteries in vehicles and campers. It operates on an input voltage of 9-35V and an output voltage of 10-35V, providing a maximum of 50A of charging current. In a 24V system, it reaches a full 1400W of power; at 12V, it reaches approximately 700W.

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
358,22 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
5 - 8
business days

Your message has been successfully sent!
Fill in the required fields*

Orion-XS 1400 DC-DC 50A Charger


The Orion XS is a next-generation DC-DC charger, optimized for use in dual-battery systems—especially in vehicles and boats. It provides precise charging under varying voltage and temperature conditions. With input voltage lockout and temperature protection, the starter battery is always protected from over-discharge.
Additionally, the Orion XS can function as both a power supply and a charger. Thanks to passive cooling and full electronic protection, it is exceptionally durable and quiet. Remote control options—both wired and via Bluetooth—increase application flexibility.
The Orion XS can be connected to Victron GX systems via the VE.Direct port, allowing for remote monitoring, configuration, and diagnostics. When used with the VRM portal, it provides access to data from anywhere in the world.


Main features:



  • Works in 12V and 24V systems

  • IP65 protection class - ideal for harsh conditions

  • 8 predefined battery charging modes

  • Full protection against overload, overheating, short circuit and low voltage

  • Compatible with Euro 5/6 smart alternators

  • Passive cooling - quiet and reliable operation

  • Safe charging only with active alternator

  • Engine Detection Mechanism - Integrated system detects engine operation and activates the charger only when the alternator is supplying power. This protects the starter battery from discharging.

  • Bluetooth Smart - Thanks to the built-in Bluetooth module, you can configure, monitor and update the charger from your smartphone or tablet using the VictronConnect app.

  • Advanced Charging Algorithms - Supports 12V and 24V systems in any combination (12→12, 12→24, 24→12, 24→24). Ideal for RVs, boats, and off-grid systems.


Additional features:



  • Automatic shutdown at low voltage or temperature

  • Cooperation with battery management systems (BMS)

  • VE.Direct and DVCC connector - integration with Cerbo GX, Ekrano GX, computer or VRM portal

  • Software updates via Bluetooth

  • LED status and error indicators



Specification:


Parameters / Model: Orion XS 1400 50A DC-DC
Battery Charger

  • Input voltage range: 9 - 35 V

  • Output voltage adjustment range: 10 - 35 V

  • Output voltage tolerance: +/- 0.25% (max)

  • Output voltage interference: 10 mV rms

  • Input and output current setting range: 1 - 50 A

  • Max. continuous short circuit current C: 50 A

  • Continuous output power up to 40 °C: 1400 W

  • Maximum efficiency: 98.5%

  • No-load current consumption: less than 100 mA

  • Power consumption in standby mode: less than 1.5 mA


Communication sockets:



  • VictronConnect / Bluetooth Smart App: Yes

  • VE.Smart Networking: Yes

  • VE.Direct: Yes (including DVCC)


Other parameters:



  • Operating temperature range: -20 to +60 °C (1.5% drop per °C above 40 °C)

  • Humidity: Max. 95% non-condensing

  • Direct Current (DC) Connector: Screw terminals

  • Maximum wire cross-section: 4 AWG (21.2 mm²)

  • Mass: 0.520 kg

  • Dimensions (H x W x D): 138.1 x 124.4 x 53 mm

  • Degree of protection: IP65


Standards:



  • Security: IEC 62477-1

  • Electromagnetic compatibility: FCC 15B, ICES-003, EN 300 328 (pending), EN 301 489-1 (pending), EN 301 489-17 (pending)

  • Automotive Directive: ECE R10-6 (pending)


The Orion XS is a modern, safe, and reliable DC-DC charger that delivers maximum charging efficiency in any vehicle or off-grid power system. It's the perfect choice for systems using lead-acid or lithium batteries.
