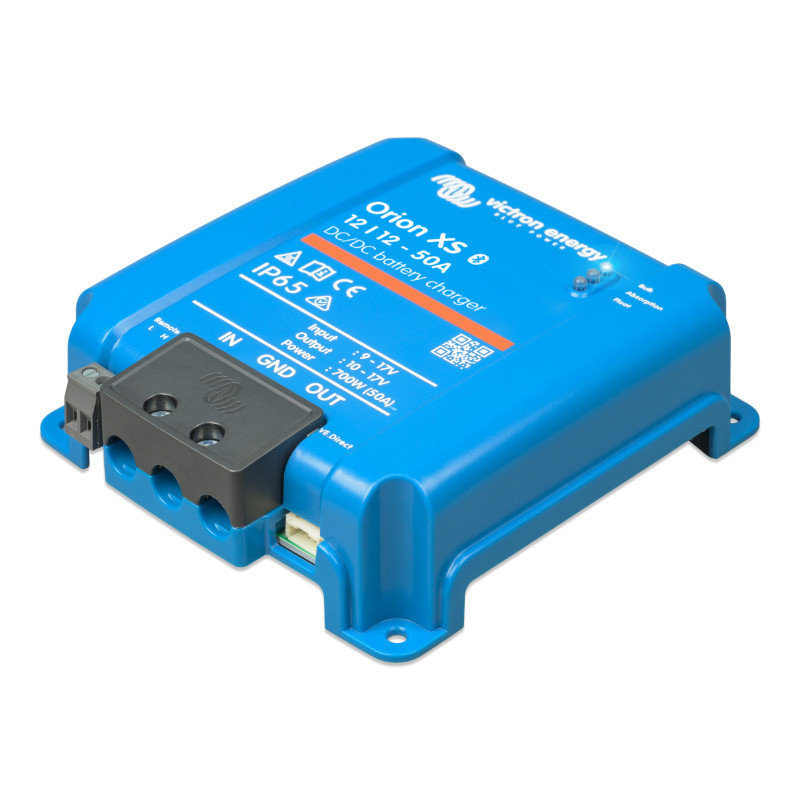

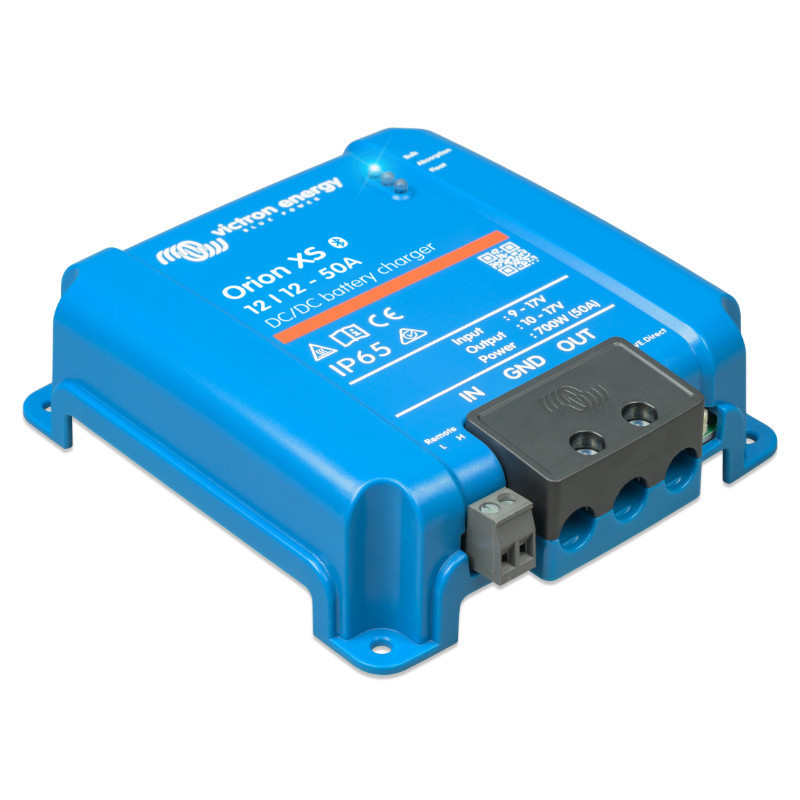

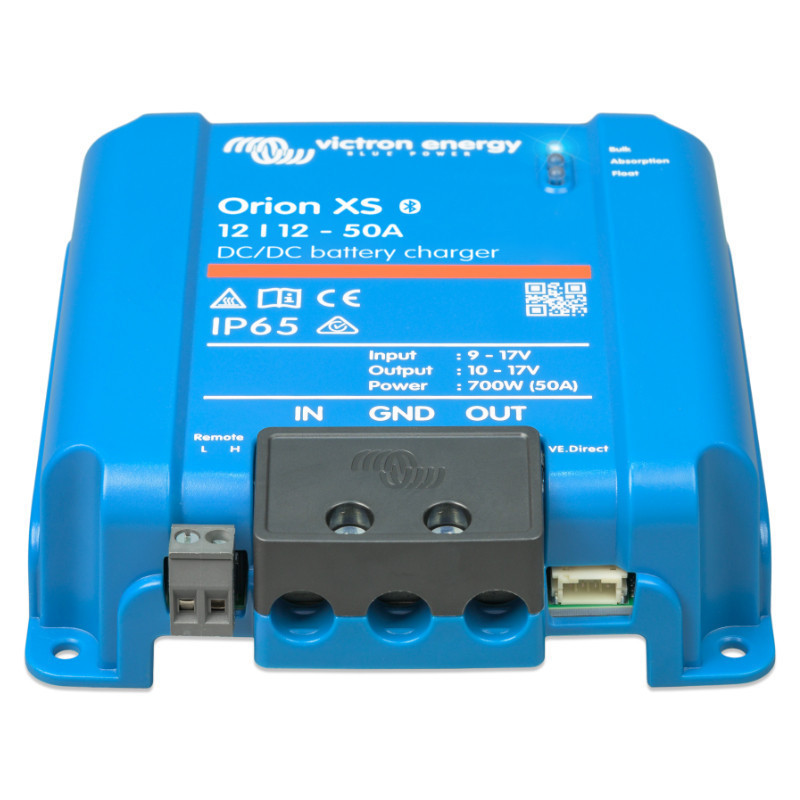

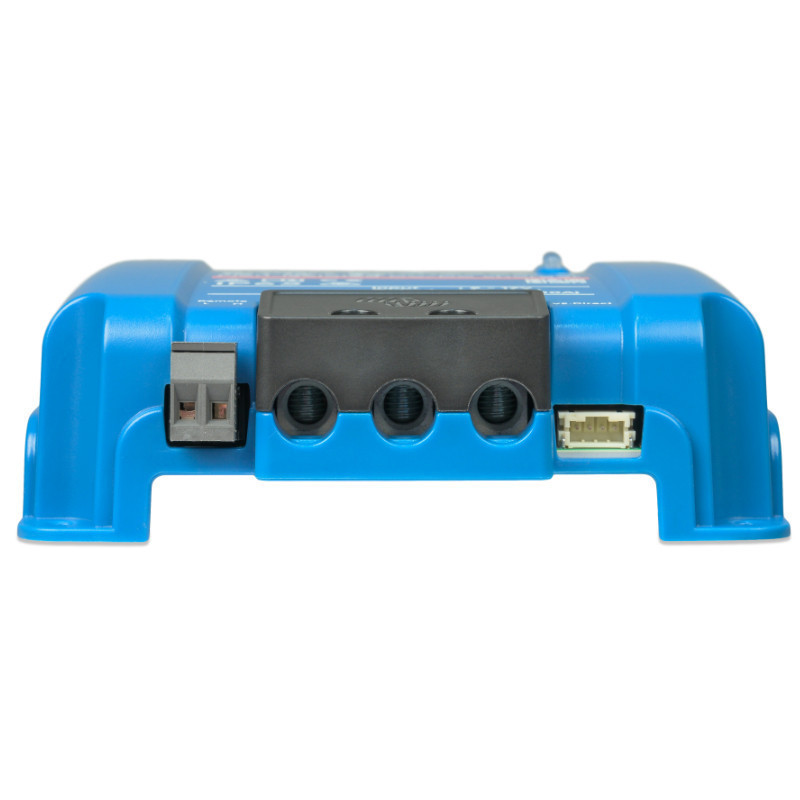

Orion XS 12/12-50A DC-DC battery charger

Orion-XS 12/12-50A DC-DC Charger

The Orion XS is a modern DC-DC charger designed for systems with a smart alternator and two batteries. It enables efficient and safe charging in vehicles, boats, and campers, even with voltage drops on long cables.
Protects the starter battery from discharging - it automatically shuts off at low input voltage and low temperature (important for lithium batteries). It turns back on when the input voltage returns to a safe level.
Can be remotely turned on and off via the connector or the VictronConnect app. Compatible with battery management systems (BMS).
Equipped with overload, short circuit, and overheating protection. Automatically limits output power when maximum temperature is reached. IP65-compliant housing - dustproof and resistant to heavy rainfall.

Key features:

• Engine Detection Mechanism

An integrated mechanism detects whether the engine is running and activates the charger only when the alternator is supplying power.

• Bluetooth Smart

Wireless configuration, monitoring and updating via the VictronConnect app on smartphones and tablets.

• Advanced charging algorithms

Fully programmable charging profiles and eight presets for various battery types, including lithium.

Technical specifications:

Orion XS 12/12-50 A DC-DC
Battery Charger

• Input voltage range: 9-17 May


• Output voltage adjustment range: 10-17 V


• Output voltage tolerance: +/- 0.25% (max)


• Output voltage interference: 10 mV rms


• Input and output current setting range: 1-50A


• Max. continuous short circuit current C: 50 A


• Continuous output power (up to 40 °C): 700 W


• Maximum efficiency: 98.5%


• No-load current consumption: less than 100 mA


• Power consumption in standby mode: less than 1.5 mA

Communication sockets

• VictronConnect / Bluetooth Smart App: Yes


• VE.Smart Networking: Yes


• VE.Direct (including DVCC): Yes

Other

• Operating temperature range: -20 to +60 °C (1.5%/°C drop above 40 °C)


• Humidity: Max. 95% non-condensing


• Direct Current (DC) Connector: Screw terminals


• Maximum wire cross-section: 4 AWG (21.2 mm²)


• Mass: 0.330 kg (0.73 lb)


• Dimensions (H x W x D): 137.3 x 123.1 x 40 mm


• Degree of protection: IP65

Standards

• Security: IEC 62477-1


• Issue: IEC 61000-6-3, EN 55014-2


• Resistance: IEC 61000-6-2, IEC 61000-6-1, EN 55014-2


• Automotive Directive: ECE R10-5 (under development)


• Instant data reading: The VictronConnect app shows warnings and status without having to connect to a device.


• VE.Direct and DVCC: Enables wired connection to Cerbo GX, Ekrano GX, PC or VRM portal - for advanced monitoring and control locally or remotely.
