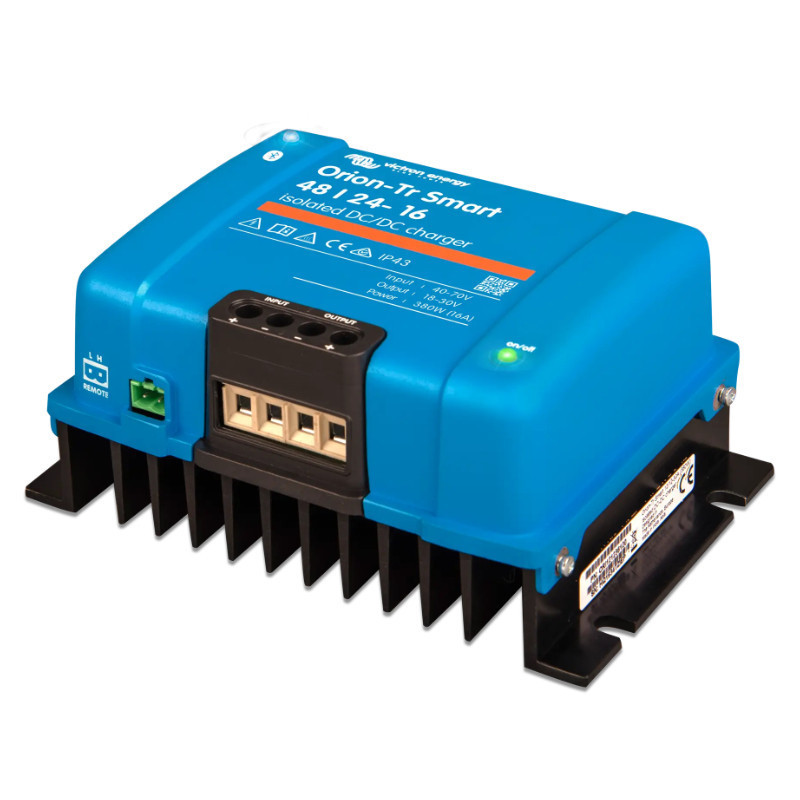

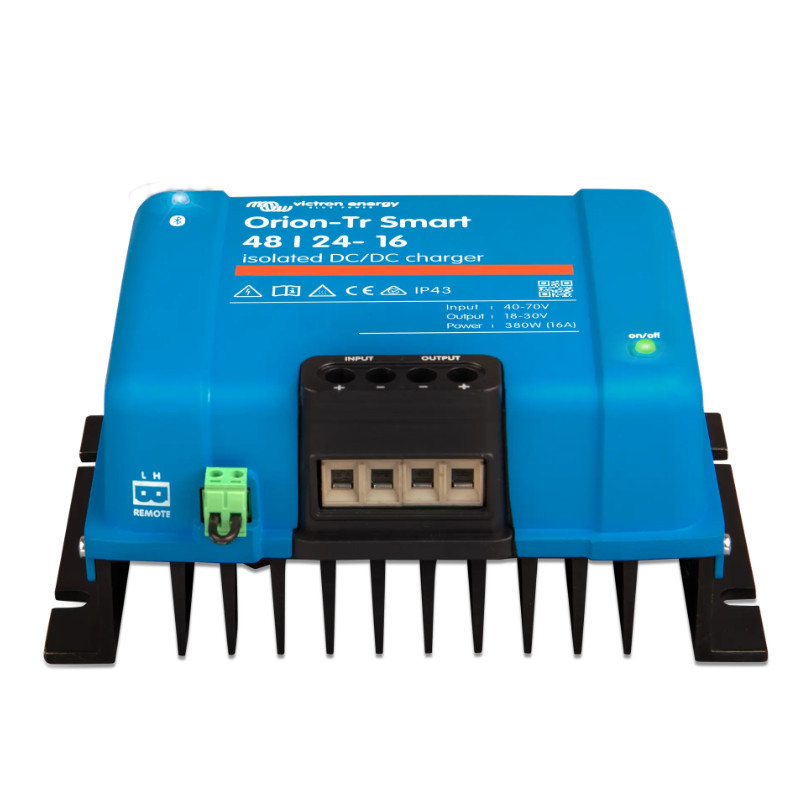

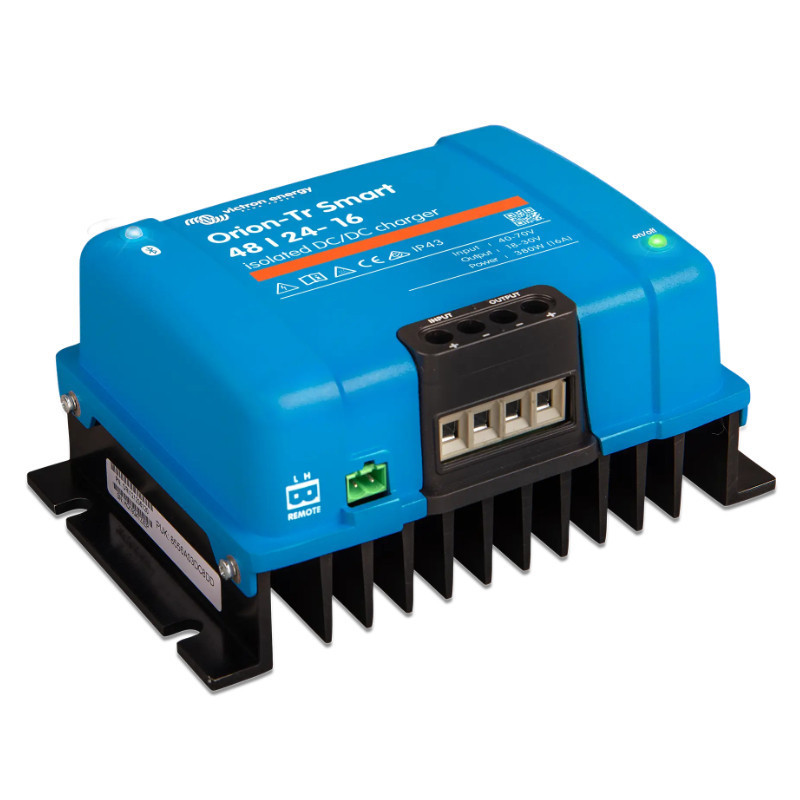

Orion-Tr Smart 48/24-16A Isolated DC-DC charger
Product reference: 39-8719076065593

The Victron Orion-Tr Smart 48/24-16A charger is an isolated DC-DC converter that enables stable and efficient charging of 24V batteries from a 48V system. It features Bluetooth remote control, a high 89% efficiency, and a compact and robust IP43 housing. Ideal for off-grid systems, photovoltaics, campers, boats, and specialty vehicles.

Orion-Tr Smart 48/24-16A Isolated DC-DC charger
Orion-Tr Smart 48/24-16A Isolated DC-DC charger
Orion-Tr Smart 48/24-16A Isolated DC-DC charger
Orion-Tr Smart 48/24-16A Isolated DC-DC charger

Orion-Tr Smart 48/24-16A Isolated DC-DC charger

Product reference: 39-8719076065593

The Victron Orion-Tr Smart 48/24-16A charger is an isolated DC-DC converter that enables stable and efficient charging of 24V batteries from a 48V system. It features Bluetooth remote control, a high 89% efficiency, and a compact and robust IP43 housing. Ideal for off-grid systems, photovoltaics, campers, boats, and specialty vehicles.

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
262,03 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
5 - 8
business days

Your message has been successfully sent!
Fill in the required fields*

Orion-Tr DC-DC Smart Charger 48/24-16A


The Orion-Tr Smart DC-DC Hotel Battery Charger is a professional, adaptive, 3-stage DC-DC charger with built-in Bluetooth. It allows direct charging of a hotel battery from the alternator, limiting the current and protecting the battery from overcharging. It is designed for dual-battery systems in vehicles or boats where the main battery is charged by the alternator and starter battery. The device can be monitored and programmed via the VictronConnect app, remotely controlled, and features engine run detection. A built-in sensor supports Euro 5 and Euro 6 alternators, and the engine shutdown detection feature prevents the starter battery from discharging after the vessel is turned off.
Head main features:



  • High performance


Advanced DC→DC charger with 3-stage charging mode (Bulk, Absorption, Float) for dual-battery systems.


  • Bluetooth module


Built-in Bluetooth enables configuration, monitoring and remote control via VictronConnect, as well as engine operation detection.


  • Battery protection


Protects the battery against too fast charging and overheating by controlling the charging current.


  • Protection against high temperatures


In case of overheating, the charging current is automatically reduced to increase safety.


Technical specifications:






Electrical parameters



  • Input voltage range 32-70V

  • Undervoltage shutdown 28 V

  • Restart on undervoltage 30V

  • Nominal output voltage 24.2V

  • Output voltage adjustment range 20-30V

  • Output voltage tolerance ±0.2V

  • Output noise 2 mV rms

  • Continuous output current (40 °C) 16 A

  • Maximum output current 15 A

  • Short circuit output current 40 A

  • Output power at 25 °C 430 W

  • Output power at 40 °C 380 W

  • Efficiency 89%

  • No-load input current < 80 mA

  • Power consumption in standby mode < 1 mA

  • Can be used as a power source Yes

  • Galvanic isolation 200V between input and output




Working conditions



  • Operating temperature range -20 to +55°C (reduction of 3%/°C above 40°C)

  • Humidity Max 95% non-condensing




Connectors and mechanics



  • Direct Current (DC) Connector screw terminals, max. 16 mm²

  • Libra 1.6 kg

  • Dimensions (H x W x D) 130 × 186 × 70 mm

  • Protection class IP43 (electronic part), IP22 (connectors part)




Standards and norms



  • Security EN 60950

  • Emission / Resistance EN 61000-6-3, EN 55014-1 / EN 61000-6-2, EN 61000-6-1, EN 55014-2

  • Automotive Directive ECE R10-5
