- High performance
Advanced three-stage DC→DC charger (Bulk, Absorption, Float) - ideal for dual-battery systems
in vehicles and boats.

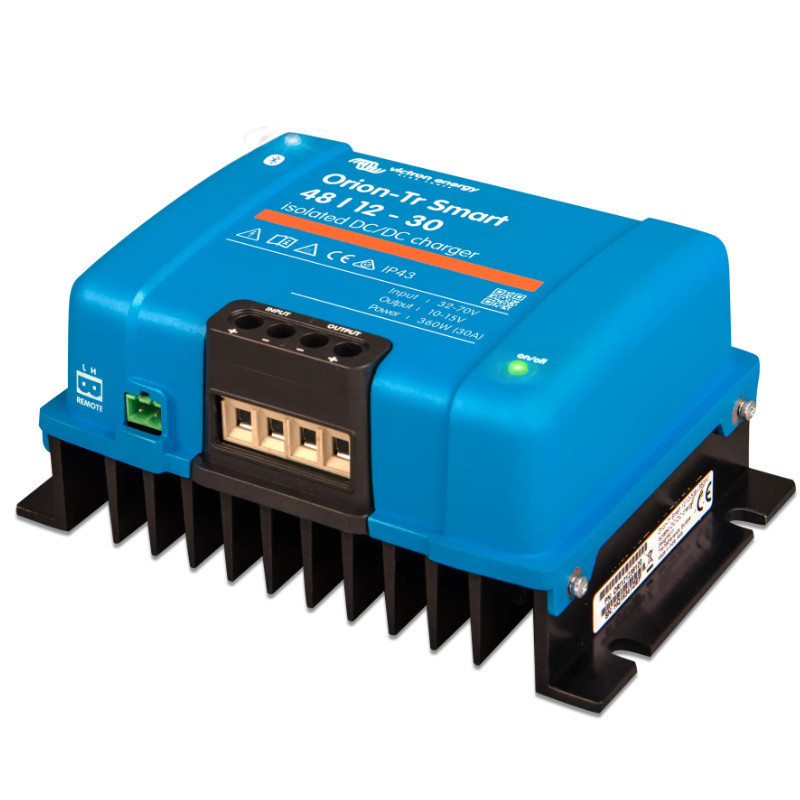

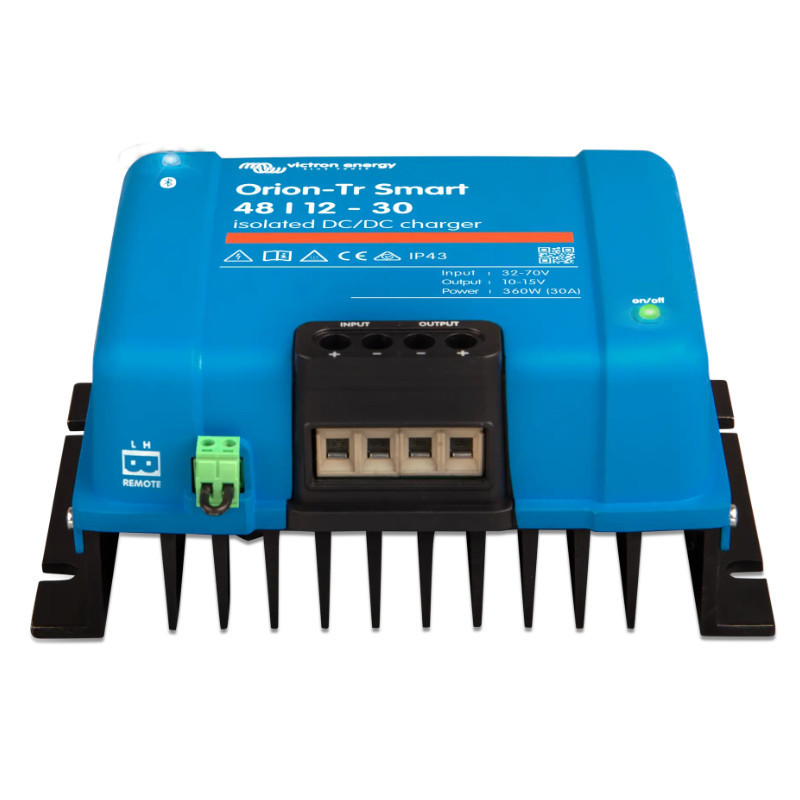

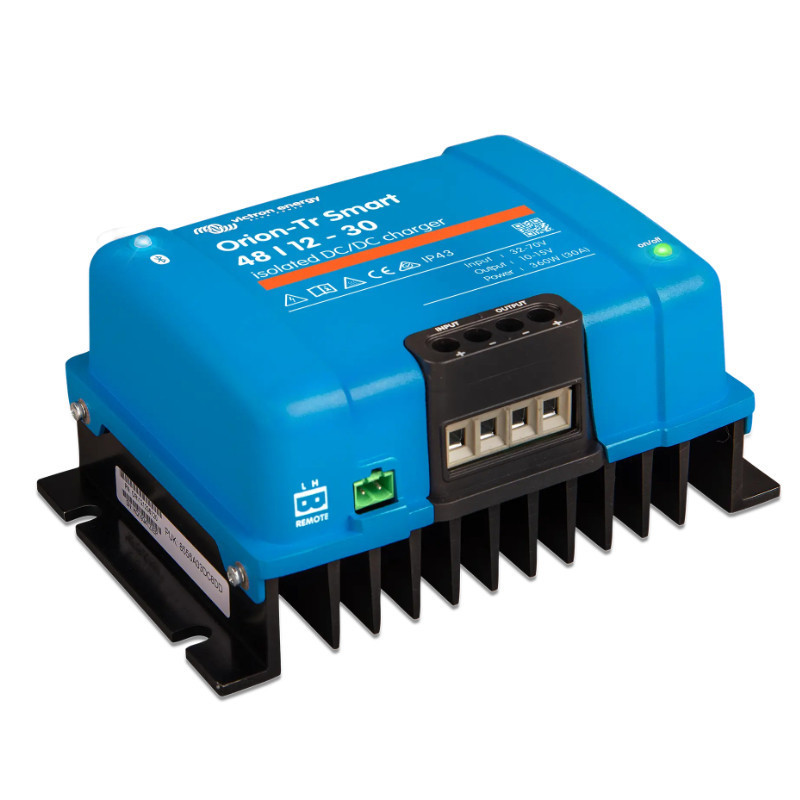

Orion-Tr Smart 48/12-30A Isolated DC-DC charger
Product reference:
39-8719076065586
The Victron Orion-Tr Smart 48/12-30A charger is an isolated DC-DC converter that allows for safe and efficient charging of 12V batteries from a 48V system. Equipped with Bluetooth connectivity for remote configuration and monitoring, it is suitable for off-grid systems, photovoltaic installations, as well as campers, boats and special vehicles.
Orion-Tr Smart 48/12-30A Isolated DC-DC charger
Product reference:
39-8719076065586
The Victron Orion-Tr Smart 48/12-30A charger is an isolated DC-DC converter that allows for safe and efficient charging of 12V batteries from a 48V system. Equipped with Bluetooth connectivity for remote configuration and monitoring, it is suitable for off-grid systems, photovoltaic installations, as well as campers, boats and special vehicles.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
5 - 8
business days
Orion-Tr DC-DC Smart Charger 48/12-30A
with built-in Bluetooth. It allows direct charging of a hotel battery from the alternator
, limiting the current__MI_BR_6__ and protecting the battery from overcharging. Designed for dual-battery systems in vehicles or boats where the main battery is charged by
the alternator and the starter battery. The device can be monitored and programmed via the VictronConnect app, controlled remotely
(remote on/off switch), and utilizes engine run detection.
Main features:
Advanced three-stage DC→DC charger (Bulk, Absorption, Float) - ideal for dual-battery systems
in vehicles and boats.
- Bluetooth module
Built-in Bluetooth enables monitoring and configuration via VictronConnect, as well as remote control
and engine operation detection.
- Battery protection
Charging current control protects the service battery against excessive charging and overheating,
extending its service life.
- Protection against high temperatures
When the temperature increases, the charging current is automatically reduced, which increases the safety of the entire system.
- How the system works
Built-in sensors enable cooperation with modern alternators (e.g. Euro 5/Euro 6).
Engine shutdown detection system cuts off charging when the engine is turned off, preventing the starter battery from discharging.
Technical specifications:
Electrical parameters
- Input voltage range 32-70V
- Undervoltage shutdown 28 V
- Restart on undervoltage 30V
- Nominal output voltage 12.2V
- Output voltage adjustment range 10-15V
- Output voltage tolerance ±0.2V
- Output noise 2 mV rms
- Continuous output current (40°C) 30 A
- Maximum output current 40 A
- Short circuit output current 60 A
- Output power at 25°C 430 W
- Output power at 40°C 360 W
- Efficiency 89%
- No-load input current < 80 mA
- Power consumption in standby mode < 1 mA
- Can be used as a power source Yes
- Galvanic isolation 200V between input and output
Working conditions
- Operating temperature range -20 to +55°C (reduction of 3%/°C above 40°C)
- Humidity Max 95% non-condensing
Connectors and mechanics
- Direct Current (DC) Connector screw terminals, max. 16 mm²
- Libra 1.6 kg
- Dimensions (H x W x D) 130 × 186 × 70 mm
- Protection class IP43 (electronic part), IP22 (connectors part)
Standards and norms
- Security EN 60950
- Emission / Resistance EN 61000-6-3, EN 55014-1 / EN 61000-6-2, EN 61000-6-1, EN 55014-2
- Automotive Directive ECE R10-5
