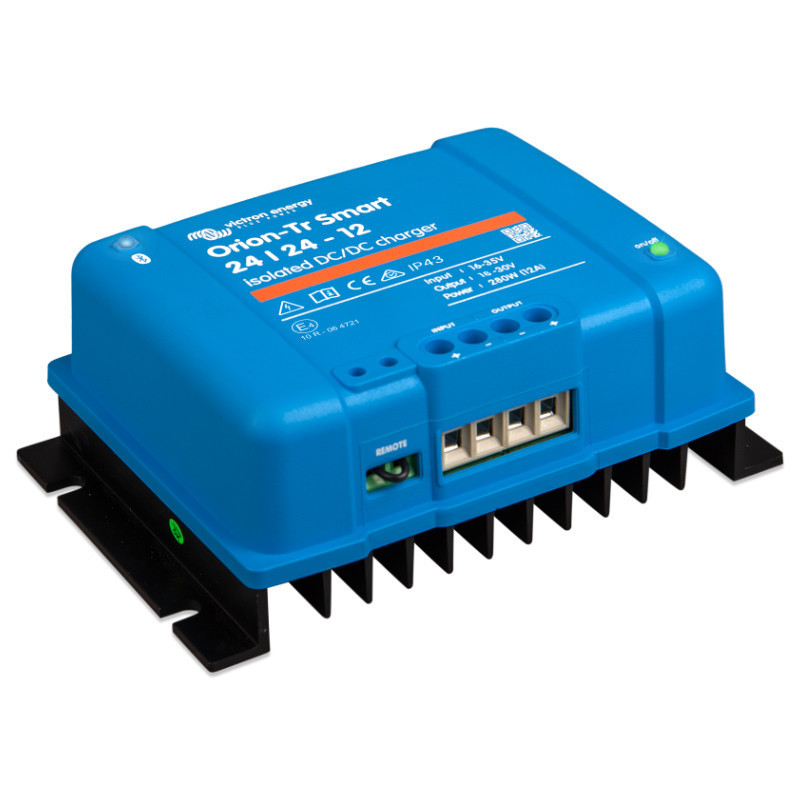

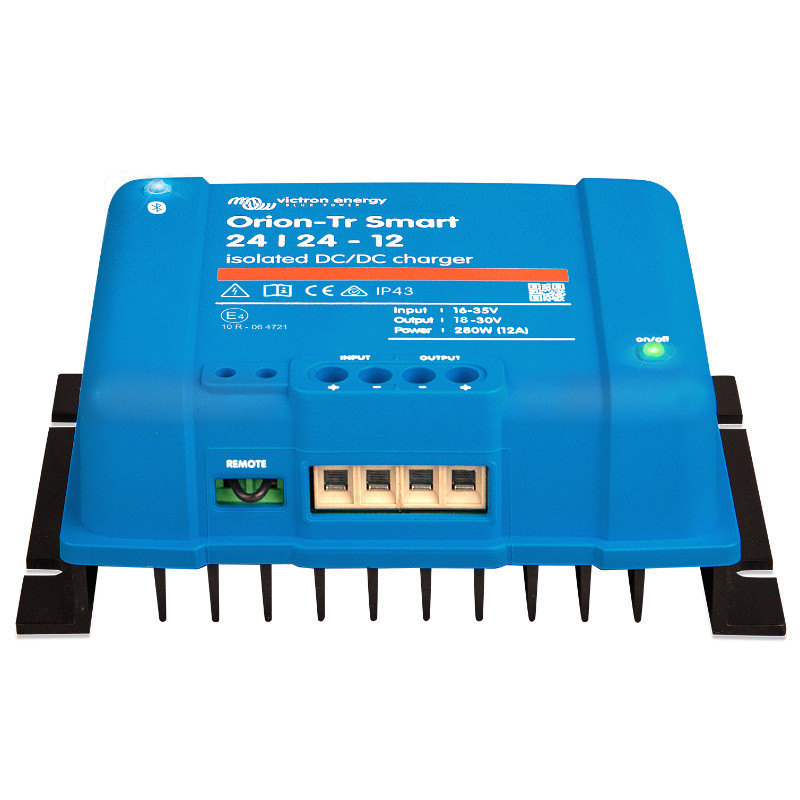

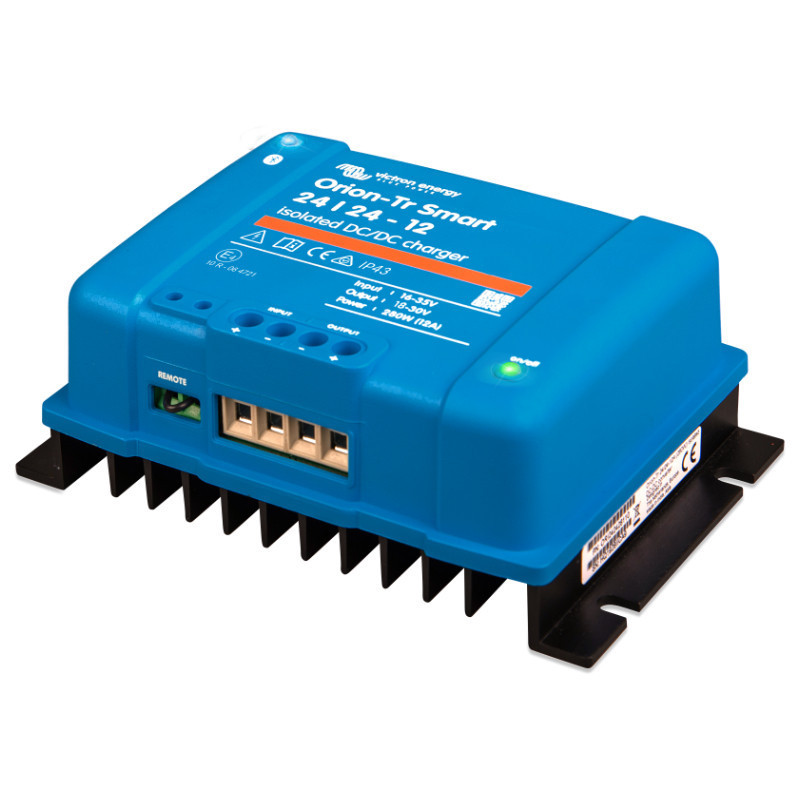

Orion-Tr Smart 24/24-12A Isolated DC-DC charger

Orion-Tr is an advanced DC-to-DC charger designed for maximum efficiency and safety in dual-battery systems. The device safely charges the hotel battery directly from the alternator, limiting the current to 12A, ensuring optimal charging and preventing battery overcharging. With this feature, Orion-Tr protects hotel batteries from overcharging and overcharging, extending their lifespan and improving the efficiency of the entire energy system in vehicles and boats.
Orion-Tr Smart is characterized by three-stage charging system, making it an excellent solution for all types of photovoltaic systems and installations in vehicles with dual batteries. This device is ideal for campers, motorhomes, yachts, and other vehicles where the reliability and efficiency of the charging system are a priority. An additional advantage of the charger is its built-in Bluetooth module, which allows you to monitor and manage the device using the VictronConnect app. This allows the user to remotely control operating parameters, adapting them to individual needs and conditions.

Intelligent energy management with advanced safety features

The Orion-Tr Smart 24/24-12A is equipped with advanced protective features including protection against excessive heating If the temperature rises, the device automatically reduces the charging current, protecting the system from overheating and ensuring safe operation in extreme conditions. Furthermore, the charger offers galvanic isolation, which protects both the starter battery and the hotel battery, ensuring complete operational safety.
Built-in sensors allow the device to detect engine operation, allowing the system to automatically turn off and on depending on the alternator's performance. This feature prevents unnecessary discharge of the starter battery, further protecting the entire system. The Orion-Tr Smart is compatible with Euro 5 and Euro 6 engines, making it ideal for modern vehicles requiring high energy efficiency.

Specification

• Model: Orion-Tr Smart 24/24-12A Isolated DC-DC charger


• Input voltage range: 16-35V


• Undervoltage shutdown: 14 V


• Restart on undervoltage: 15V


• Nominal output voltage: 24.2V


• Output voltage adjustment range: 20 - 30 V


• Output voltage tolerance: +/- 0.2 V


• Output noise: 2mV rms


• Continuous output current at nominal output voltage (40 °C): 12 A


• Maximum output current (10 s) at nominal output voltage: 15 A


• Short circuit output current: 30 A


• Output power at 25 °C: 320 W


• Output power at 40 °C: 280 W


• Efficiency: 89%


• No-load input current: < 80 mA


• Power consumption in standby mode: < 1 mA


• Galvanic isolation: 200V DC between input, output and chassis


• Operating temperature range: from -20 to +55 °C (reduction by 3% per °C above 40 °C)


• Humidity: Max 95% non-condensing


• Direct Current (DC) Connector: Screw-on terminals


• Maximum wire cross-section: 16 mm² AWG6


• Libra: 1.3 kg


• Dimensions (H x W x D): 130 x 186 x 80 mm


• Protection class: IP43 (electronic components), IP22 (connection area)


• Security: EN 60950


• Emission / Resistance: EN 61000-6-3, EN 55014-1 / EN 61000-6-2, EN 61000-6-1, EN 55014-2


• Automotive Directive: ECE R10-5

This modern DC-DC charger ensures optimal power management in vehicles and boats with dual-battery systems. Intelligent battery protection features and a built-in Bluetooth module give the user complete control over the charging process. This robust and reliable device is the ideal solution for demanding installations, ensuring both safety and operational efficiency.
