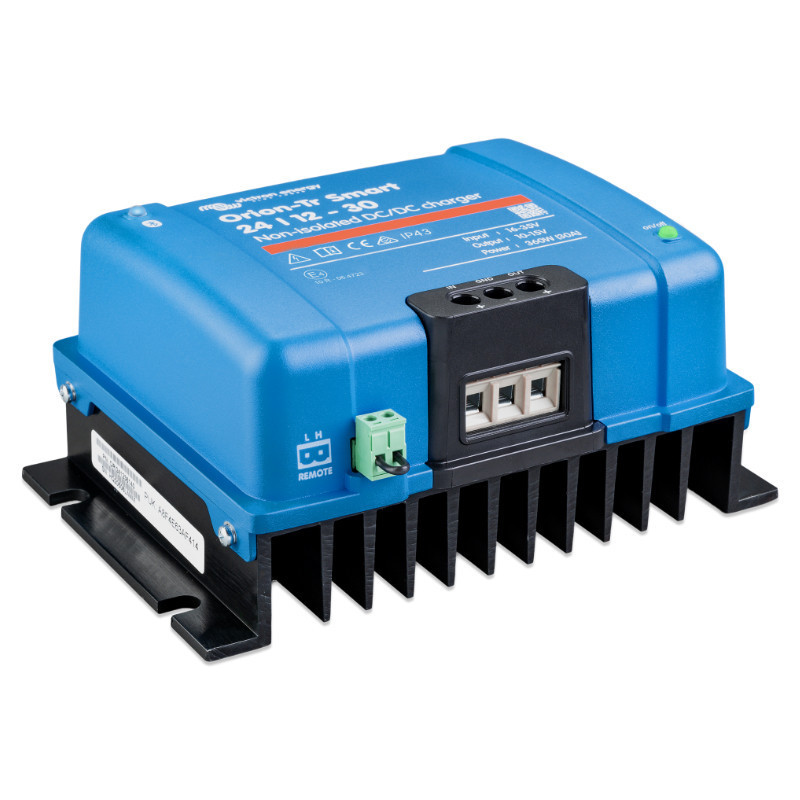

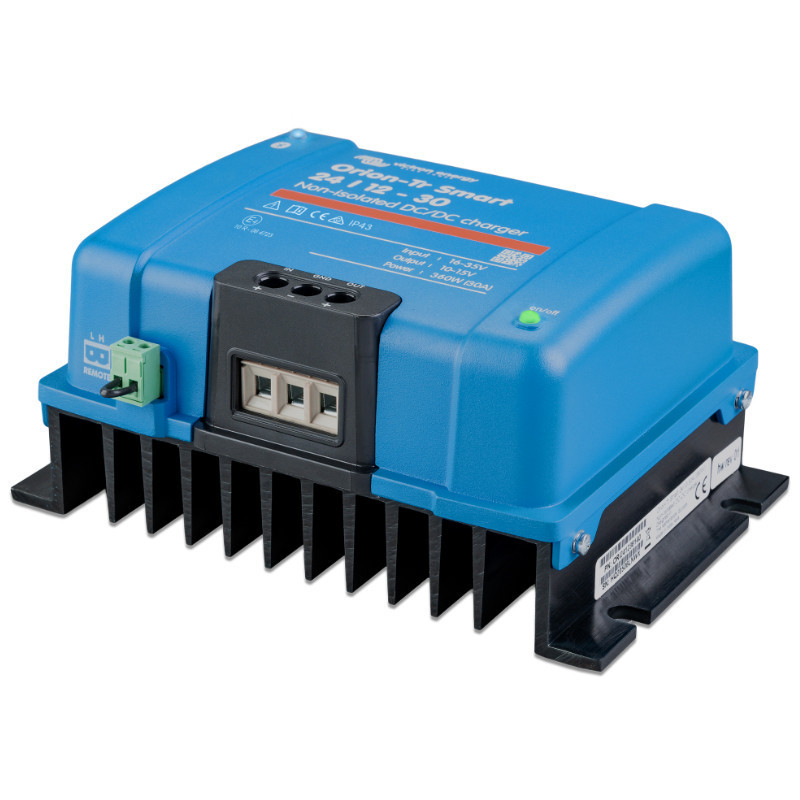

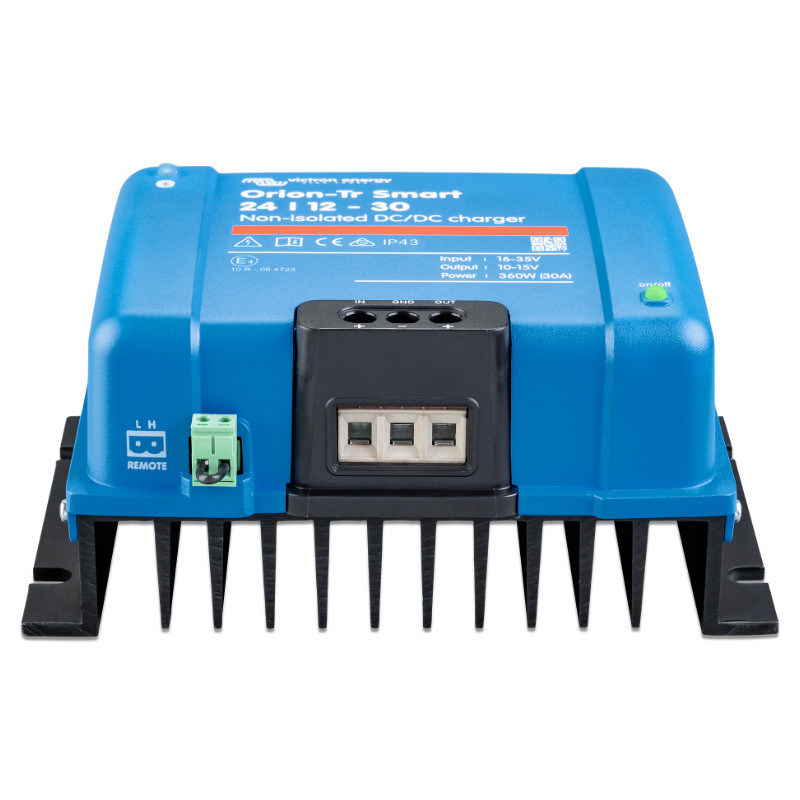

Orion-Tr Smart 24/12-30A Non-isolated DC-DC ch.

is a brand known for its technologically advanced solutions, Orion-Tr Smart 24/12-30A This is one of their flagship products, ideal for those needing a reliable charger for vehicles and boats with dual-battery systems. This DC-to-DC charger operates in three adaptive stages, ensuring maximum charging efficiency and protecting batteries from excessive wear. Thanks to advanced features like built-in Bluetooth, users can monitor and program the device remotely via an app. VictronConnect, which significantly facilitates its use.
Charger Orion-Tr Smart was designed for use in vehicles and boats, where a dual-battery system relies on charging the service battery using an alternator and a starter battery. This device offers high efficiency and exceptionally simple operation, making them an ideal choice for users seeking advanced technology. Built-in protection features, such as overcurrent and overheating protection, ensure the long life of both the charger and the batteries.

Advanced Bluetooth and Battery Protection Features

Built-in Bluetooth this is one of the key features of the charger Orion-Tr Smart Thanks to this technology, users can not only remotely monitor the charging process but also program various settings, allowing for complete personalization of the device based on specific needs. The app allows users to monitor voltage, current, and device operating status, as well as remotely turn the charger on and off. Furthermore, the engine detection system automatically adjusts the charger's operation, preventing excessive strain on the starter battery.
Orion-Tr Smart It also offers advanced battery protection. The charger controls the charging current, protecting the service battery from overcharging. This ensures that the battery is charged at the appropriate rate, extending its lifespan and preventing damage from overheating. Furthermore, the device supports modern Euro 5 and Euro 6 engines, making it exceptionally versatile.

Reliability and Technical Durability

One of the main advantages of the charger Orion-Tr Smart 24/12-30A is its exceptional durability. Built for long-term operation, it can withstand operating temperatures ranging from -20°C to +55°C and in case of temperature increase, it automatically reduces the charging current, which prevents overheating. Additionally, the charger has an exceptionally low current consumption in standby mode, amounting to only 1 mA, which means that it does not burden the battery when not in use.
The device also has a high efficiency level 88%, which minimizes energy loss and guarantees efficient charging. Thanks to the use of solid materials and appropriate design, the charger meets safety standards. EN 60950 and the automotive directive ECE R10-5, which confirms its reliability and safe operation in the most difficult conditions.

Technical specifications

• Model: Orion-Tr Smart 24/12-30A Non-isolated


• Input voltage range: 20-35V


• Undervoltage shutdown: 14 V


• Restart on undervoltage: 15V


• Nominal output voltage: 12.2V


• Output voltage adjustment range: 10-15V


• Output voltage tolerance: +/- 0.2 V


• Output noise: 2mV rms


• Continuous output current at 40 °C: 30 A


• Maximum output current (10 s) at nominal output voltage minus 20%: 45 A


• Short circuit output current: 60 A


• Output power at 25 °C: 430 W


• Output power at 40 °C: 360 W


• Efficiency: 88%


• No-load input current: < 100 mA


• Power consumption in standby mode: < 1 mA


• Galvanic isolation: 200V DC between input, output and chassis


• Operating temperature range: from -20 to +55 °C (reduction by 3% per °C above 40 °C)


• Humidity: Max 95% non-condensing


• Direct Current (DC) Connector: Screw-on terminals


• Maximum wire cross-section: 16 mm² AWG6


• Libra: 1.8 kg


• Dimensions (H x W x D): 130 x 186 x 70 mm


• Protection class: IP43 (electronic components), IP22 (connection area)


• Security: EN 60950


• Emission / Resistance: EN 61000-6-3, EN 55014-1 / EN 61000-6-2, EN 61000-6-1, EN 55014-2


• Automotive Directive: ECE R10-5

This reliable and advanced DC-DC charger is ideal for dual-battery systems in vehicles and boats. Thanks to its built-in Bluetooth module and advanced battery protection, the device offers full control over the charging process and long life for both the charger and the battery. It's the perfect solution for those who value modern technology and reliability.
