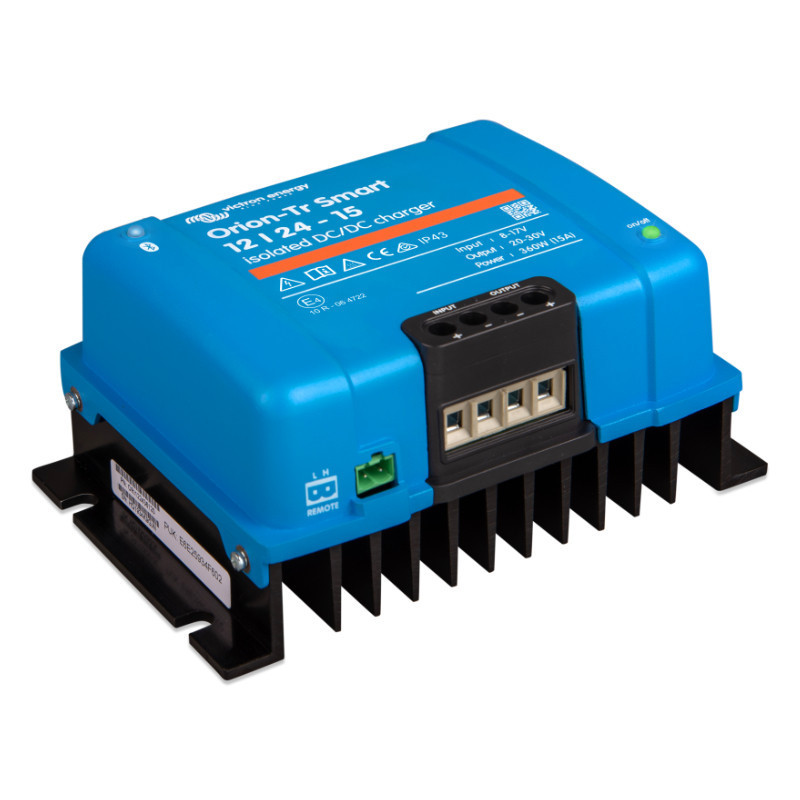

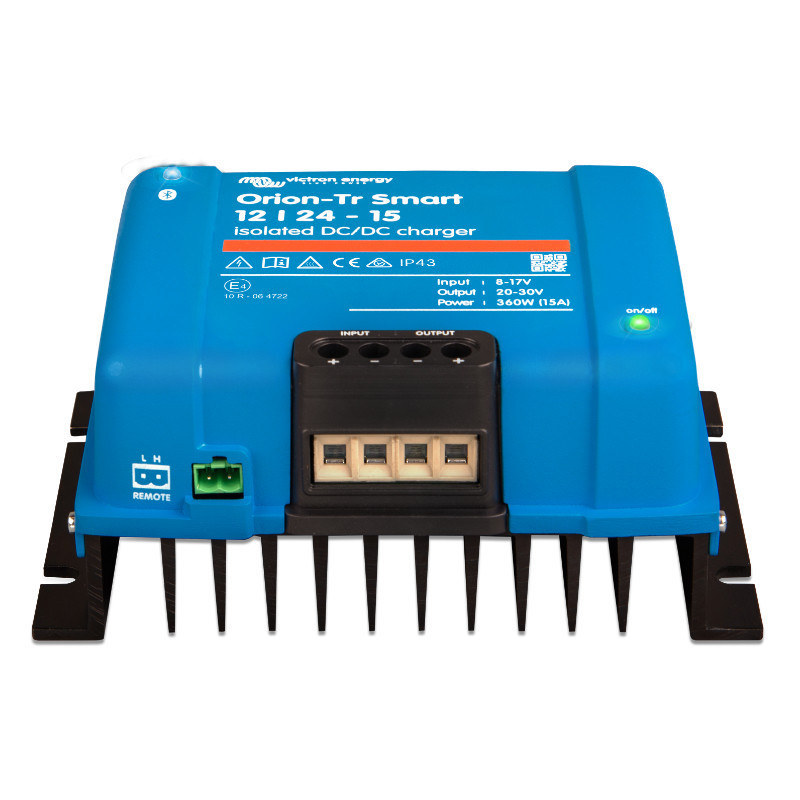

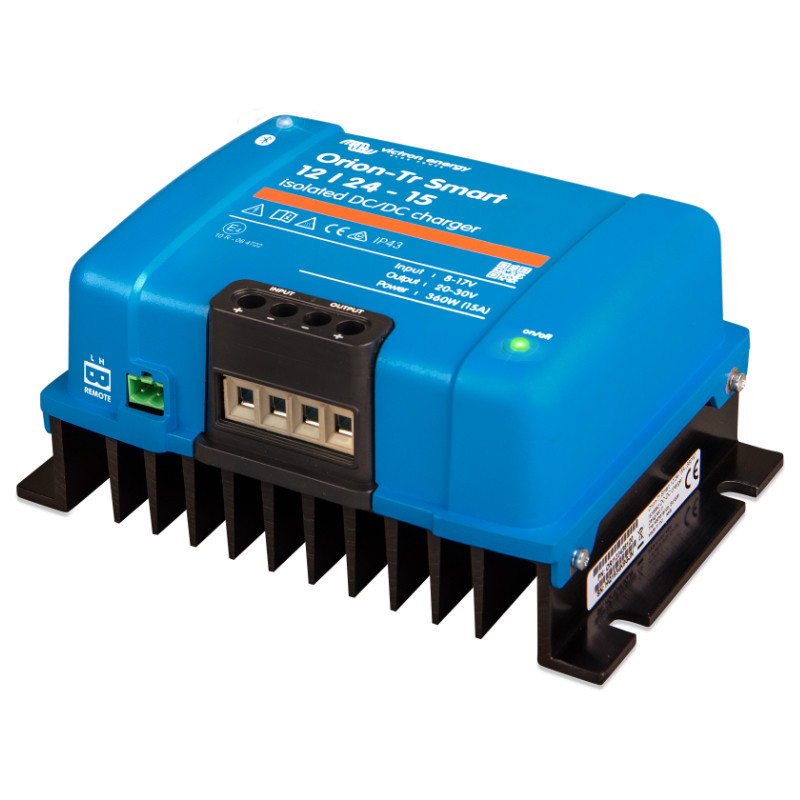

Orion-Tr Smart 12/24-15A Isolated DC-DC charger

The Orion-Tr Smart 12/24-15A Isolated DC-DC Charger from Victron Energy is a modern device that charges the hotel battery directly from the engine compartment battery. With a built-in 15A current limiter, it effectively protects the hotel battery from overload and overcharging, extending its lifespan.

Efficient charging in dual-battery systems

The Orion-Tr Smart is a three-stage DC charger, ideal for vehicles and boats equipped with dual-battery systems. It manages alternator power and transfers it to the hotel battery, allowing it to be charged safely while protecting the vehicle's main battery from excessive strain.

Bluetooth connectivity and remote management

Thanks to the built-in Bluetooth module, users can monitor and configure the charger's operation using the VictronConnect app. Remote control allows for convenient management of system parameters, significantly simplifying device operation without requiring physical access to the charger.

Advanced battery protection

Orion-Tr Smart controls and limits the charging current, effectively protecting the hotel battery from overheating and overcharging. Precise power management ensures optimal battery charging, preventing damage and extending its lifespan.

Automatic engine management

The charger is equipped with automatic engine detection, which allows the device to automatically shut off when the vehicle is stopped. This feature protects the starter battery from unnecessary discharge, which is especially useful in dual-battery systems.

Technical specifications:

• Input voltage range: 10-17 V


• Undervoltage shutdown: 7V


• Restart on undervoltage: 7.5V


• Nominal output voltage: 24.2V


• Output voltage adjustment range: 20 - 30 V


• Output voltage tolerance: +/- 0.2 V


• Output noise: 2 mV rms


• Continuous output current at nominal output voltage (40°C): 15 A


• Maximum output current (10 s) at nominal output voltage minus 20%: 25 A


• Short circuit output current: 40 A


• Output power at 25°C: 430 W


• Output power at 40°C: 360 W


• Efficiency: 88%


• No-load input current: < 100 mA


• Power consumption in standby mode: < 1 mA


• Galvanic isolation: 200V DC between input, output and chassis


• Operating temperature range: from -20°C to +55°C (3% reduction per °C above 40°C)


• Humidity: max. 95% non-condensing


• Direct Current (DC) Connector: Screw-on terminals


• Maximum wire cross-section: 16 mm² (AWG6)


• Libra: 1.6 kg


• Dimensions (H x W x D): 130 x 186 x 70 mm


• Protection class: IP43 (electronic components), IP22 (connection area)


• Security: EN 60950


• Emission/Immunity: EN 61000-6-3, EN 55014-1 / EN 61000-6-2, EN 61000-6-1, EN 55014-2


• Automotive Directive: ECE R10-5

The Orion-Tr Smart 12/24-15A is a reliable device that provides safe and efficient charging for hotel batteries, while also offering advanced remote management features and battery protection for vehicles and boats.
