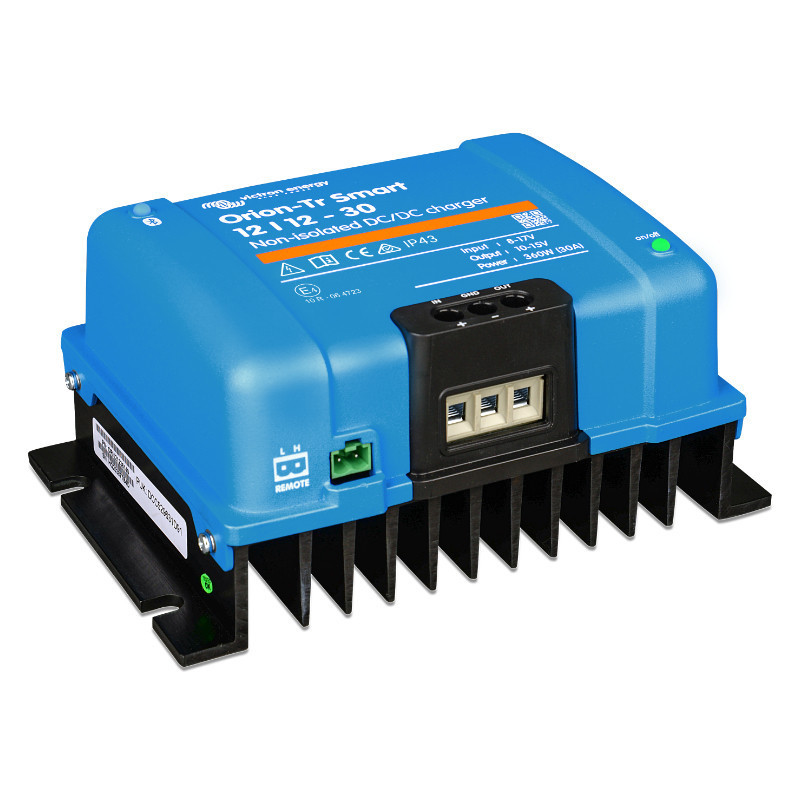

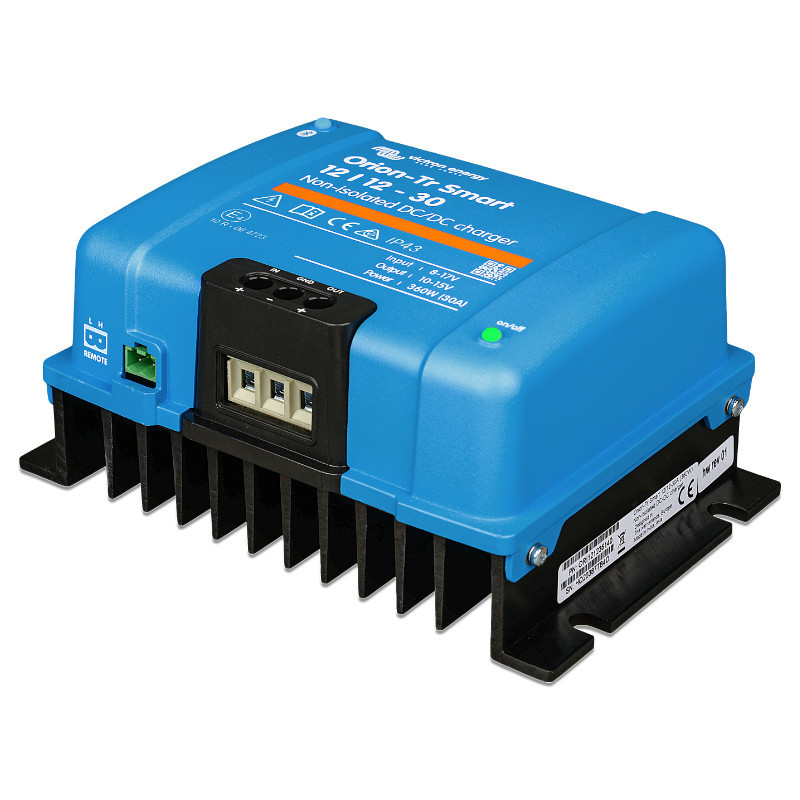

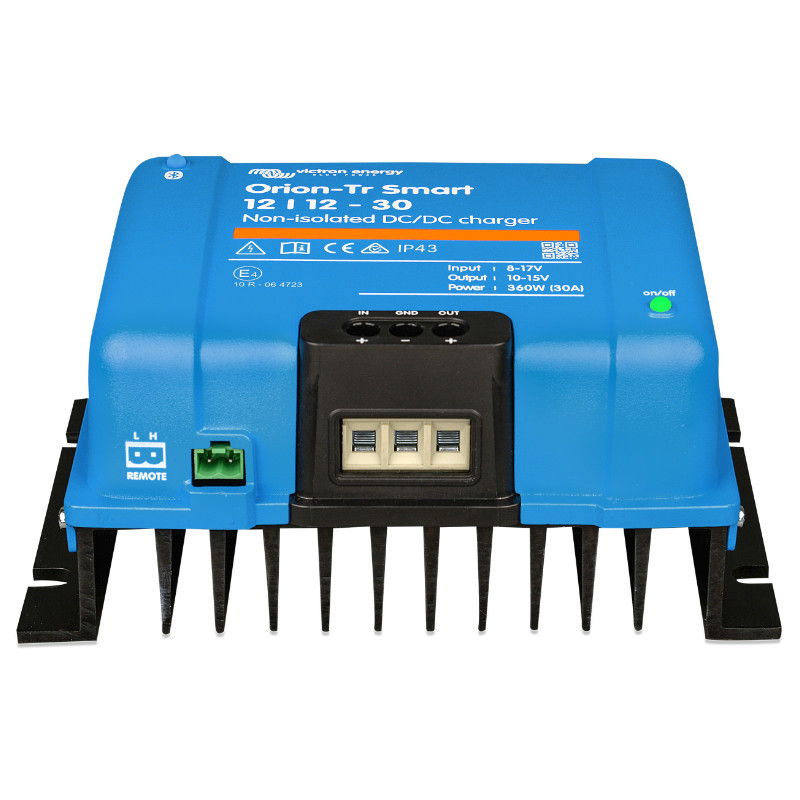

Orion-Tr Smart 12/12-30A Non-isolated DC-DC ch.

Charger Orion-Tr Smart 12/12-30A This advanced device is ideal for dual-battery systems, ensuring efficient charging of the hotel battery from the alternator in the engine compartment. The device limits the charging current to 30A, thus protecting the hotel battery from excessive load. Thanks to technology Non-Isolated, the charger operates on a common battery ground, which makes installation easier and simplifies the power supply system.
Thanks three-stage charging process, this charger is the ideal solution for vehicles, campers and boats where a stable power supply is needed for service batteries. Orion-Tr Smart enables monitoring and programming via the application VictronConnect thanks to the built-in Bluetooth module. Remote control of the device's operation is not only convenient but also safe, ensuring full protection of the power system.

Smart charging features and efficiency

Charger Orion-Tr Smart 12/12-30A This device stands out for its excellent performance and advanced protection features. Thanks to built-in sensors, the charger works perfectly with Euro 5 and Euro 6 engines, making it compatible with modern vehicles. Overheating protection is another important feature that automatically reduces the charging current when the ambient temperature rises above a certain level. This way, the charger protects both itself and the connected batteries, ensuring long and trouble-free operation.
With remote control via the app VictronConnect, the user has full control over the device, being able to monitor its operation in real time and adjust the charging parameters to individual needs. Bluetooth It allows for easy programming and monitoring, making the device exceptionally convenient to use. Additionally, thanks to the engine detection function, the charger automatically shuts off when the vehicle's engine stops, protecting the starter battery from excessive discharge.

Solid construction and full compatibility

Device Orion-Tr Smart 12/12-30A It features not only intelligent features but also a robust design. Built to withstand harsh operating conditions, the charger is rated for protection. IP43, which makes it resistant to dust and moisture. Additionally, screw-on terminals enable easy and safe connection of cables with a maximum cross-section 16 mm², which ensures a stable connection even in difficult conditions.
The charger is compatible with a wide voltage range, which means it can be used in various vehicles and power systems. The device supports 12/12V, 24/24V, 12/24V and 24/12V, which allows for flexible adaptation to the existing installation. The device weighs 1.8 kg and its compact dimensions make installation and operation extremely simple.

Technical specifications

• Model: Orion-Tr Smart 12/12-30A Non-isolated


• Input voltage range: 10-17 V


• Undervoltage shutdown: 7V


• Restart on undervoltage: 7.5V


• Nominal output voltage: 12.2V


• Output voltage adjustment range: 10-15V


• Output voltage tolerance: +/- 0.2 V


• Output noise: 2mV rms


• Continuous output current at nominal output voltage 40°C: 30 A


• Maximum output current (10 s) at nominal output voltage minus 20%: 40 A


• Short circuit output current: 60 A


• Output power at 25°C: 430 W


• Output power at 40°C: 360 W


• Efficiency: 87%


• No-load input current: < 80 mA


• Power consumption in standby mode: < 1 mA


• Galvanic isolation: 200V DC between input, output and chassis


• Operating temperature range: from -20 to +55°C (3% reduction per °C above 40°C)


• Humidity: Max 95% non-condensing


• Direct Current (DC) Connector: Screw-on terminals


• Maximum wire cross-section: 16 mm² AWG6


• Libra: 1.8 kg


• Dimensions (H x W x D): 130 x 186 x 70 mm


• Protection class: IP43 (electronic components), IP22 (connection area)


• Security: EN 60950


• Emission / Resistance: EN 61000-6-3, EN 55014-1 / EN 61000-6-2, EN 61000-6-1, EN 55014-2


• Automotive Directive: ECE R10-5

Charger Orion-Tr Smart 12/12-30A This technologically advanced and extremely efficient device ensures safe and efficient charging of service batteries. Its robust design and intelligent protection features make it an ideal choice for those needing a reliable power solution for vehicles and boats. The ability to remotely monitor and control the device via Bluetooth makes operation exceptionally convenient, while overheating protection and other safety features ensure long life and trouble-free operation.
