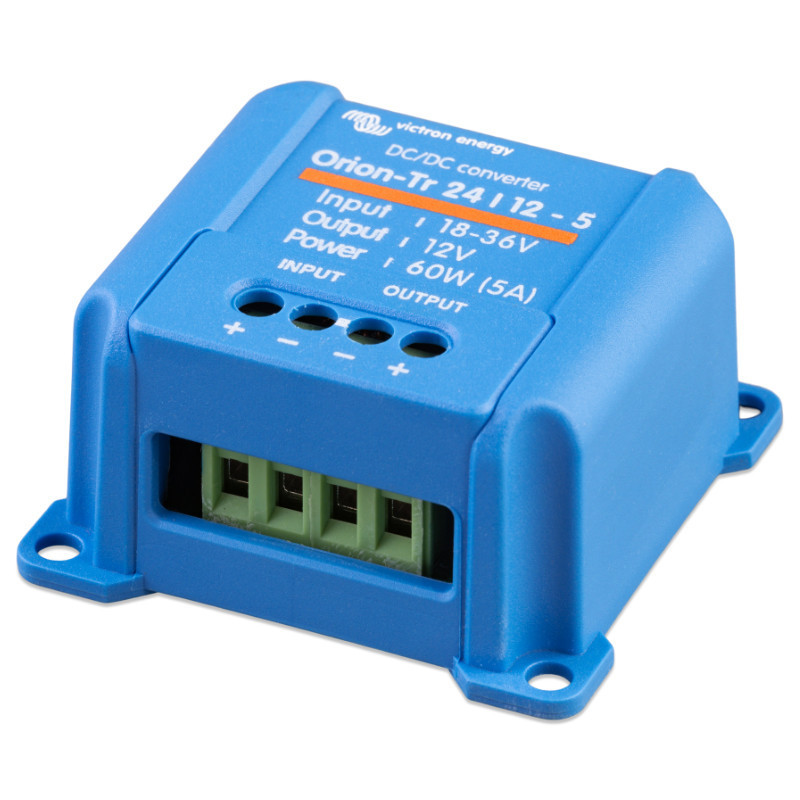

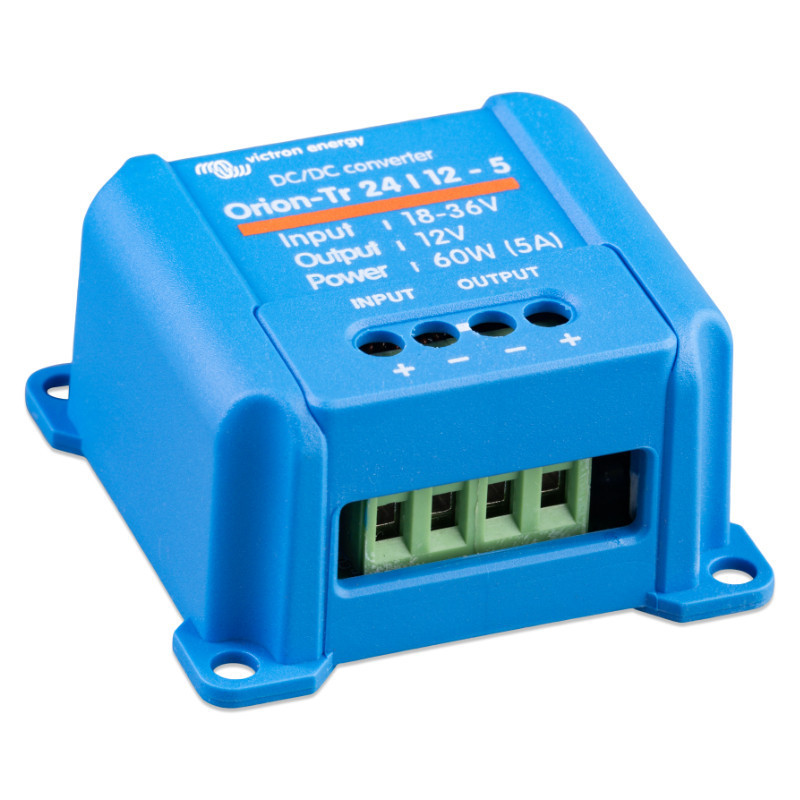

Orion-Tr 24 / 12-5 (60W)

is a modern DC-DC converter designed for maximum efficiency and minimal energy loss. This model, signed by the renowned brand Victron Energy, is ideal for a variety of applications where a voltage reduction from 24V to 12V is required. The extremely efficient converter ensures full efficiency at a level 95%, which reduces energy losses to an absolute minimum, which is particularly important in solar systems, campers, and vessels. This allows you to power electrical devices with full voltage stability, regardless of operating conditions.
One of the key advantages of the model Orion-Tr is his ease of installation Requiring no specialized tools, the device can be installed quickly and intuitively, making it an ideal solution for both amateurs and professionals. operating status indicators They give the user full control over the converter's operation, making monitoring extremely simple. The converter is also resistant to harsh weather conditions, making it an excellent choice for outdoor installations where devices are exposed to external factors. Housing meeting the IP43 standard provides protection against moisture and dust, which further increases the durability and reliability of this device.

Versatile applications and advanced technologies

Converter Orion-Tr is an ideal solution for a variety of environments requiring voltage conversion. Whether it's a photovoltaic system, a campervan installation, or powering a vessel, the converter provides a stable output voltage at 12.7V, which makes it suitable for powering sensitive electronic devices. Thanks to the voltage stabilization capability, Orion-Tr allows for safe powering of all types of current receivers that require constant, precisely controlled voltage.
Additionally, the device is characterized by low no-load current, amounting to less than 20 mA, which is crucial in situations when the device is in standby mode. The compact size of the converter, amounting to 53 x 51 x 27 mm, and its low weight (only 0.09 kg ) make it an ideal solution for locations where mounting space is limited. Despite its small size, the Orion-Tr offers full output power 60W and continuous output current at the level 5A, which guarantees reliable operation even in demanding conditions.

Technical specifications

• Model: Orion-Tr 24/12-5A 60W


• Input voltage range: 18-35V


• Output voltage: 12.7V


• Efficiency: 95%


• Continuous output current: 5 A


• Max output current: 7 A


• Galvanic isolation: NO


• No-load current: < 20 mA


• Operating temperature range: from -20°C to +55°C (power reduction by 3% for each °C above 40°C)


• DC connector: Screw-on terminals


• Maximum wire cross-section: 3.3 mm² AWG12


• Dimensions (H x W x D): 53 x 51 x 27 mm


• Libra: 0.09 kg

Converter Orion-Tr 24/12-5A This exceptionally efficient DC-DC converter is ideal for a wide range of applications, from solar systems to RVs. Its high energy efficiency and simple installation make it an excellent solution for users seeking reliability and energy savings. Its compact size and high functionality make the Orion-Tr a choice that ensures long-term, trouble-free operation in all conditions.
