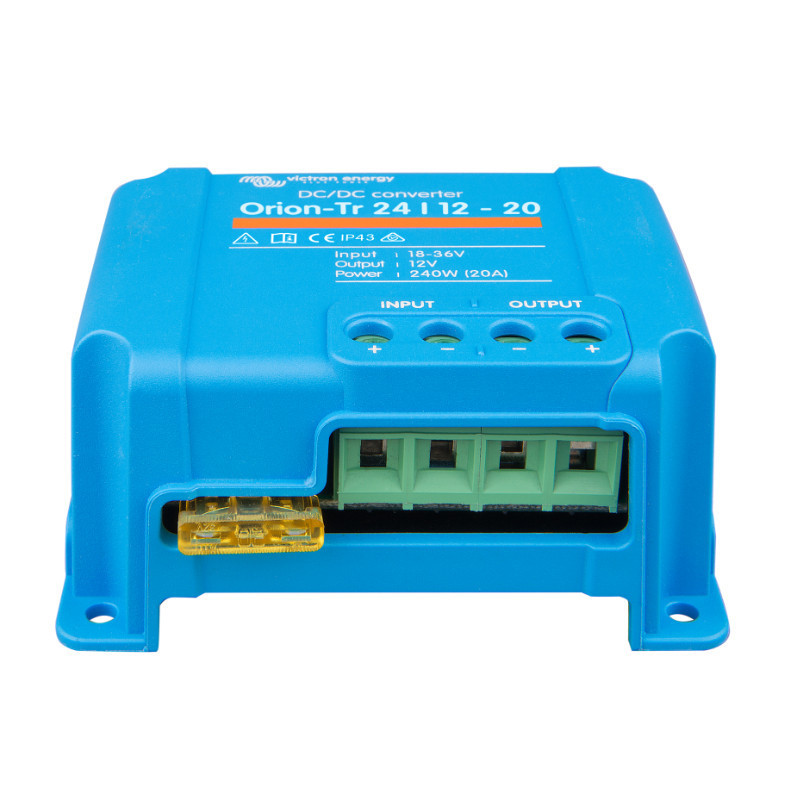

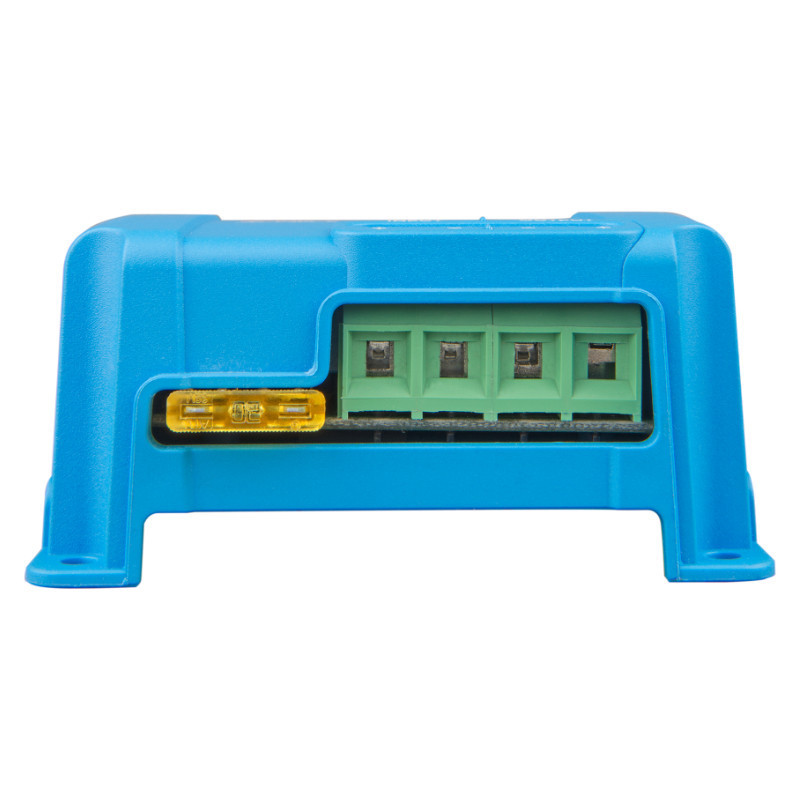

Orion-Tr 24 / 12-20 (240W)

is an advanced DC-DC converter created by the brand Victron Energy, which is designed to offer the highest quality of energy conversion and operational reliability. Thanks to its exceptionally high energy efficiency of 97% This converter minimizes energy losses, making it an excellent choice for power systems with high power demands. This converter model can convert 24V to a stable 12V, which is crucial for a variety of applications such as photovoltaic systems, RVs, and vessels. Thanks to minimal energy losses and efficient synchronous rectification, the Orion-Tr guarantees reliable and efficient operation, delivering sufficient power to power both sensitive electronic devices and more demanding loads.
Easy installation is another feature that distinguishes this model from other converters. Thanks intuitive connections and easily accessible screw-on terminals, the installation process requires no specialized tools, making it easy for even less experienced users to install the converter. Status indicators help monitor the device's operation, further simplifying ongoing use and maintenance. Its compact size and relatively low weight allow the Orion-Tr to fit in limited spaces, making it ideal for systems where efficient use of space is key.

Performance and Resistance to Harsh Conditions

Converter Orion-Tr 24/12-20A This device stands out not only for its excellent performance but also for its versatility. Whether you want to power a campervan, a rooftop solar system, or a vessel, this converter will meet all your requirements. Thanks to its wide range of applications, input voltage range From 18V to 35V and stable output voltage 12.7V, the converter is perfect for powering various devices requiring constant and precise voltage. Furthermore, low power consumption in standby mode (no-load current below 35 mA ) makes the device very economical, which is especially important in systems operating for long periods in standby mode.
Resistance to difficult operating conditions is another advantage of this model. The operating temperature range is -20°C to +55°C and housing with IP43 protection ensure that the device can cope with both cold and hot climates, as well as environments exposed to dust and moisture. Strong screw-on clamps ensure the stability of electrical connections and the maximum cross-section of the wire 6 mm² allows you to work with solid cables, which further increases the safety of use. The compact dimensions of the device (only 73 x 94 x 45 mm ) and its low weight 0.25 kg make it easy to carry and install in hard-to-reach places, making it an excellent choice for a variety of applications, regardless of the installation location.

Technical specifications

• Model: Orion-Tr 24/12-20A 240W


• Input voltage range: 18-35V


• Output voltage: 12.7V


• Efficiency: 97%


• Continuous output current: 20 A


• Maximum output current: 25 A


• Galvanic isolation: NO


• No-load current: < 35 mA


• Operating temperature range: from -20°C to +55°C (power reduction by 3% for each °C above 40°C)


• DC connector: Screw-on terminals


• Maximum wire cross-section: 6 mm² AWG10


• Dimensions (H x W x D): 73 x 94 x 45 mm


• Libra: 0.25 kg

Converter Orion-Tr 24/12-20A (240W) It's the perfect solution for those looking for an efficient, easy-to-install inverter with a wide range of applications. Thanks to its high energy efficiency and durable design, the device is suitable for campers, solar systems, and vessels. Its small size and simple installation make it an exceptionally functional choice for anyone seeking reliability and energy efficiency.
