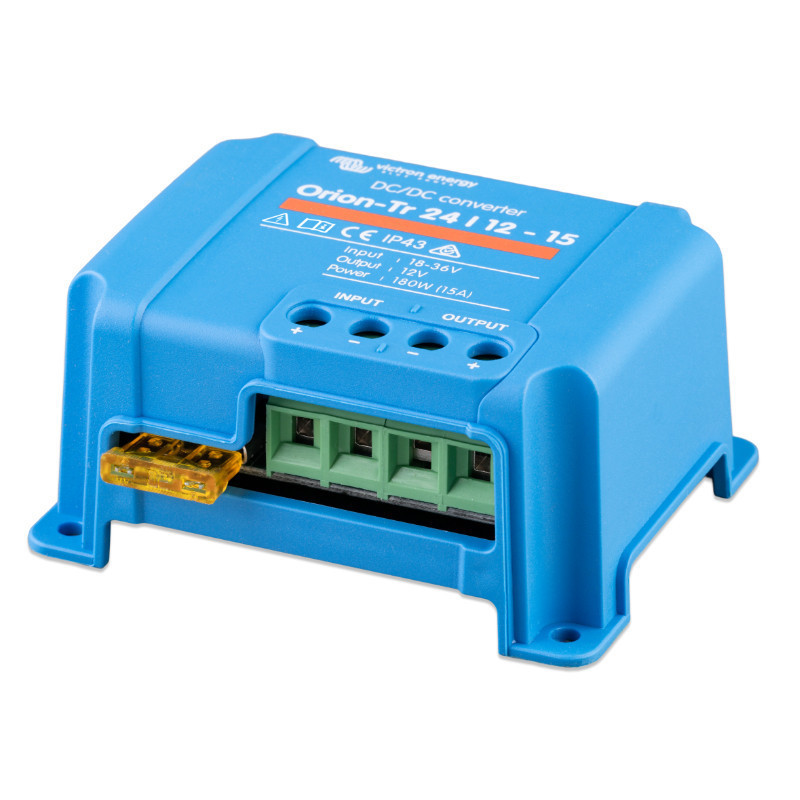

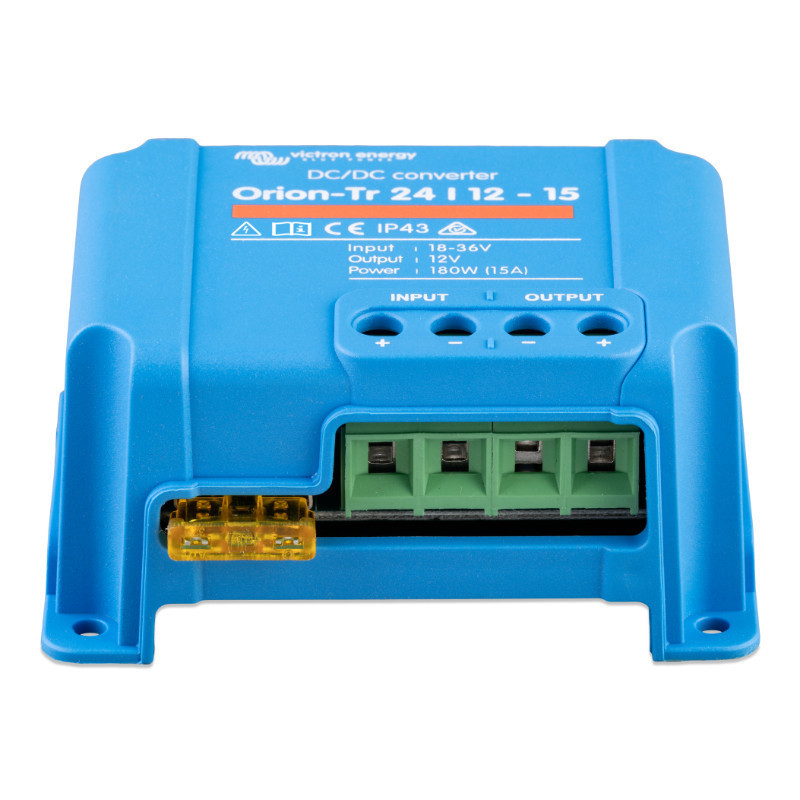

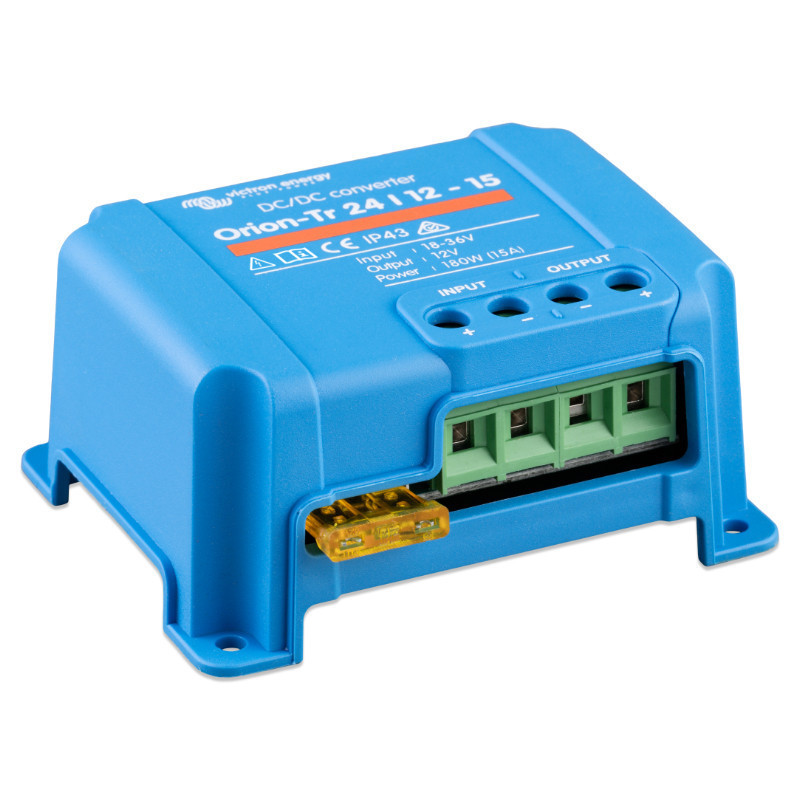

Orion-Tr 24/12-15 (180W) DC-DC converter

from the brand Victron Energy is an advanced DC to DC converter designed to efficiently convert 24V to a stable 12V, making it an ideal choice for a wide range of applications. high efficiency of 97%, the device minimizes energy losses during conversion, which translates into resource savings and more efficient energy use in photovoltaic systems, recreational vehicles, yachts, and other installations requiring a stable output voltage. Exceptional operating efficiency makes the converter not only economical but also environmentally friendly, reducing energy waste.
One of the most important advantages of this model is ease of installation and use. Screw-on terminals and intuitive connectors make installation quick and easy, requiring no specialized tools. Additionally, status indicators allow the user to monitor the converter's operation in real time, facilitating ongoing maintenance and allowing for a quick response to any anomalies. Thanks to the protection IP43, the device can operate in harsh environmental conditions while maintaining full performance and reliability.

Versatility and Efficiency

is not only energy efficient, but also has a wide range of applications. The device can be successfully used in both power supply systems solar, as well as in installations in campers or on yachts. Thanks to the stabilization of the output voltage at the level 12.7V, the converter provides power to delicate electronic devices such as communication systems, LED lighting, and other receivers that require a constant voltage. Maximum output current amounting to 20A guarantees that the device can handle short-term loads, making it a versatile solution even in more demanding applications.
The device is also very economical in idle mode - no-load current below 35 mA ensures that the converter consumes a minimum amount of energy, which translates into greater efficiency of the entire power supply system, especially in applications where systems operate in standby mode for long periods. Furthermore, thanks to operating temperature range From -20°C to +55°C, the converter copes perfectly in various climatic conditions, and at loads above 40°C automatically reduces its power by 3% for each degree Celsius, which increases safety of use.

Technical specifications

• Model: Orion-Tr 24/12-15A 180W


• Input voltage range: 18-35V


• Output voltage: 12.7V


• Efficiency: 97%


• Continuous output current: 15 A


• Maximum output current: 20 A


• Galvanic isolation: NO


• No-load current: < 35 mA


• Operating temperature range: from -20°C to +55°C (power reduction by 3% for each °C above 40°C)


• DC connector: Screw-on terminals


• Maximum wire cross-section: 6 mm² AWG10


• Dimensions (H x W x D): 73 x 94 x 45 mm


• Libra: 0.25 kg

It's an efficient and reliable voltage conversion solution suitable for a wide range of applications, from solar systems to powering RVs and yachts. Its high efficiency, ease of installation, and robust construction make it built for long-term operation in harsh environments. With advanced features and status indicators, the Orion-Tr is the ideal choice for anyone requiring stable and safe voltage conversion.
