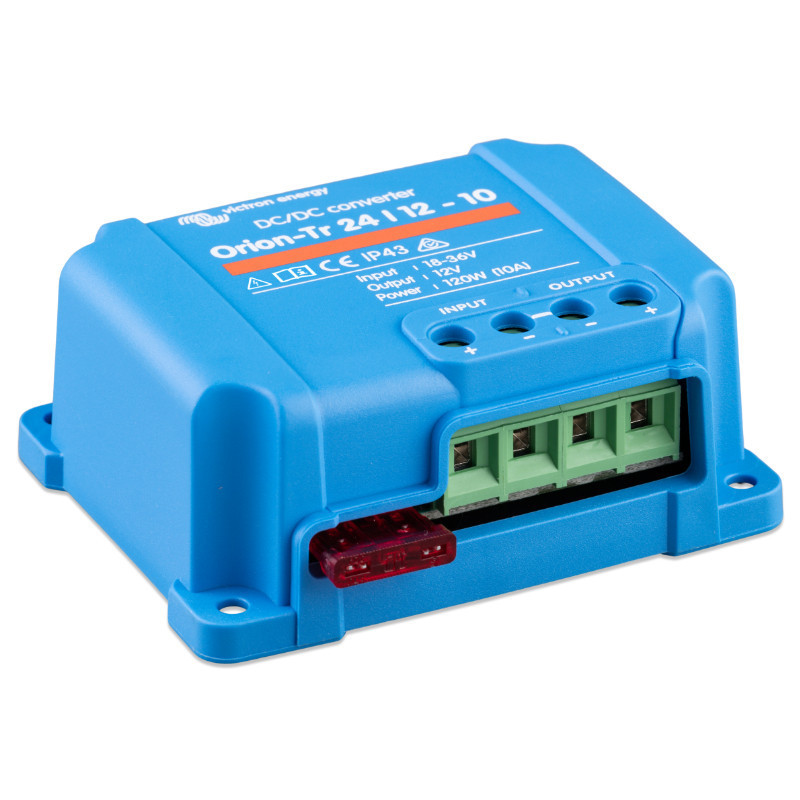

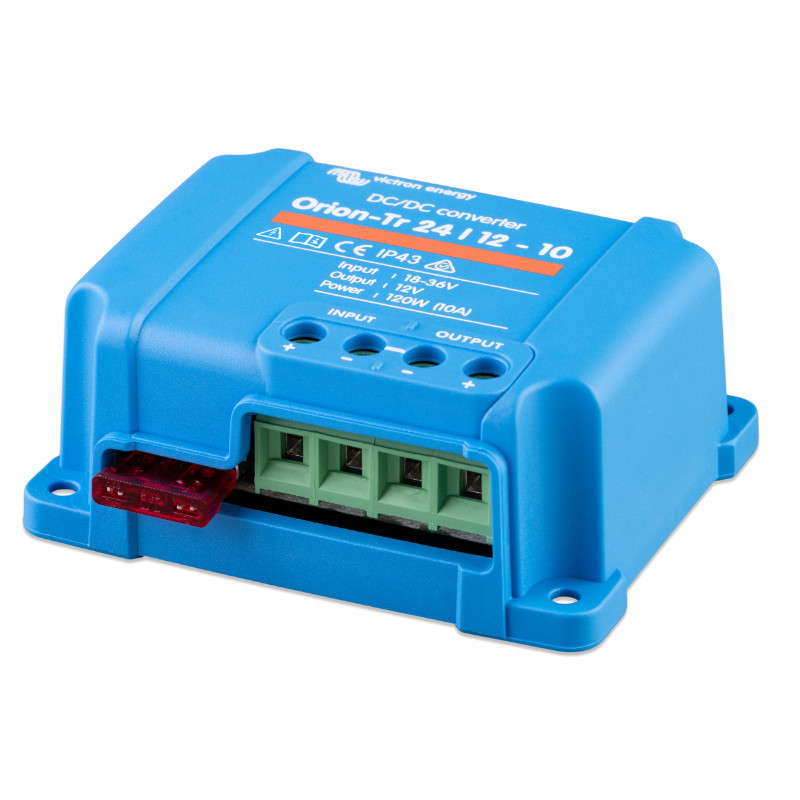

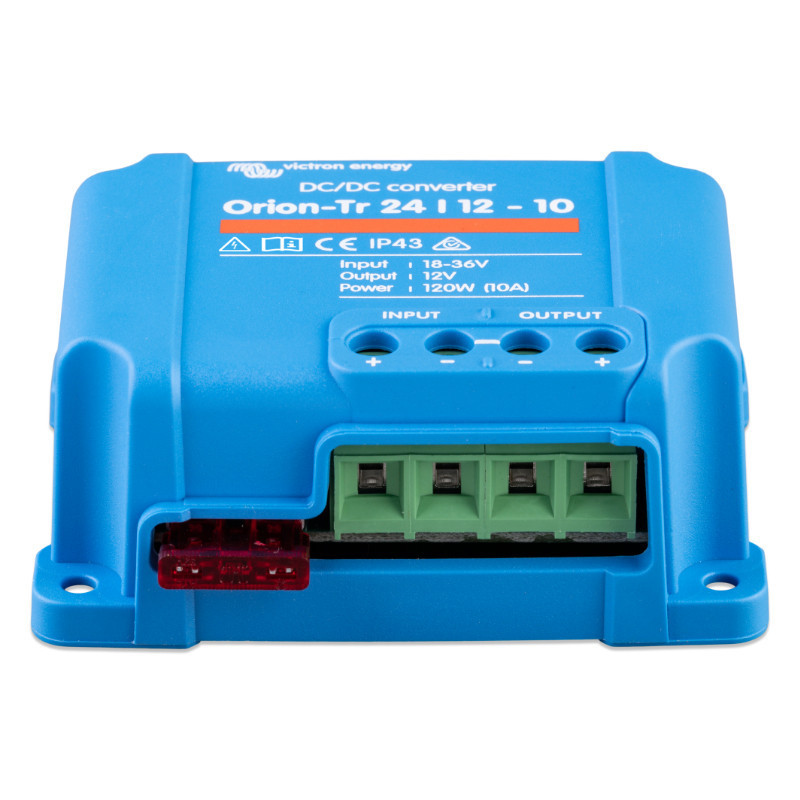

Orion-Tr 24 / 12-10 (120W)

Converter Orion-Tr 24/12-10A (120W) is an innovative device from a renowned brand Victron Energy, which provides exceptionally efficient conversion of DC voltage from 24V to 12V, minimizing energy losses to an absolute minimum. Thanks to advanced synchronous rectification technology, the converter achieves incredible efficiency of up to 97%, making it one of the most efficient in its class. It is perfect for systems requiring voltage reduction, whether in solar installations, recreational vehicles, or vessels, where power must be stable and reliable. This means Orion-Tr can be successfully used to power devices that are more sensitive to voltage fluctuations, ensuring their long life and stable operation.
One of the key advantages of this converter is ease of installation and use It has been designed to make installation and ongoing maintenance as easy as possible. Intuitive connectors and status indicators allow for quick monitoring of device operation without the need for complex tools or specialist knowledge. Compact size (only 73 x 94 x 37 mm ) and low weight ( 0.2 kg ) make the converter easy to install even in small spaces, making it an ideal choice for campers, yachts or photovoltaic systems with limited installation space.

High Efficiency and Versatility of Applications

The Orion-Tr 24/12-10A is a device that stands out not only for its high efficiency but also for its wide range of applications. Whether you need stable voltage to power electronics onboard your yacht or to power devices in a solar system, this converter ensures consistently high performance in a variety of environmental conditions. Operating temperature range From -20°C to +55°C guarantees that the device will operate reliably in various climates and the housing meets protection standards IP43 protects against dust and moisture, which makes the device resistant to unfavorable external factors.
It is also worth emphasizing that low no-load current (less than 45 mA ) ensures that the converter consumes a minimum amount of energy in standby mode, which is particularly beneficial in installations where the device operates continuously or remains idle for a long time. screw-on terminals and the ability to handle cables with a cross-section of up to 6 mm² make installation and connection extremely simple and do not require complicated operations.

Technical specifications

• Model: Orion-Tr 24/12-10A 120W


• Input voltage range: 18-35V


• Output voltage: 12.7V


• Efficiency: 97%


• Continuous output current: 10 A


• Maximum output current: 12 A


• Galvanic isolation: NO


• No-load current: < 45 mA


• Operating temperature range: from -20°C to +55°C (power reduction by 3% for each °C above 40°C)


• DC connector: Screw-on terminals


• Maximum wire cross-section: 6 mm² AWG10


• Dimensions (H x W x D): 73 x 94 x 37 mm


• Libra: 0.2 kg

Converter Orion-Tr 24/12-10A (120W) This technologically advanced device combines high performance, ease of installation, and reliability. With an efficiency of 97% and a compact size, it's ideal for a variety of applications, including solar systems and RV installations. Its hassle-free installation, versatility, and high weather resistance make it a product that will satisfy the needs of even the most demanding users.
