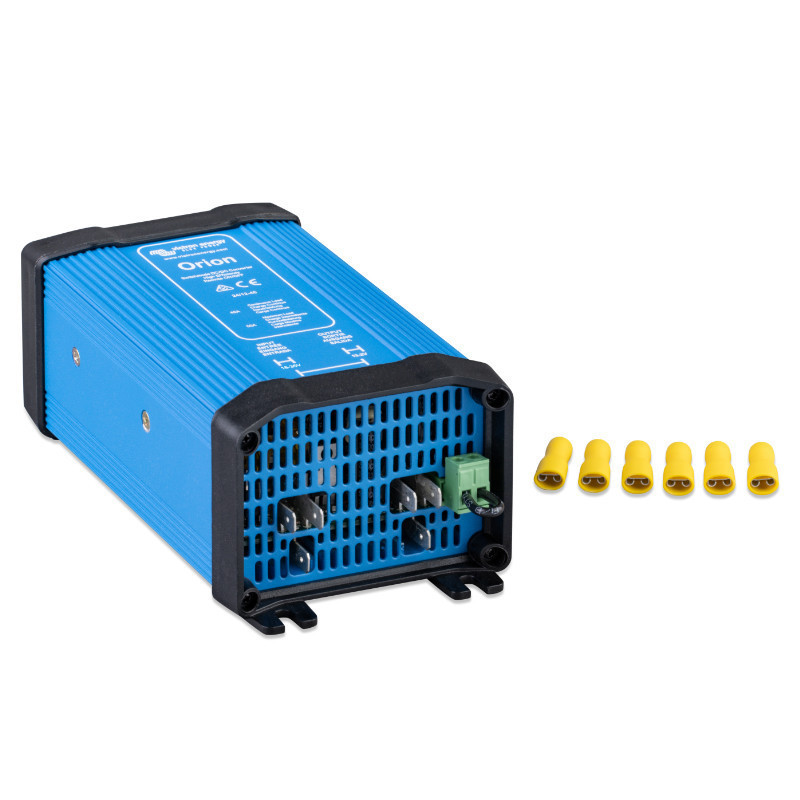

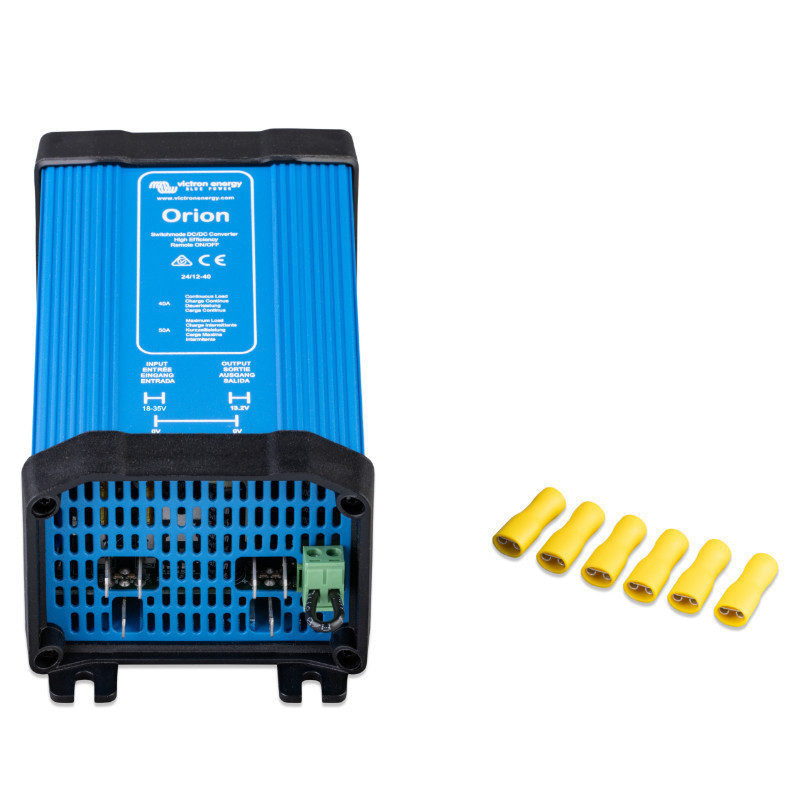

Orion 24/12-60 DC-DC converter IP20

is a high-current DC-DC converter from the brand Victron Energy, designed to efficiently convert 24V voltage into stable 13.2V with continuous output current 60 A The model belongs to the segment high power non-isolated Orion series, where high power, compact design and reliability in difficult mobile working conditions are paramount. Thanks to the efficiency at the level 95% Thermal losses are minimal, and the load on the 24V source battery remains low even during long-term operation at full load. The converter is equipped with an input remote on/off (remote on/off), which eliminates the need for a costly high-current contactor in the input circuit—a small switch on the dashboard or a signal from the vehicle's ignition is sufficient. IP20 with active fan cooling temperature-controlled allows you to maintain the full 60 A even at elevated ambient temperatures, and the double 6.35 mm connectors facilitate quick and reliable installation of large-section cables.

Performance and Applications

Wide input voltage range 18-35V DC provides full compatibility with 24V systems - also during alternator charging or regeneration in start-stop vehicles. Built-in deep discharge protection ( shutdown at 14V, restart at 18V ) protects the source battery from damage, and no-load current below 20 mA allows you to safely leave the converter in standby mode. The converter is suitable for powering 12V devices (fridge, lighting, water pump, radio, GPS) from a 24V traction battery - typical applications include trucks, buses, yachts, campers, mobile workshops and ambulances, where high power is required on the 12V line without the need for a separate battery. The housing is resistant to harsh operating conditions in the temperature range from -20°C to +55°C (derate 3%/°C above 40°C), and the quality of Victron Energy is confirmed by a set of standards EN 60950, EN 61000-6-1/2/3, EN 55014-1/2 and the automotive directive ECE R10-4 .The maximum output current reaches 70 A (temporarily), which provides a power reserve when switching on loads with high starting current.

Technical specifications

• Model: Orion 24/12-60 IP20 (ORI241260020)


• Producer: Victron Energy


• Input voltage range: 18-35V DC


• Output voltage: 13.2 V (constant, unregulated)


• Continuous output current: 60 A


• Max output current: 70 A


• Efficiency: 95%


• Galvanic isolation: No (non-isolated)


• Shutdown current: < 20 mA


• Low voltage shutdown: 14 V


• Low voltage restart: 18 V


• Remote on/off: Yes


• Fan cooling (temp. controlled): Yes


• Parallel connection: NO


• Operating temperature range: from -20°C to +55°C (derate 3%/°C above 40°C)


• Protection class: IP20


• DC connectors: double 6.35 mm connectors


• Dimensions (h × w × d): 65 × 88 × 185 mm


• Libra: 0.85 kg


• Standards: EN 60950, EN 61000-6-3, EN 55014-1, EN 61000-6-2, EN 61000-6-1, EN 55014-2, ECE R10-4

It's a smart choice wherever 12V devices must operate reliably in a 24V system—from campers and yachts, through truck fleets, to industrial emergency power systems. The combination of high efficiency, high continuous power, and proven Victron Energy design guarantees years of trouble-free operation.
