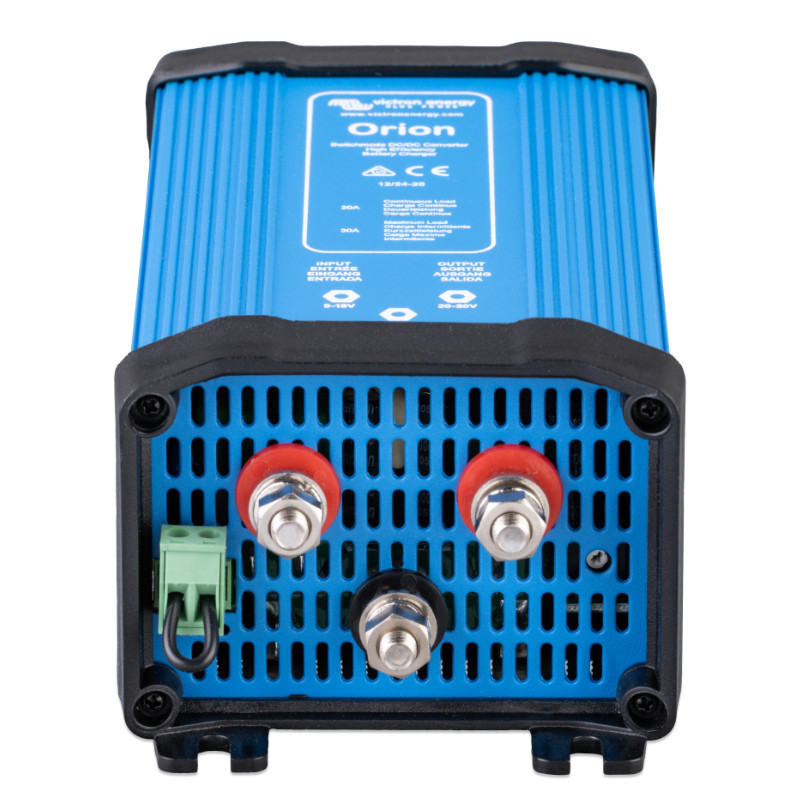

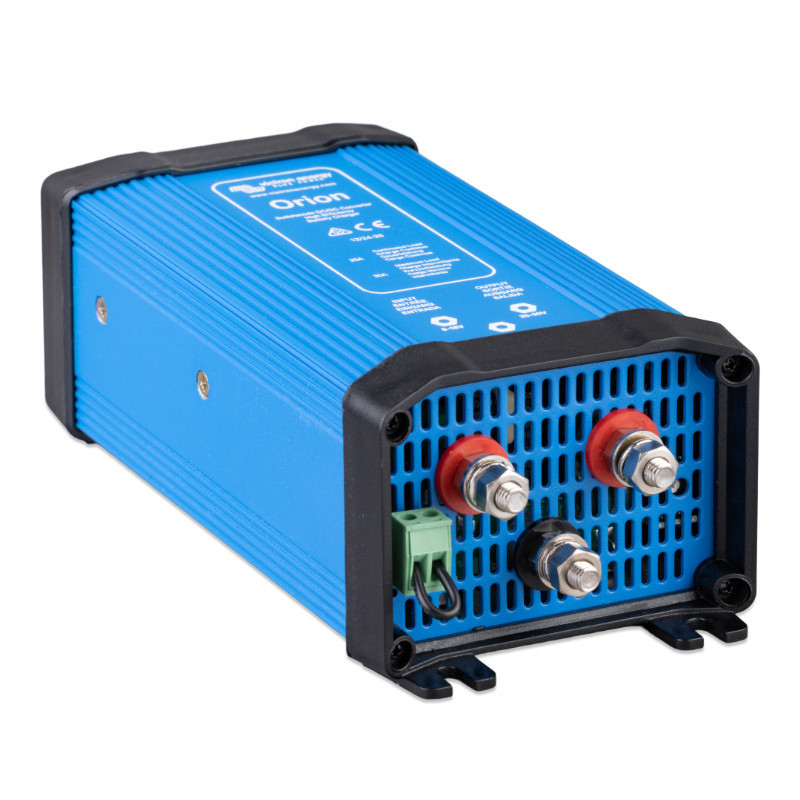

Orion 12 / 24-20

DC converters such as Orion 12/24-20 are indispensable tools in the world of modern electronics. They enable smooth and efficient transformation of direct current (DC) voltage from one level to another, which is crucial in a wide range of applications. From photovoltaic systems, to electric vehicles, to complex energy installations - Orion 12/24-20 It is used wherever reliable voltage conversion is required.
Converter Orion DC-DC 12/24-20 It boasts scalability and the ability to parallel up to five devices, allowing for flexible output current increases as needed. This device not only converts voltage but also serves as a battery charger, making it ideal for charging 12V ignition batteries in 24V systems. Thanks to its built-in on-off switch, controlled by low voltage, operation is simple and intuitive, eliminating the need for high-voltage switches in the input circuit.

Versatility and Advanced Technology

Converter Orion DC-DC 12/24-20 Designed with efficiency and safety in mind, the device is equipped with advanced safety features such as overload protection, thermal protection, and reverse voltage protection, ensuring stable operation even in demanding conditions. Fan-assisted cooling temperature-controlled prevents overheating, which extends the life of the converter and ensures its reliability in the long term.
An additional advantage is remote on/off, which allows you to control the device from a distance. This is especially useful in installations that require management from a central point, such as lighting systems, charging stations, or audio systems. Orion 12/24-20 offers a high efficiency of 93%, which minimizes energy losses during conversion, making it more energy-efficient and economical to operate.

Technical Specifications

• Input voltage range (V AC): 9-18


• Shutdown under voltage (V): 8


• Restart under voltage (V): 10


• Output voltage adjustable by potentiometer: Yes


• Output voltage (V): Adjustable 20 - 30V, factory setting 26.4V


• Efficiency (%): 93%


• Suitable for battery buffer charging: Yes


• Possibility of parallel connection: Yes


• Continuous output current (A): 20


• Maximum output current (A): 30


• Fan-assisted cooling (temperature controlled): Yes


• Galvanic isolation: NO


• Shutdown current: < 30mA


• Remote on/off: Yes


• Operating temperature range: -20°C to +55°C (3% reduction for each °C above 40°C)


• DC connection: M6 screws


• Weight (kg): 0.9 kg


• Dimensions hxwxd (mm): 65x88x195

Standards:

• Direct Current (DC) Connector: EN 60950


• Issue: EN 61000-6-3, EN 55014-1


• Resistance: EN 61000-6-2, EN 61000-6-1, EN 55014-2


• Automotive Directive: ECE R10-4

Converter Orion 12/24-20 This powerful and versatile device is ideal for a wide range of applications, including photovoltaic systems, electric vehicles, and power generation installations. Its advanced features, such as remote control, high efficiency, and scalability, make it an excellent choice for anyone requiring reliable voltage conversion. Its robust design and numerous safety features make it ideal for anyone looking for reliable power conversion. Orion 12/24-20 ensures long-term operation in the most demanding conditions.
