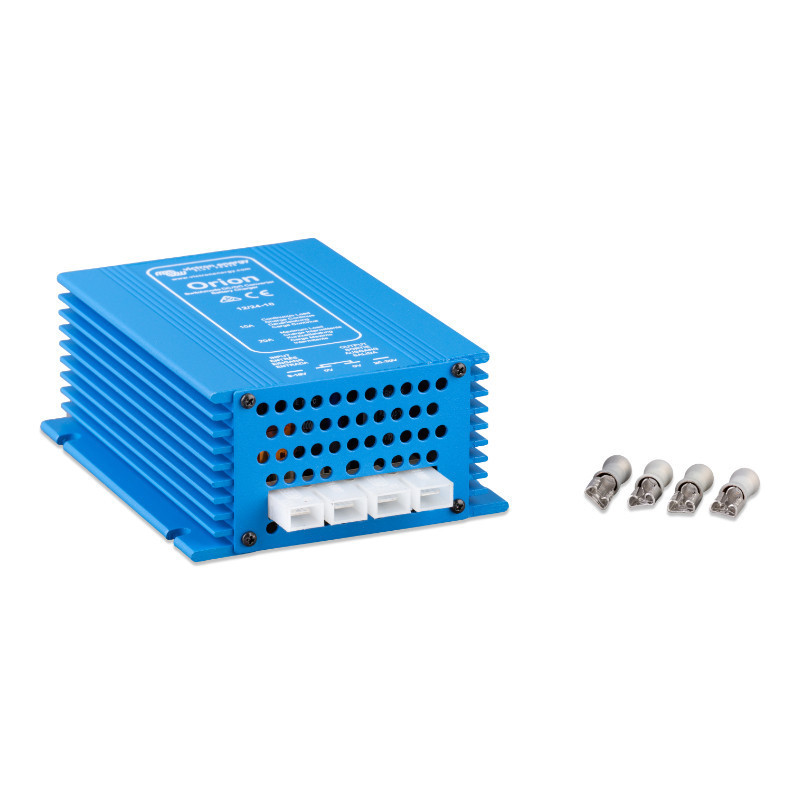

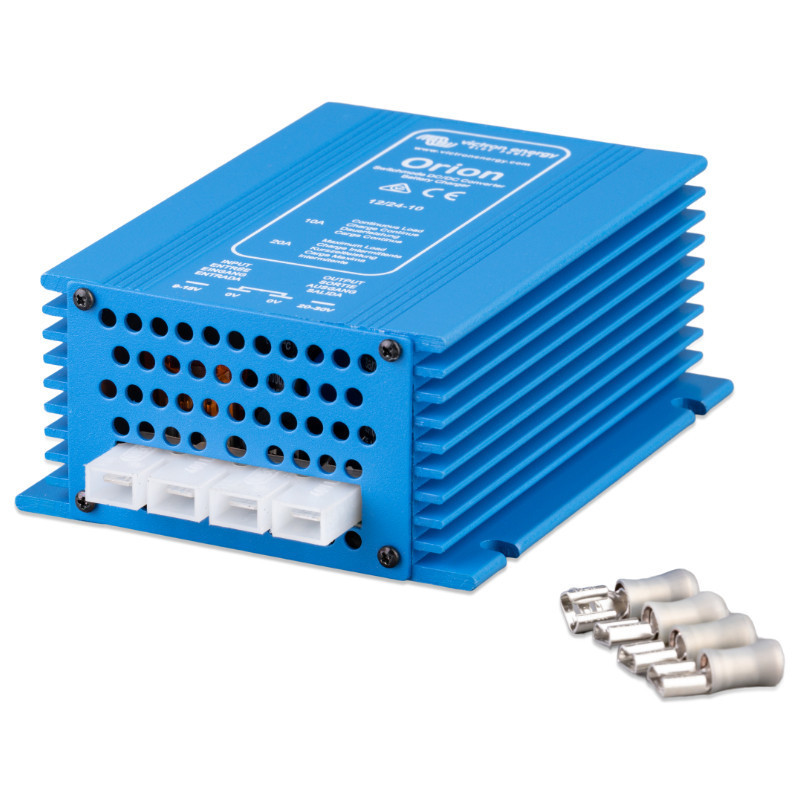

Orion 12 / 24-10

Converter Orion 12/24-10 This advanced device enables safe and efficient conversion of 12V DC to 24V DC, ideal for systems requiring a variety of voltage levels. Its use is particularly important in vehicles, photovoltaic systems, and other installations where different power levels must be supplied to different loads. Thanks to its adjustable output voltage, the device can be precisely tailored to the user's individual requirements.
The Orion 12/24-10 boasts a high efficiency of 95%, meaning minimal energy loss during operation. The converter also offers advanced safety features such as overload protection, overheating protection, and reverse polarity protection. This ensures stable operation of the device, even in harsh environments. Furthermore, the Orion converter supports parallel connection, allowing for increased output power, adapting the device to more demanding applications.

Loading and Scalability

One of the distinguishing features of the converter Orion 12/24-10 Its main advantage is its ability to function as a battery charger. Thanks to its adjustable output voltage, it can be used to charge 12V batteries in 24V systems. Furthermore, the ability to connect multiple units in a parallel configuration allows for increased efficiency and better adaptation to individual power needs. This makes the device exceptionally versatile and flexible for use in both residential and commercial power systems.
This converter also features an "on-off" switch that simplifies power management by eliminating the need for external high-voltage switches. This solution allows for easy control of the device's operation using low-voltage switches or power management systems. The converter's scalability, combined with its reliability, makes it an excellent choice for systems composed of multiple components.

Technical Specifications

• Parameters / Model: Orion DC-DC 12/24-10A


• Input voltage range (V AC): 9-18


• Power off (V): 8


• Restart under voltage (V): 10


• Output voltage adjustable by potentiometer: Yes


• Output voltage (V): Adjustable 20-30V, factory setting 26.4V


• Efficiency (%): 95%


• Suitable for battery buffer charging: Yes


• Possibility of parallel connection: Yes


• Continuous output current (A): 10 A


• Max output current (A): 20 A


• Fan assisted cooling (temp. controlled): NO


• Galvanic isolation: NO


• Shutdown current: < 15 mA


• Remote on/off: NO


• Operating temperature range: from -20 to +55°C (3% reduction per °C above 40°C)


• DC connection: 6.3mm Faston Latches


• Weight (kg): 0.4 kg


• Dimensions (H x W x D) in mm: 45 x 90 x 125

Standards

• Direct Current (DC) Connector: EN 60950


• Issue: EN 61000-6-3, EN 55014-1


• Resistance: EN 61000-6-2, EN 61000-6-1, EN 55014-2


• Automotive Directive: ECE R10-4

This versatile and reliable DC/DC converter is ideal for powering devices in variable voltage power systems. Its high efficiency and advanced protection features make it suitable for both commercial and residential applications. Parallel connection and adjustable output voltage make this model an exceptionally flexible solution that can be adapted to various power needs.
