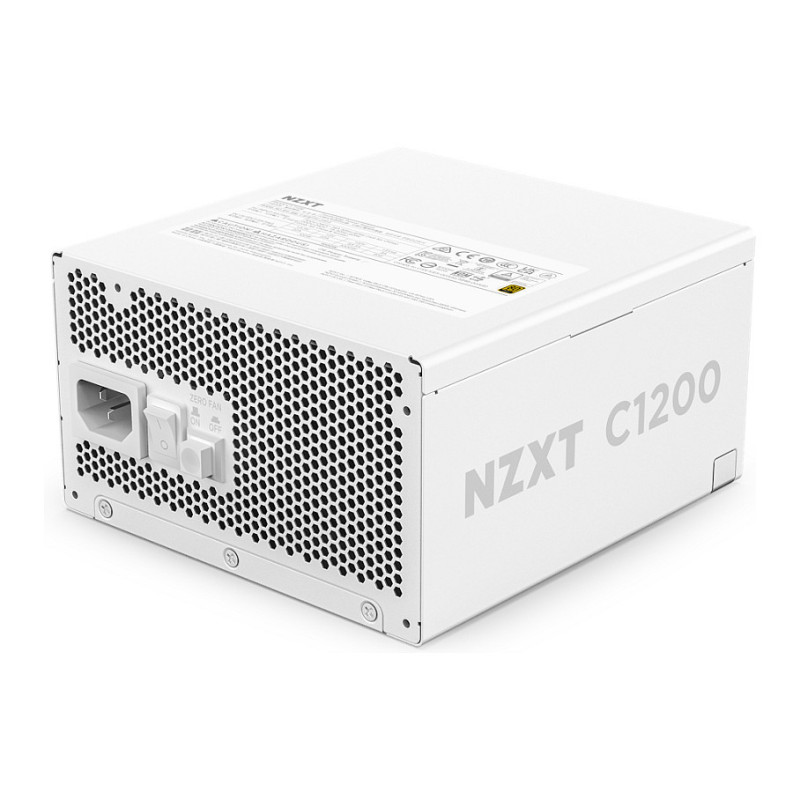

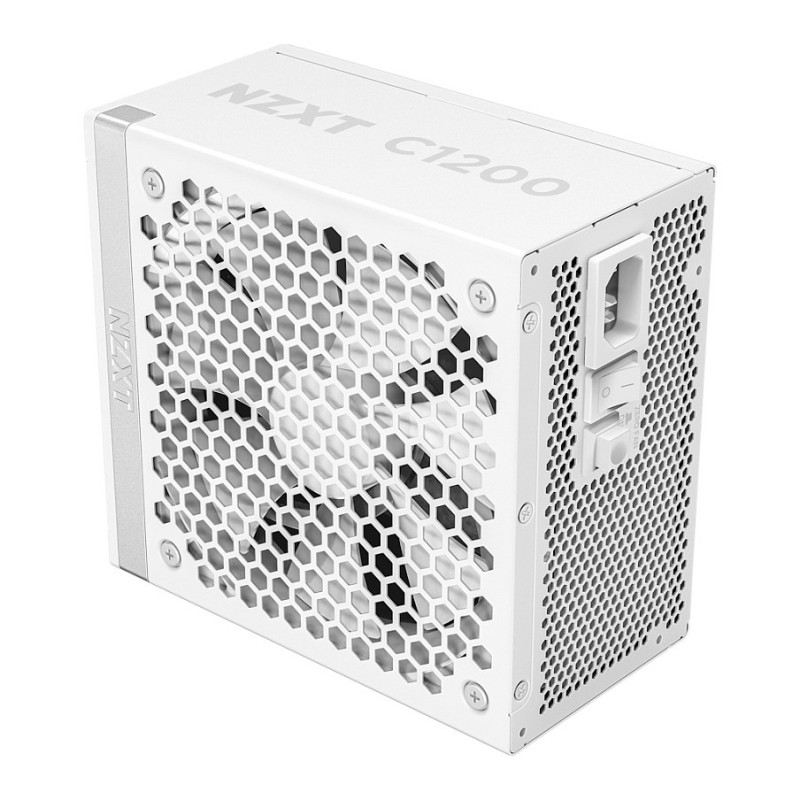

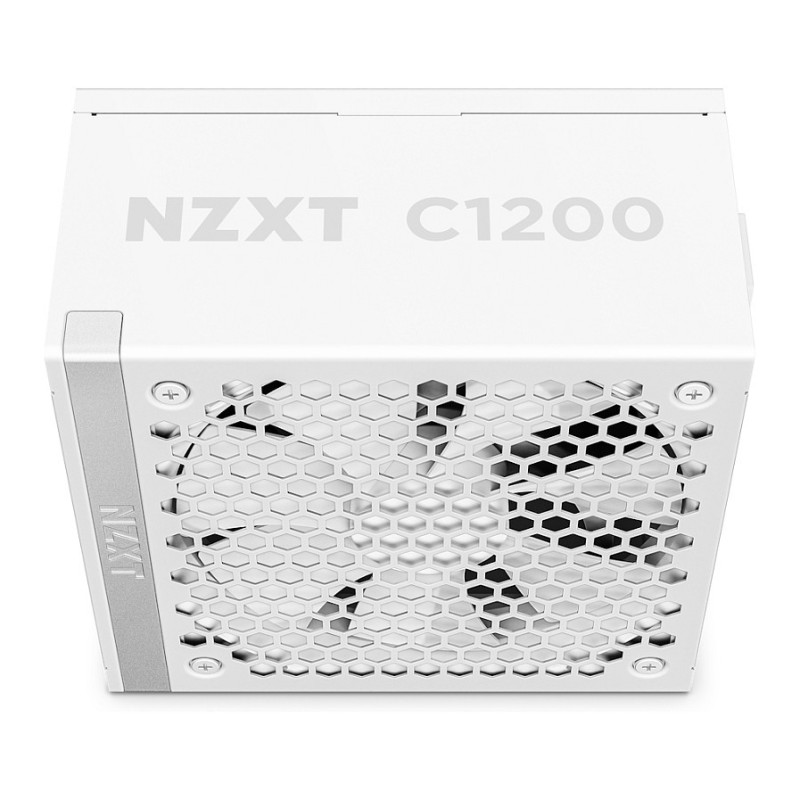

NZXT C1200 Gold ATX 3.1 power supply unit

NZXT C1200 Gold ATX 3.1. Total power: 1200 W, AC input voltage: 100 - 240 V, Input current: 7 - 14 A. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: White, Cooling type: Active, Fan diameter: 13.5 cm. Compliance certificates: BIS, BSMI, CCC, Federal Communications Commission (FCC), RCM, UKCA

1200 Watt 80 PLUS Gold Fully Modular ATX 3.1 PSU

Designed for maximum performance with minimal noise, NZXT C Series Gold ATX 3.1 PSUs are ready to fuel the demands of top-tier GPUs and CPUs.

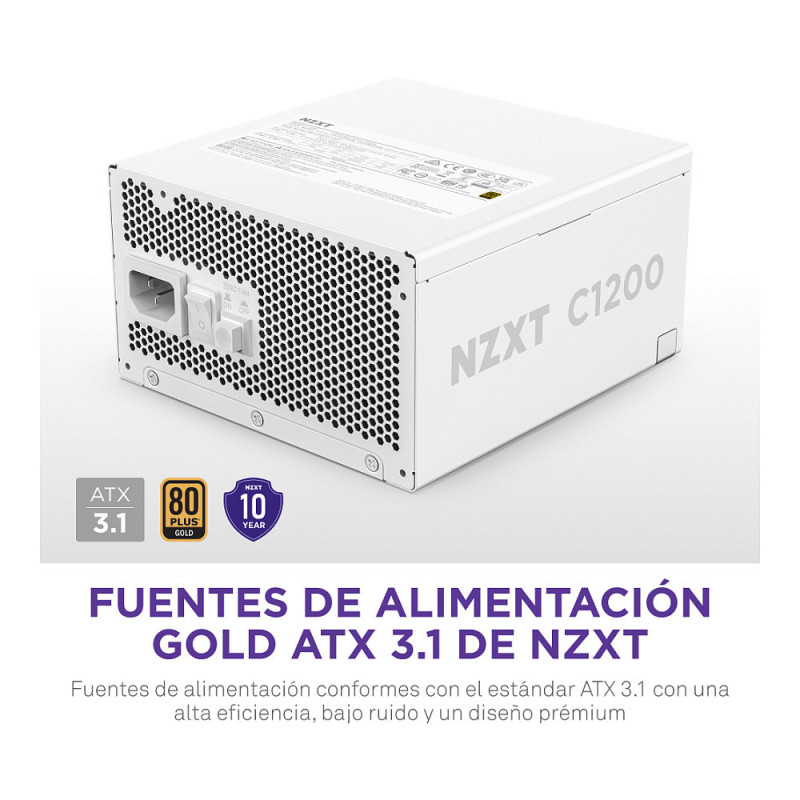

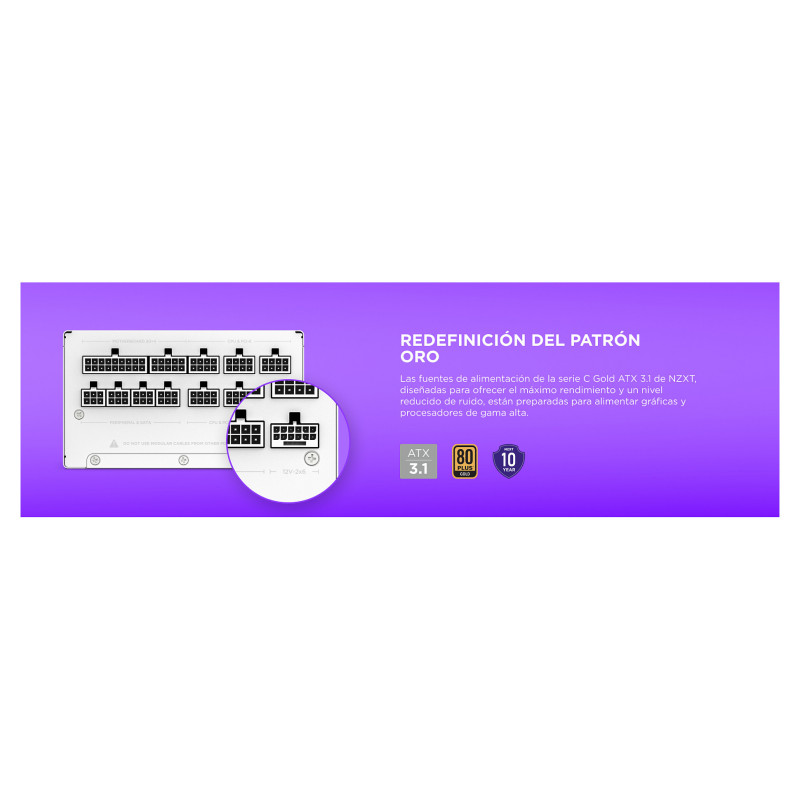

NZXT Gold ATX 3.1 PSU
ATX 3.1 compliant PSUs featuring high efficiency, low noise, and premium construction.

ATX 3.1 Compliant
ATX 3.1 powers high-performance components with stable delivery and improved efficiency.

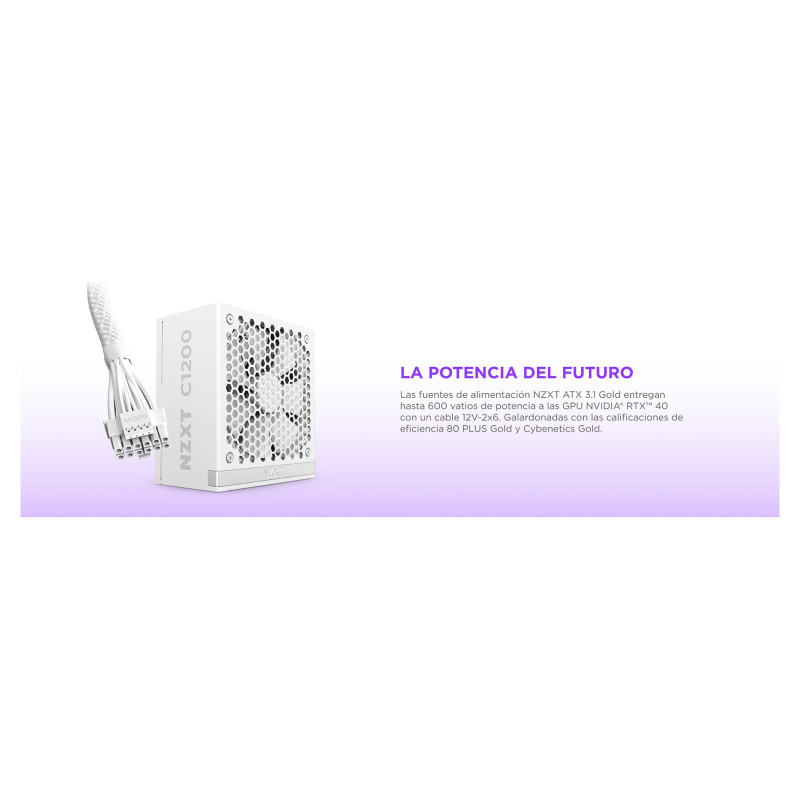

40 Series Ready
12V-2x6 cable delivers up to 600 watts of power to NVIDIA® GeForce RTX™ 40 Series GPUs.

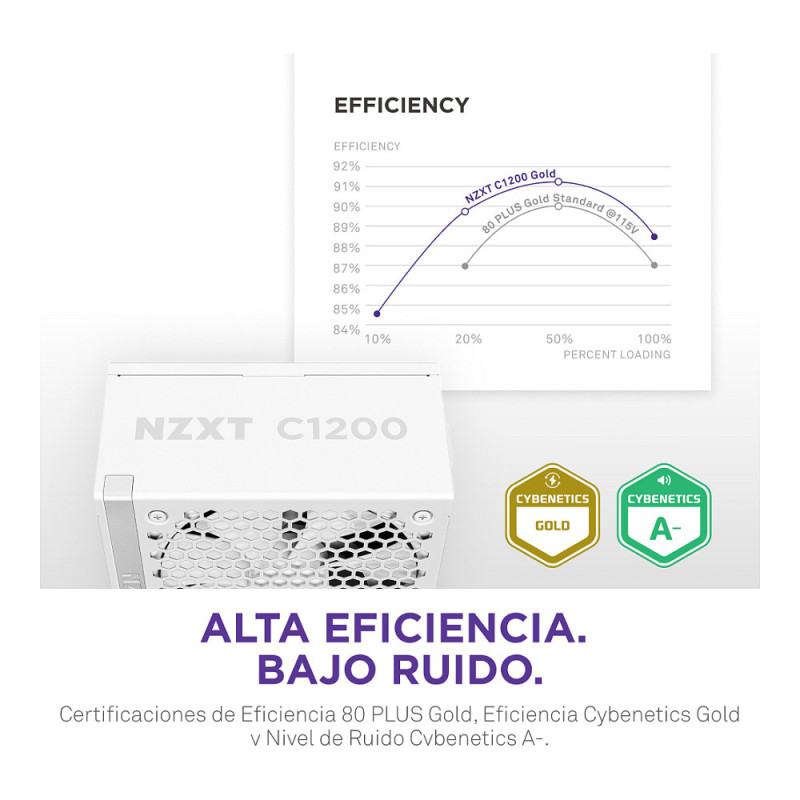

Certified for High Efficiency & Low Noise
80 PLUS Gold Efficiency, Cybenetics Gold Efficiency, and Cybenetics A- Noise Level Ratings.

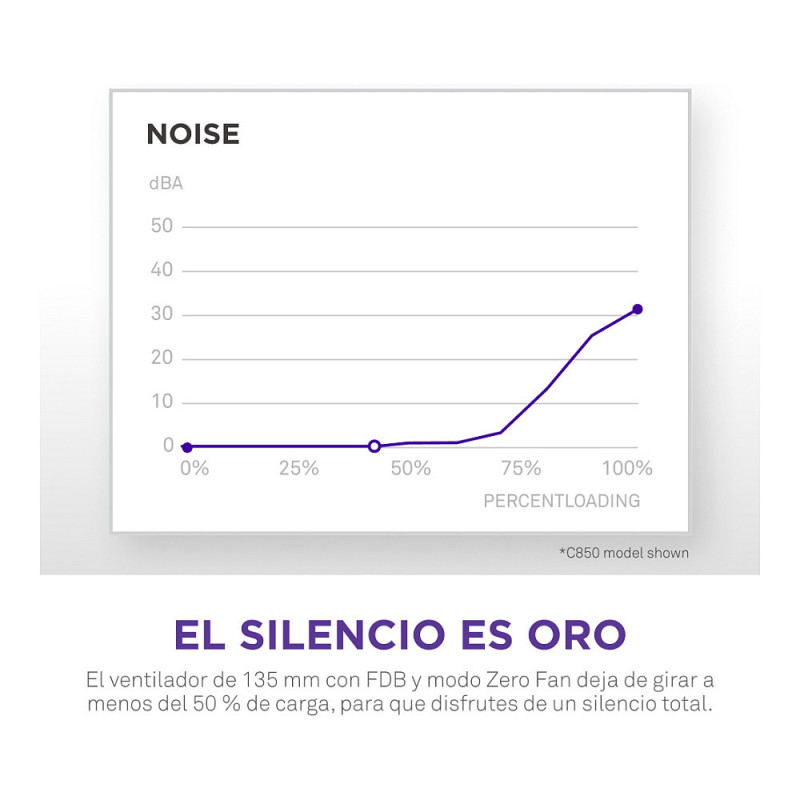

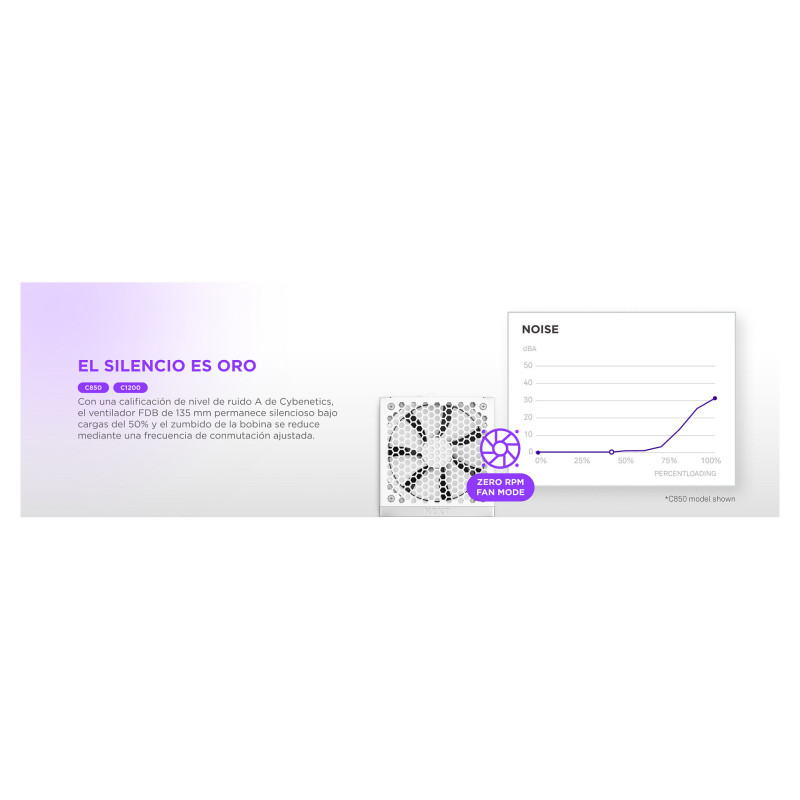

Silence is Golden
135mm FDB fan with Zero Fan Mode stops spinning under 50% load for total silence.

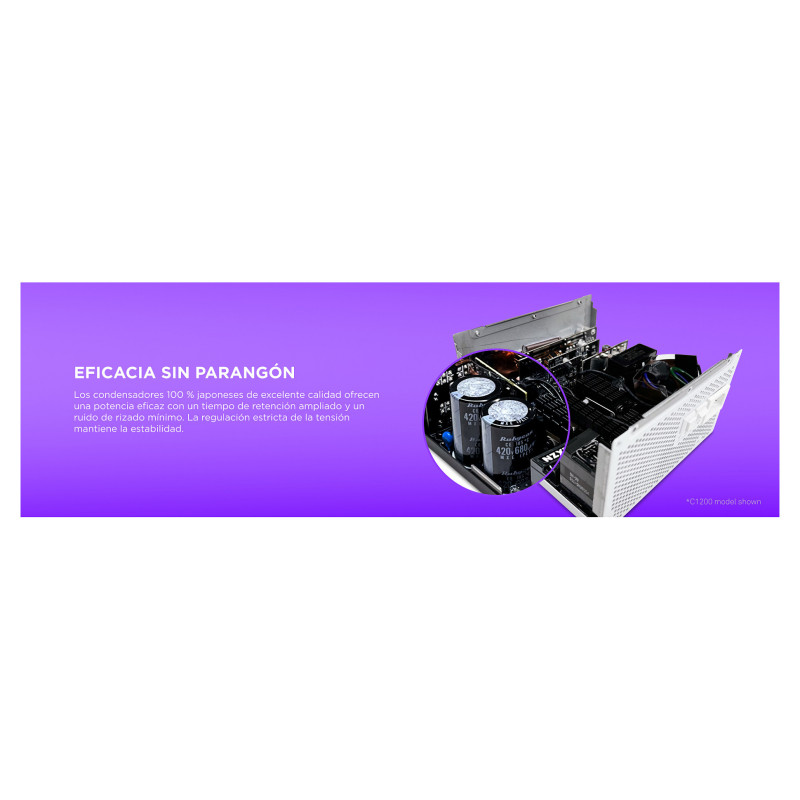

100% Japanese Capacitors
Improved hold-up time and reduced ripple noise for stable, reliable power delivery.

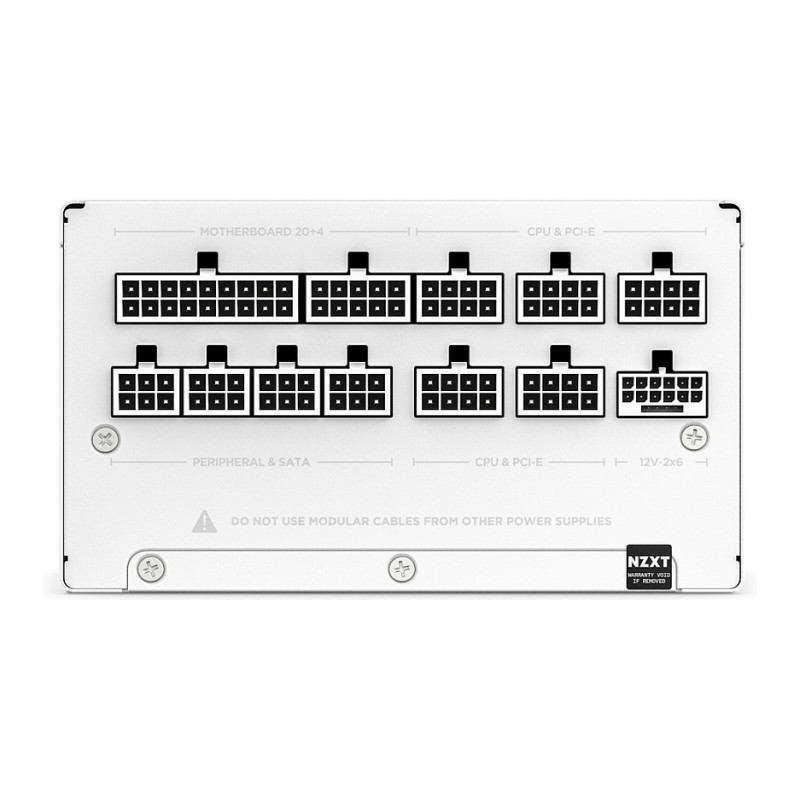

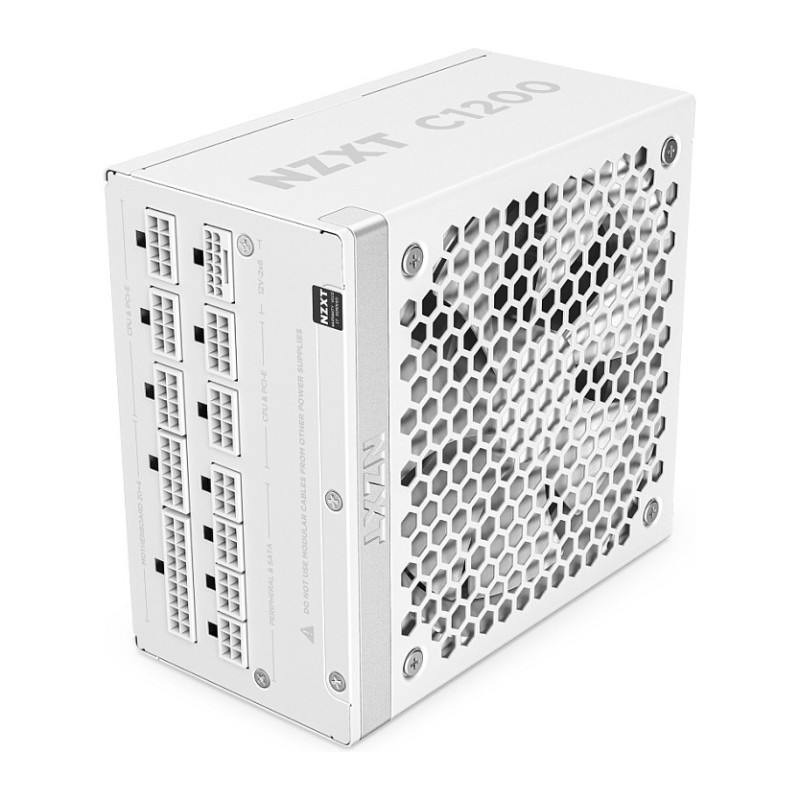

Fully Modular
Only connect the cables needed to keep a tidy build. Full cable set included.

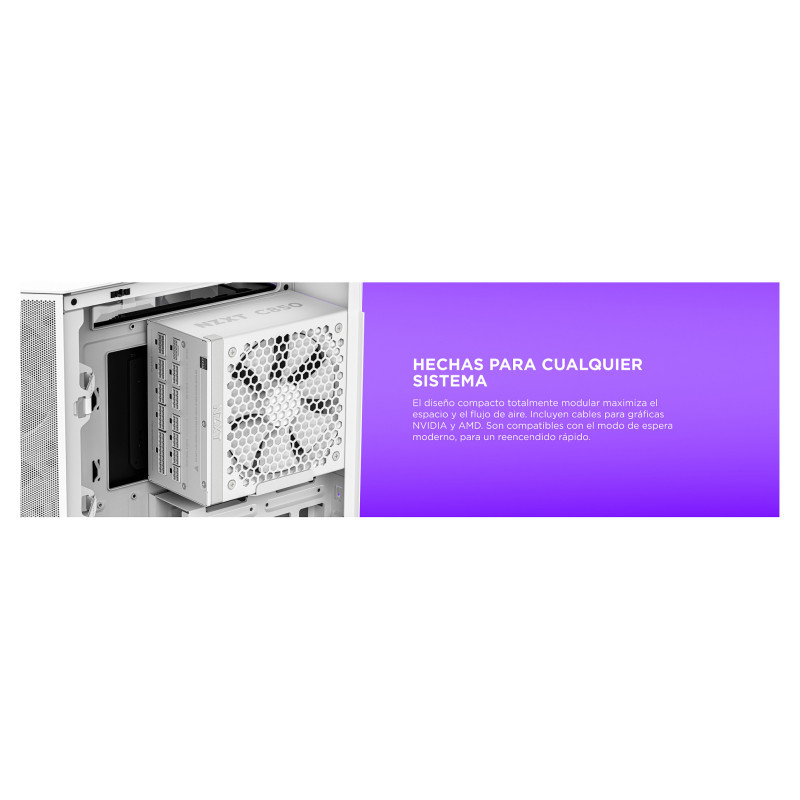

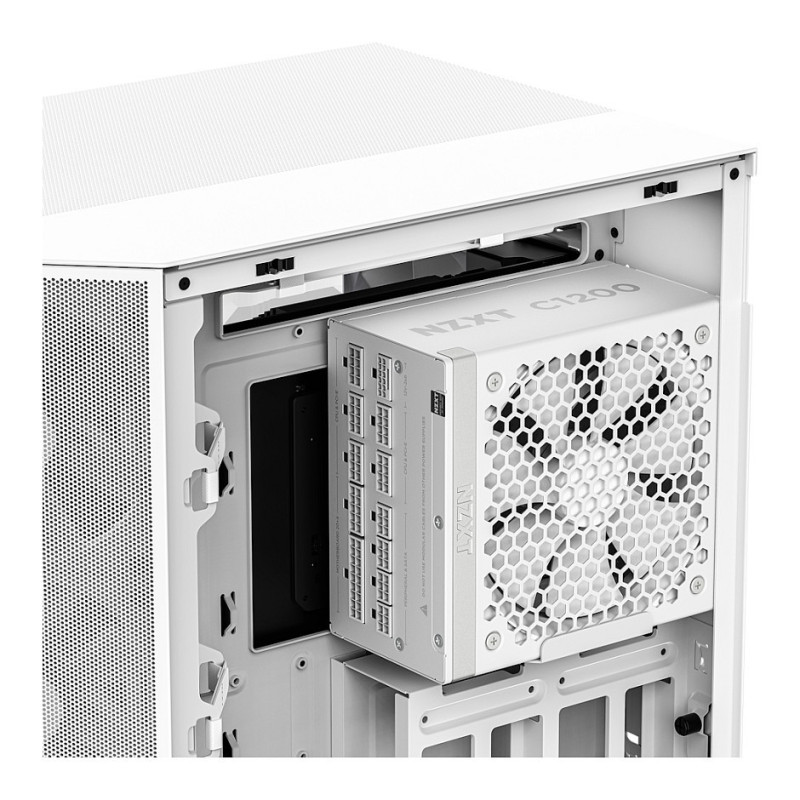

Space-Saving Size
Compact form factor frees up room for cable management and improved airflow.

Peace of Mind
Backed by a 10-year warranty and reliable customer support.

Power

Total power: 1200 W
AC input voltage: 100 - 240 V
Input current: 7 - 14 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 120 W
Combined power (+12V): 1200 W
Combined power (+5V): 15 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 22 A
Max output current (+12V): 100 A
Max output current (-12V): 0.3 A
Efficiency: 91.6%
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

Ports & interfaces

Motherboard power connector: 24-pin ATX
Motherboard power cable length: 60 cm
Number of SATA power connectors: 12
SATA power cable length: 150,500 mm
Peripheral (Molex) power connectors (4-pin): 4
Peripheral (Molex) power cable length: 150,500 mm
PCI Express power connectors (6+2 pin): 2
Feature: CPU power connector (4+4 pin)
Feature: ATX Power connector (24-pin)
Cabling type: Fully-Modular

Performance

80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
EPS version: 2.92
Noise level: 44.5 dB
Bearing technology: FDB
Mean time between failures (MTBF): 100000 h

Design

Product colour: White
Cooling type: Active
Fan diameter: 13.5 cm
Number of fans: 1 fan(s)
Fan speed: 0 - 2300 RPM
Fan location: Top
Feature: On/off switch

Operational conditions

Operating temperature (T-T): 0 - 50 °C

Certificates

Compliance certificates: BIS, BSMI, CCC, Federal Communications Commission (FCC), RCM, UKCA

Weight & dimensions

Width: 150 mm
Depth: 160 mm
Height: 86 mm

Logistics data

Warranty period: 10 year(s)
