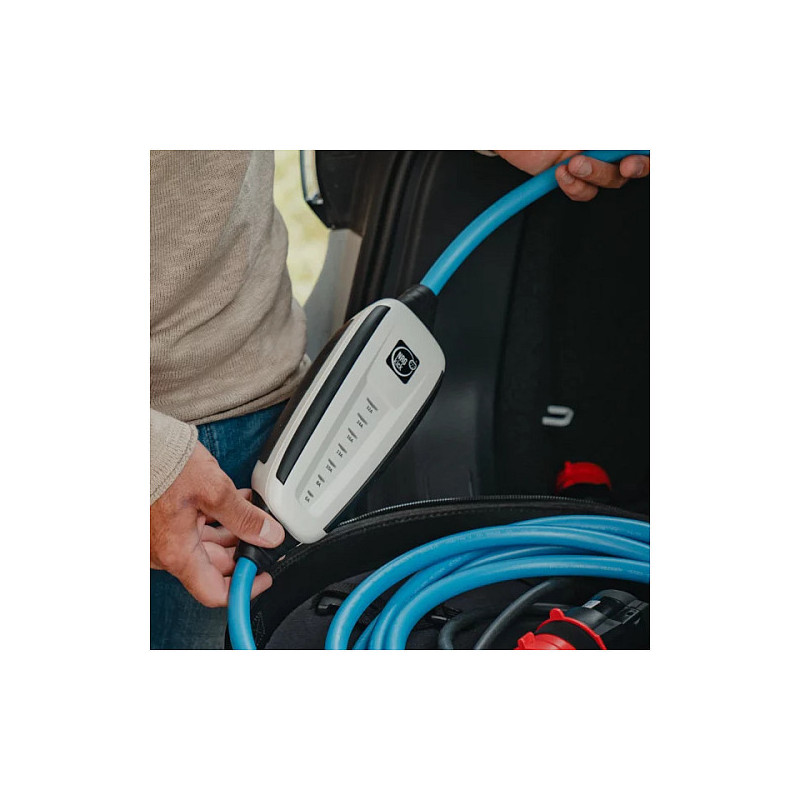

NRGkick 12601061 electric vehicle charging station

NRGkick 12601061. Product colour: Blue, Mounting type: Wall, LED indicators: Activity. Socket type: Type 2, Mechanical impact protection code: IK10, International Protection (IP) code: IP67, IP69K. Power source type: AC, Maximum charging power: 22000 W, Maximum operating power (three-phase): 22 kW. Charging cable length: 5 m

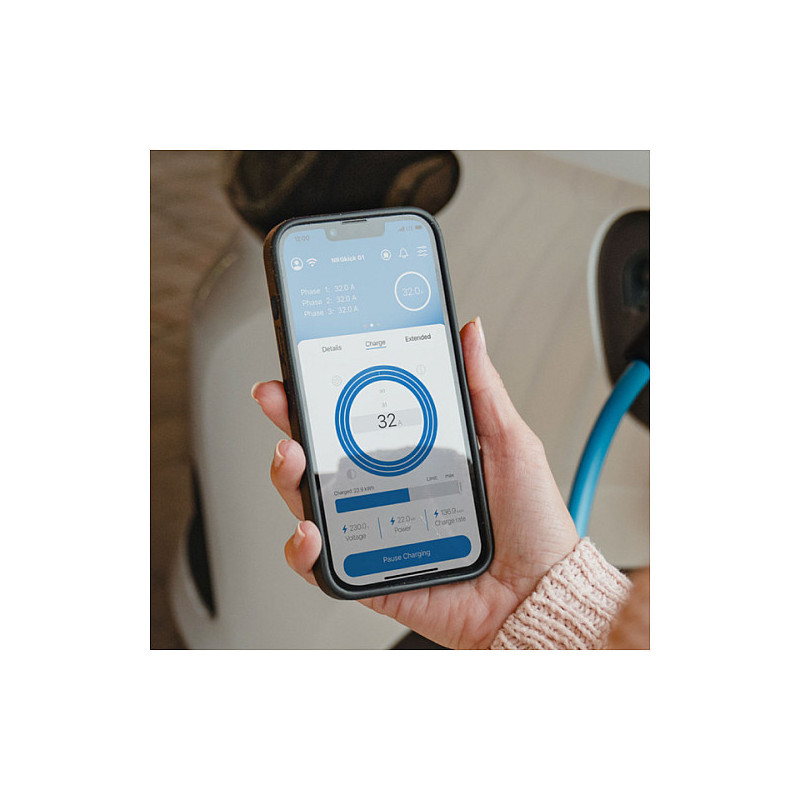

NRGkick 32A Set Optimal - charging power up to 22 kW. Includes Smart Attachments 32A 5pole, 16A 5pole, 16A 3pole, Type E+F "Schuko" 13A (EU) and practical NRGkick Transport Bag. Ready for immediate use, robust and safe - app and smart functions included. Smart Services like Photovoltaic-led charging and OCPP upgradeable at any time.

Design

Product colour: Blue
Mounting type: Wall
Built-in display: No
Integrated charging cable: Yes
LED indicators: Activity

Features

Wi-Fi: Yes
Bluetooth: Yes
Socket type: Type 2
SIM card support: Yes
Outlets with safety shutters: Yes
Over current protection: Yes
Mechanical impact protection code: IK10
International Protection (IP) code: IP67, IP69K

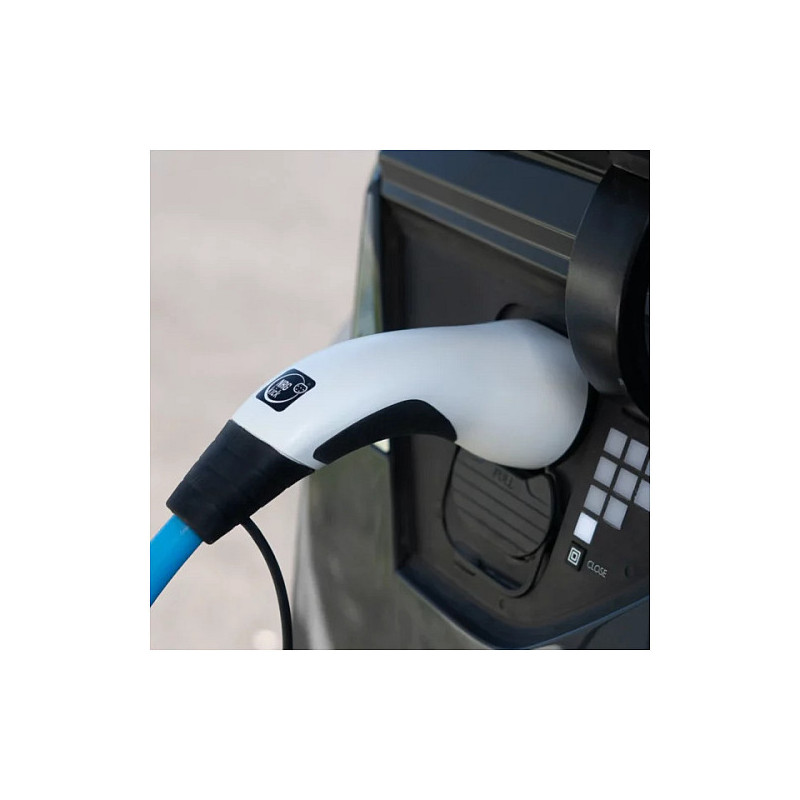

Vehicle connection plug: Type 2
Quantity per pack: 1 pc(s)

Power

Power source type: AC
Maximum charging power: 22000 W
Maximum operating power (three-phase): 22 kW
Number of phases: 3
Maximum operating current per phase: 32 A
Maximum operating current (three-phase): 32 A

Ports interfaces

Ethernet LAN: Yes

Operational conditions

Operating temperature (T-T): -40 - 70 °C

Weight dimensions

Charging cable length: 5 m
