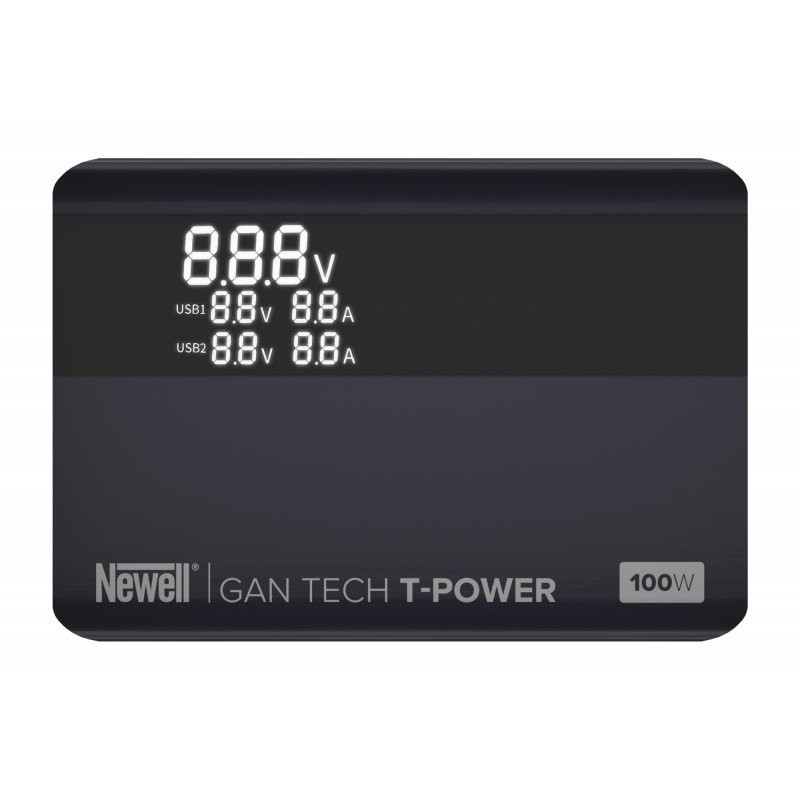

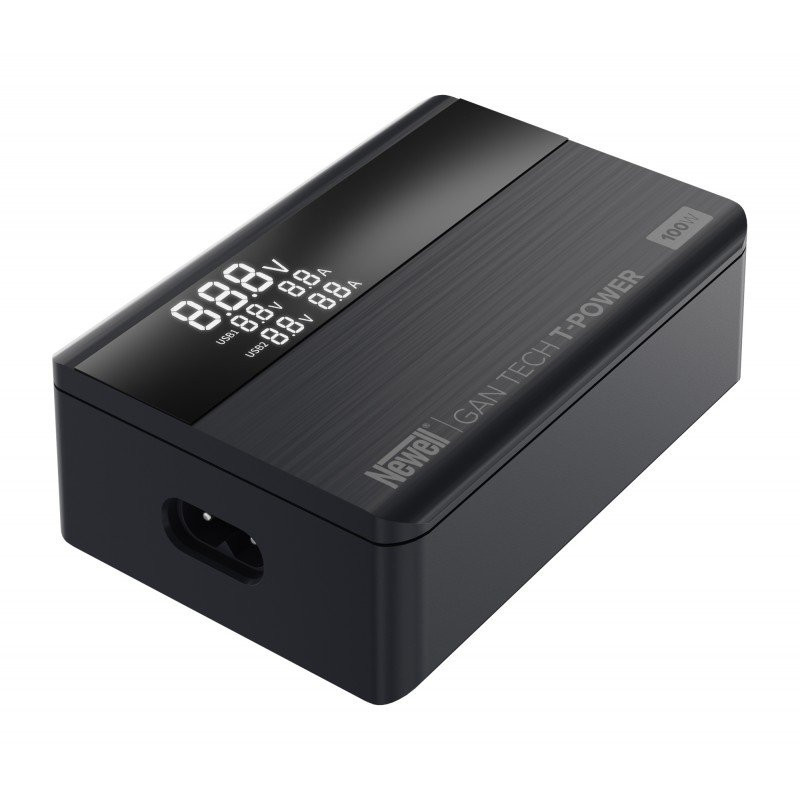

Newell GaN Tech T-power 100W mains charger

Newell GaN Tech T-power 100W network charger

Newell GaN Tech T-power 100 W is a modern network charger in which silicon components have been replaced with gallium nitride. As a result, it is smaller, faster and more efficient than previously known devices. The charger has 2 USB-C ports and 2 USB Type-A ports. There is also a backlit display that informs about the parameters of the charging process. The maximum power of the charger is up to 100 watts. This means that you will be able to quickly replenish energy not only in a smartphone or tablet, but also in a laptop. Fast charging times are ensured by Power Delivery and Qualcomm Quick Charge technologies. The device is also equipped with a number of protection measures that protect, among other things, ko from overheating, overcharging or overdischarging.

Specification

•


  model: Newell GaN Tech T-power 100 W





•


  color: black





•


  number of available ports: 4 (2 x USB-A, 2 x USB-C)





•


  input current: 100 - 240 V / 50-60 Hz / max. 2.0 A





•


  Max. output power:





  •


    USB-A 1 / USB-A 2: 30W





  •


    USB-C 1 / USB-C 2: 100W









•


  total power: 100 W





•


  Power depending on the ports used:





  •


    USB-C 1 + USB-C 2: 65W + 30W (max. 95W)





  •


    USB-C 1 + USB-C 2 + USB-A 1 + USB-A 2: 45W + 12W + 15W + 12W





  •


    USB-C 1 + USB-A 1: 65W + 30W (max. 95W)









•


  Output voltage/output current:





  •


    1 USB-C output: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A (max. 100W)





  •


    2 USB-C outputs: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A (max. 100W)





  •


    1 USB-A output: 4.5V / 5A, 5V / 4.5A, 5V / 3A, 9V / 3A, 12V / 2.5A, 20V / 1.5A (max. 30W)





  •


    USB-A 2 output: 4.5V / 5A, 5V / 4.5A, 5V / 3A, 9V / 3A, 12V / 2.5A, 20V / 1.5A (max. 30W)









•


  dynamic PPS charging: 3.3 - 21 V / 5 A





•


  Dimensions: 96 x 66 x 32 mm





•


  weight: 201 g




Kit contents

•


  Newell GaN Tech T-power 100W network charger





•


  power cable
