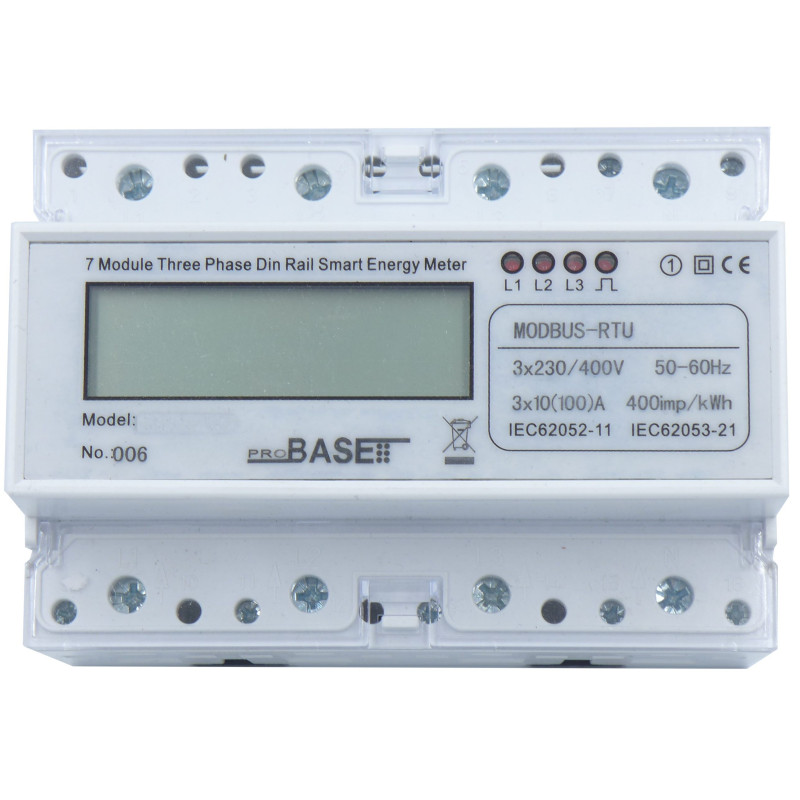

Multi-tariff, Two-way, 3-phase electricity meter with MODBUS, 100A, 7 DIN

Usage time, 4 tariffs, 8 time zones, 12 segments with clock and calendar
Bidirectional measurement - active energy and reverse active energy measurement
12-month historical Active energy consumption
RS485 Modbus RTU protocol, data transmission rate: 1200~9600bps
Voltage (V); Current (A); Frequency (Hz); Power (KW); Power Factor (COS)
Maximum current 100A
Accuracy Active 1.0
Nominal voltage AC 3x220/380V
Power consumption 1W / 10VA per phase
Pulse constant 400imp/kWh
Operating temperature -10°C ~ +60°C
Display: LCD display 6+2 digits
Installation 35 mm Din rail mounting
Meter body: ABS/PC flame retardant, environmentally friendly material
Dimensions: width 125 mm, length 88 mm, height 68 mm
Approved by international standard IEC62052-11, IEC62053-21
