MSI MPG A1000G PCIE5 power supply unit

MSI MPG A1000G PCIE5. Total power: 1000 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 500,650,700,850 mm. Purpose: PC/Server, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Width: 150 mm, Depth: 150 mm, Height: 86 mm

GO AHEAD, POP YOUR STYLE
The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.

The MPG power supply showcases unique styles and color schemes with laser-like lines to create a masterful art piece with indivuality, fully expressing the charm of MPG.

ATX 3.0 compatible
It has an output port that is compliant with PCIe 5.0 and Intel PSDG (Power Supply Design Guide) ATX 3.0, also the power supply can hold up to 2x total power excursion and 3x GPU power excursion.

level up your GAME
With native 16 PIN PCIe connector the power supply is ready for Nvidia® GeForce RTX® 40 Series graphics cards. It can freely pipe up to 600W of power to PCIe 5.0 graphics cards.

80 PLUS GOLD CERTIFIED
The efficiency of your power supply directly influences your system's performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.

SINGLE-RAILED DESIGN
The single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, this power supply's 5 CPU & PCI-E slots are more than plenty.

GPU SUPPORT FOR ALL
The gaming power supply can support the NVIDIA and AMD graphics cards. Prepared for the highest of requirements, the MPG power supply's IO supports can support different and versatile ways of connection according to the power connector design of different graphics cards.

100% JAPANESE 105°C CAPACITORS
Aiming for unwavering product quality and performance stability, this power supply comes with 100% Japanese 105° C capacitors and solid capacitors.

FULLY MODULAR

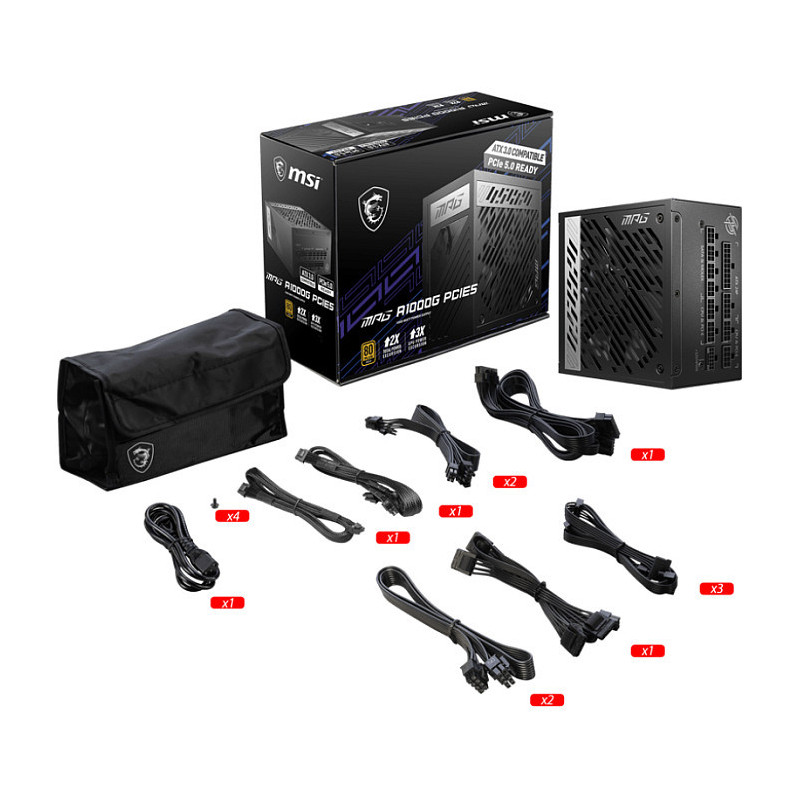

The power supply's fully modular design means that only the connectors required by the build need to be used, significantly reducing cable clutter and simplifying the system's overall build.

COMPACT SIZING
Smaller than typical PSUs on the market, the power supply's compact sizing makes it an excellent fit for most PC cases.

ALL THE MORE ORGANIZED
All of the power supply's cables are flat and in black. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow. Use the cables you need, and store the rest in the included cable bag.

Power

Total power: 1000 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 120 W
Combined power (+12V): 1000 W
Combined power (+5V): 120 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 22 A
Max output current (+12V): 83.5 A
Max output current (+5V): 22 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Efficiency: 90%
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

Ports & interfaces

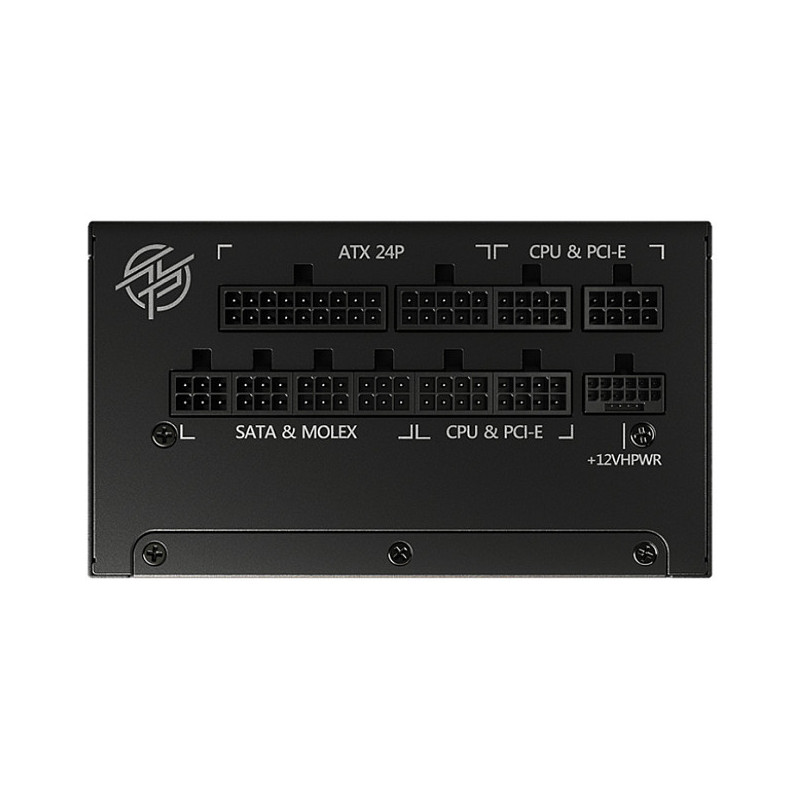

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 60 cm
Number of SATA power connectors: 12
SATA power cable length: 500,650,700,850 mm
Peripheral (Molex) power connectors (4-pin): 4
Peripheral (Molex) power cable length: 1100,500,650,700,850 mm
Feature: EPS power connector (4+4 pin)
PCI Express power connectors (6+2 pin): 6
PCI Express power connectors (16-pin): 1
PCI Express power cable length: 75 cm
Feature: Floppy disk drive connector
Feature: PCI Express connector
Cabling type: Fully-Modular

Performance

80 PLUS certification: 80 PLUS Gold
Purpose: PC/Server
Power supply unit (PSU) form factor: ATX
ATX version: 3.0
Bearing technology: FDB

Design

Product colour: Black
Cooling type: Active
Fan diameter: 13.5 cm
Number of fans: 1 fan(s)

Weight & dimensions

Width: 150 mm
Depth: 150 mm
Height: 86 mm

Other features

EPS cable length: 70 cm
